Electric Cooling Fan Installation

CAUTION: Be careful to seat the mounting post on the fan shroud into the socket at the radiator left tank. Be sure to slip the tap at the bottom edge of the shroud into the retaining clip near the center of the radiator.

Install the fan shroud assembly to the radiator.
Secure the shroud to the top of the radiator with the mounting bolts.
Tighten:

Tighten the fan assembly mounting bolts to 4 N.m (35 lb-in.).

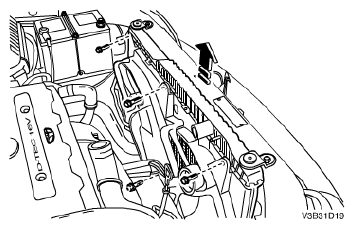

Fig 1: Removing Fan Shroud Assembly Upward
Courtesy of SUZUKI OF AMERICA CORP.
Connect the cooling fan electrical connector.

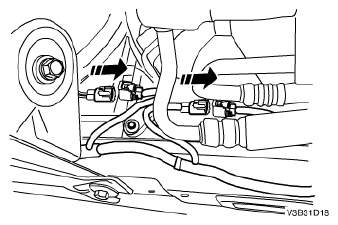

Fig 2: Connecting Cooling Fan Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Connect the upper radiator hose.

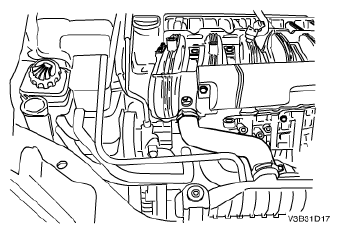

Fig 3: Identifying Upper Radiator Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install the air cleaner inlet hose.
Install the air cleaner inlet hose bolts.
Tighten:

Tighten the air cleaner inlet hose bolts to 6 N.m (53 lb-in.).
Connect the negative battery cable.

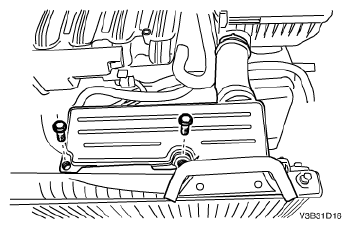

Fig 4: Removing/Installing Air Cleaner Inlet Hose Bolts
Courtesy of SUZUKI OF AMERICA CORP.
