Exhaust EGR Pipe Removal

  1. Remove the exhaust EGR pipe flange-to-EGR valve retaining bolts.
  2. Remove the exhaust pipe bracket-to-cylinder head long side retaining bolt.
  3. Remove the exhaust EGR pipe gasket.

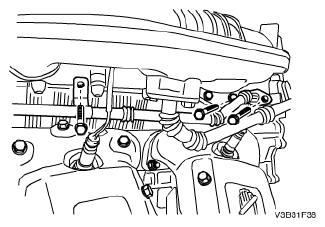

    Fig 1: Removing/Installing Exhaust EGR Pipe Flange-To-EGR Valve Retaining Bolts
    G04718808Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the exhaust EGR pipe-to-heater adapter retaining nuts.
  5. Remove the exhaust pipe bracket-to-cylinder head short side retaining bolt.
  6. Remove the exhaust EGR pipe gasket.

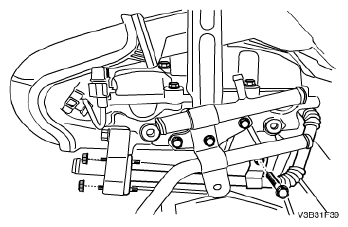

    Fig 2: Identifying Exhaust EGR Pipe-To-Heater Adapter Retaining Nuts
    G04718809Courtesy of SUZUKI OF AMERICA CORP.
