Tachometer Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. Refer to Instrument Cluster Removal .
  3. Press the clips down and remove the instrument cluster lens.
    Fig 1: Identifying Instrument Cluster And Screws
    G04720372Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the tachometer from the instrument cluster.

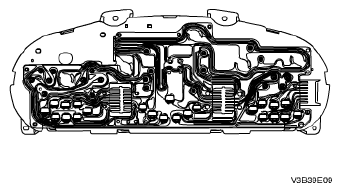

    Fig 2: Identifying Tachometer & Instrument Cluster
    G04720381Courtesy of SUZUKI OF AMERICA CORP.
