Instrument Cluster Installation

  1. Install the instrument cluster with the screws.

    Tighten:

    Tighten the instrument cluster screws to 2 N.m (18 lb-in.).

  2. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation .

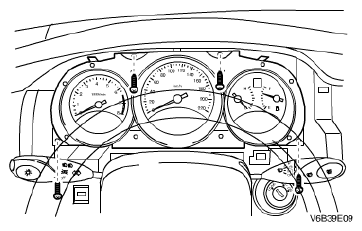

    Fig 1: Identifying Instrument Cluster And Screws
    G04720372Courtesy of SUZUKI OF AMERICA CORP.
