Antilock Braking Mode Description: Release

If during the pressure hold mode the EBCM (Electronic Brake Control Module) still senses wheel slip, the EBCM will decrease the pressure to the affected wheel(s). The NO valve is left closed and the NC valve is opened. The excess fluid/pressure is temporary stored into an accumulator within the brake pressure modulator valve, until the pump can return the fluid to the master cylinder reservoir.

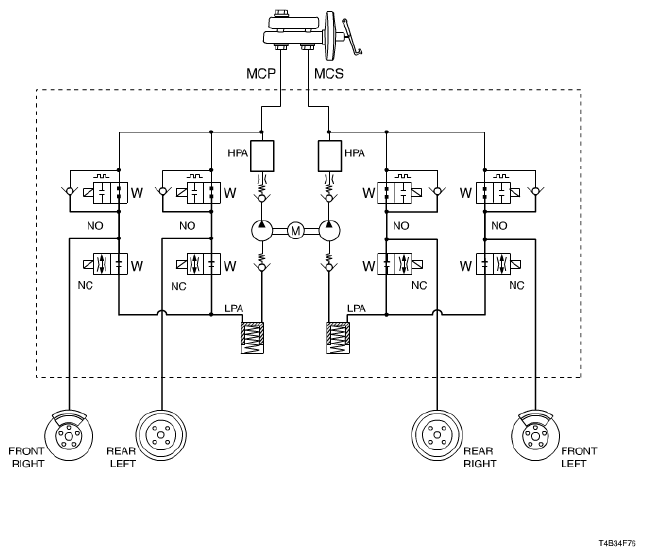

Fig 1: Identifying Antilock Braking Mode - Release
G04719525Courtesy of SUZUKI OF AMERICA CORP.
