Steering Wheel Removal

Tools Required:

KM-210-A Steering Wheel Puller

1. Disconnect the negative battery cable.
2. Remove the SIR module. Refer to DRIVER AIRBAG MODULE REMOVAL .
3. Remove the steering wheel nut and the retaining clip.

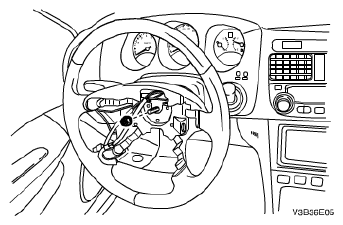

   Fig 1: Identifying Steering Wheel Nut And Retaining Clip

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the steering wheel using the steering wheel puller KM-210-A.
   CAUTION: In order to install the steering wheel correctly, match-mark the steering column shaft to the steering wheel.
5. Unclip the contact ring from the steering wheel, if necessary.

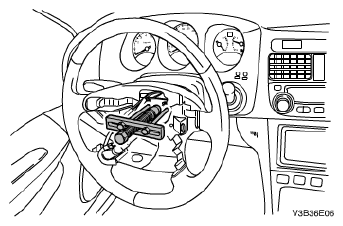

   Fig 2: Identifying Steering Wheel Puller

   Courtesy of SUZUKI OF AMERICA CORP.
