Steering Wheel Installation

  1. Clip the contact ring on the steering wheel, if necessary.
  2. Align the match marks on the steering wheel and the steering column shaft. Turn the signal canceling cam on the wheel to the left.
    CAUTION: In order to correctly install the steering wheel, match-mark the steering column shaft to the steering wheel.
  3. Install the retaining clip and the steering wheel nut.

    Tighten:

    Tighten the steering wheel nut to 38 N.m (28 lb-ft).

  4. Bend the tabs to secure the retaining clip.
  5. Install the SIR module. Refer to DRIVER AIRBAG MODULE INSTALLATION .
  6. Connect the negative battery cable.

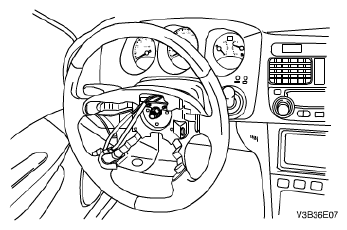

    Fig 1: Identifying Steering Wheel Nut And Negative Battery Cable
    G04719878Courtesy of SUZUKI OF AMERICA CORP.
