Center Member Installation

Install the center member with the bolts (center member-to-radiator bolt shown).
Tighten:
- Tighten the center member-to-crossmember bolt to 90 N.m (66 lb-ft).
- Tighten the center member-to-radiator bolt to 90 N.m (66 lb-ft).

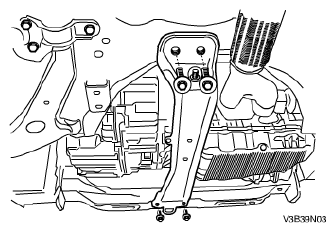

  Fig 1: Identifying Center Member With Bolts
  Courtesy of SUZUKI OF AMERICA CORP.
Install the rear engine mount through-bolt.
Tighten:

Tighten the rear engine mount through-bolt to 80 N.m (59 lb-ft).
Install the forward engine mount through-bolt.
Tighten:

Tighten the forward engine mount through-bolt to 80 N.m (59 lb-ft).
Install the power steering return line to its original position and install the bolts.
Install the engine under covers. Refer to Engine Under Covers Installation .
Tighten:

Tighten the power steering return pipe fixing bolts to 7 N.m (62 lb-in.).

Fig 2: Identifying Forward Engine Mount Through-Bolt
Courtesy of SUZUKI OF AMERICA CORP.
