Luggage Compartment Lock Cylinder Installation

  1. Install the luggage compartment lock cylinder.
  2. Connect the electrical connector.
  3. Connect the lock rod.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  4. Secure the luggage compartment lock cylinder with the bolt.

    Tighten:

    Tighten the luggage compartment lock cylinder bolt to 8 N.m (71 lb-in.).

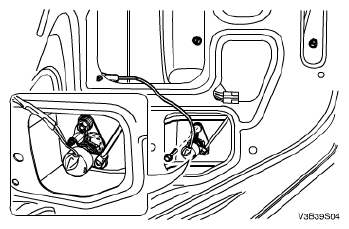

    Fig 1: Identifying Luggage Compartment Lock Cylinder
    G04720493Courtesy of SUZUKI OF AMERICA CORP.
