Windshield Washer Hoses Installation

  1. Connect the washer hose to the washer pump.
  2. Install the front wheel well splash shield. Refer to FRONT WHEEL WELL SPLASH SHIELD INSTALLATION .
  3. Install the right front wheel. Refer to WHEEL INSTALLATION .
  4. Connect the windshield washer hose to the washer nozzles on the hood.
  5. Close the hood.

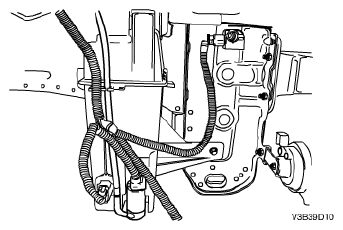

    Fig 1: Identifying Windshield Washer Hoses
    G04720423Courtesy of SUZUKI OF AMERICA CORP.
