Ignition Switch Keyhole Lamp Removal

Disconnect the negative battery cable.
Remove the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER REMOVAL .
Remove the instrument cluster trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL REMOVAL .

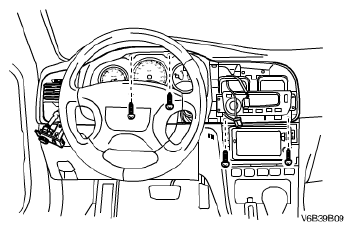

Fig 1: Identifying Instrument Cluster Trim Panel & Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove the steering column upper, lower cover.
Remove the nuts and the bolts securing the steering column.
Disconnect the steering column electrical connector.
Lower the steering column.

Fig 2: Identifying Steering Column Upper, Lower Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screw and the head amp (IMMO demodulator).
Remove the ignition switch keyhole lamp and the bulb.

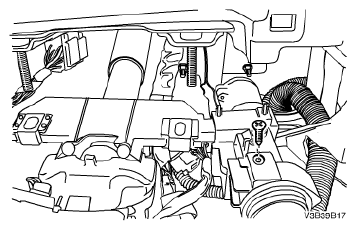

Fig 3: Identifying Ignition Switch Keyhole Lamp And Bulb
Courtesy of SUZUKI OF AMERICA CORP.
