Cruise Control Switch Installation

  1. Install the cruise control switch.

    Tighten:

    Tighten the cruise control switch screw to 2.5 N.m (22 lb-in.).

  2. Install the SIR module.
  3. Install the audio remote controller.
  4. Install the cruise control switch cover.

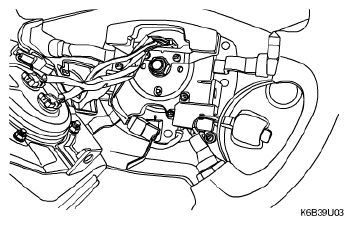

    Fig 1: Identifying Cruise Control Switch Cover
    G04720273Courtesy of SUZUKI OF AMERICA CORP.
