Head Amp (IMMO Demodulator) Removal

Disconnect the negative battery cable.
Remove the knee bolster.
Remove the instrument cluster trim panel.

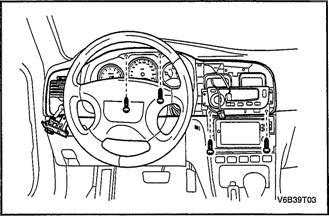

Fig 1: Identifying Instrument Cluster Trim Panel
Courtesy of SUZUKI OF AMERICA CORP.
Remove the steering column upper and lower cover.
Remove the nuts and the bolts securing the steering column.
Disconnect the steering column electrical connector.
Lower steering column.

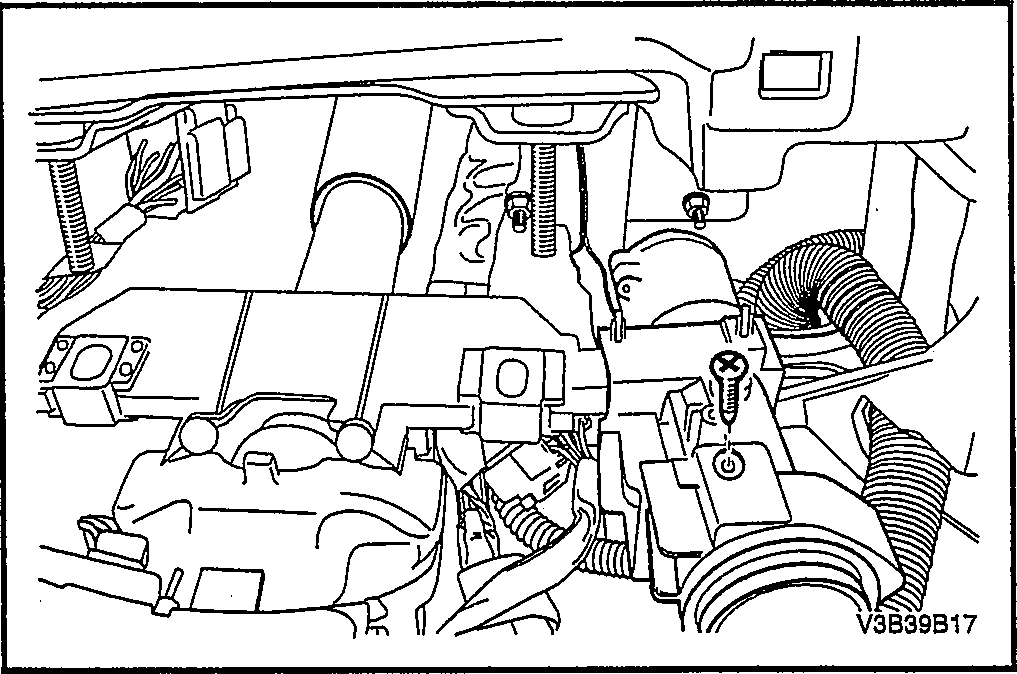

Fig 2: Lowering Steering Column
Courtesy of SUZUKI OF AMERICA CORP.
Remove the screw and the head amp (IMMO demodulator).

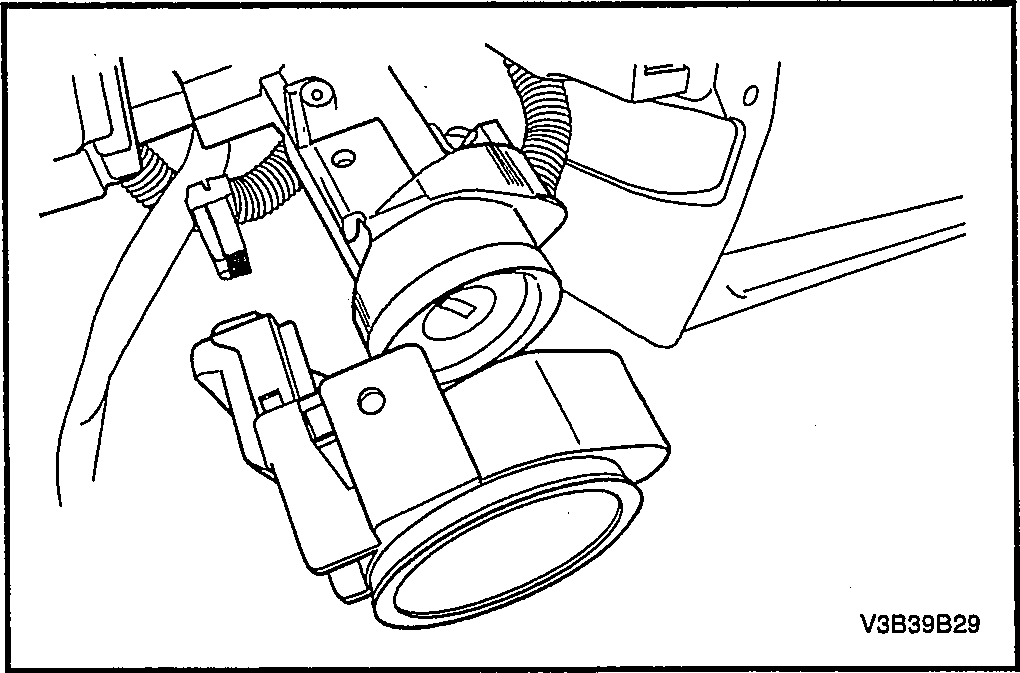

Fig 3: Identifying Head Amp
Courtesy of SUZUKI OF AMERICA CORP.
