Installation Procedure

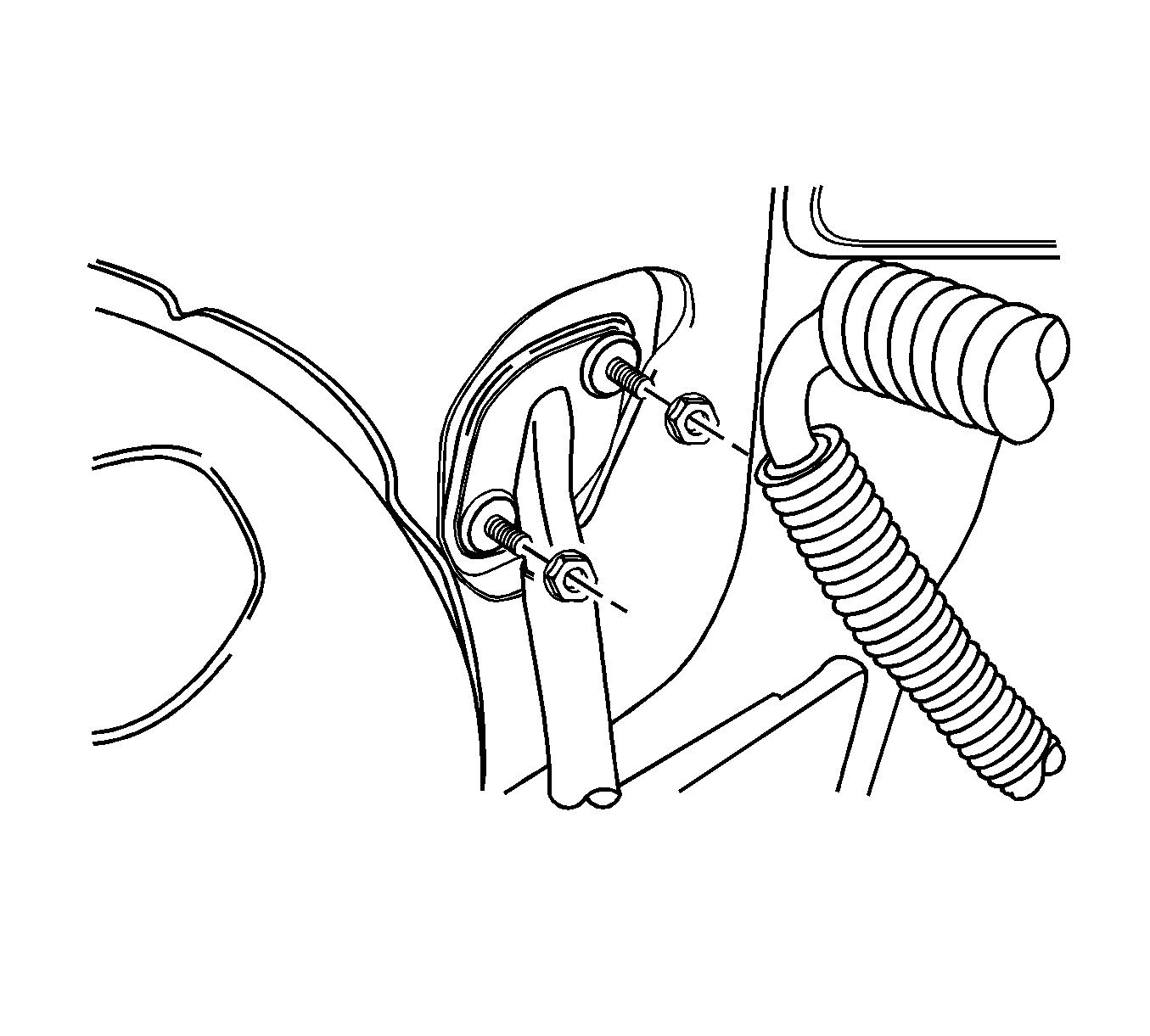

    Fig 1: Clutch Control Cable & Cowl Mounting Nuts
    GM1375556Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the clutch control cable to cowl and install the clutch control cable mounting nuts.

    Tighten:  Tighten the nuts 13 N.m (115 lb in).

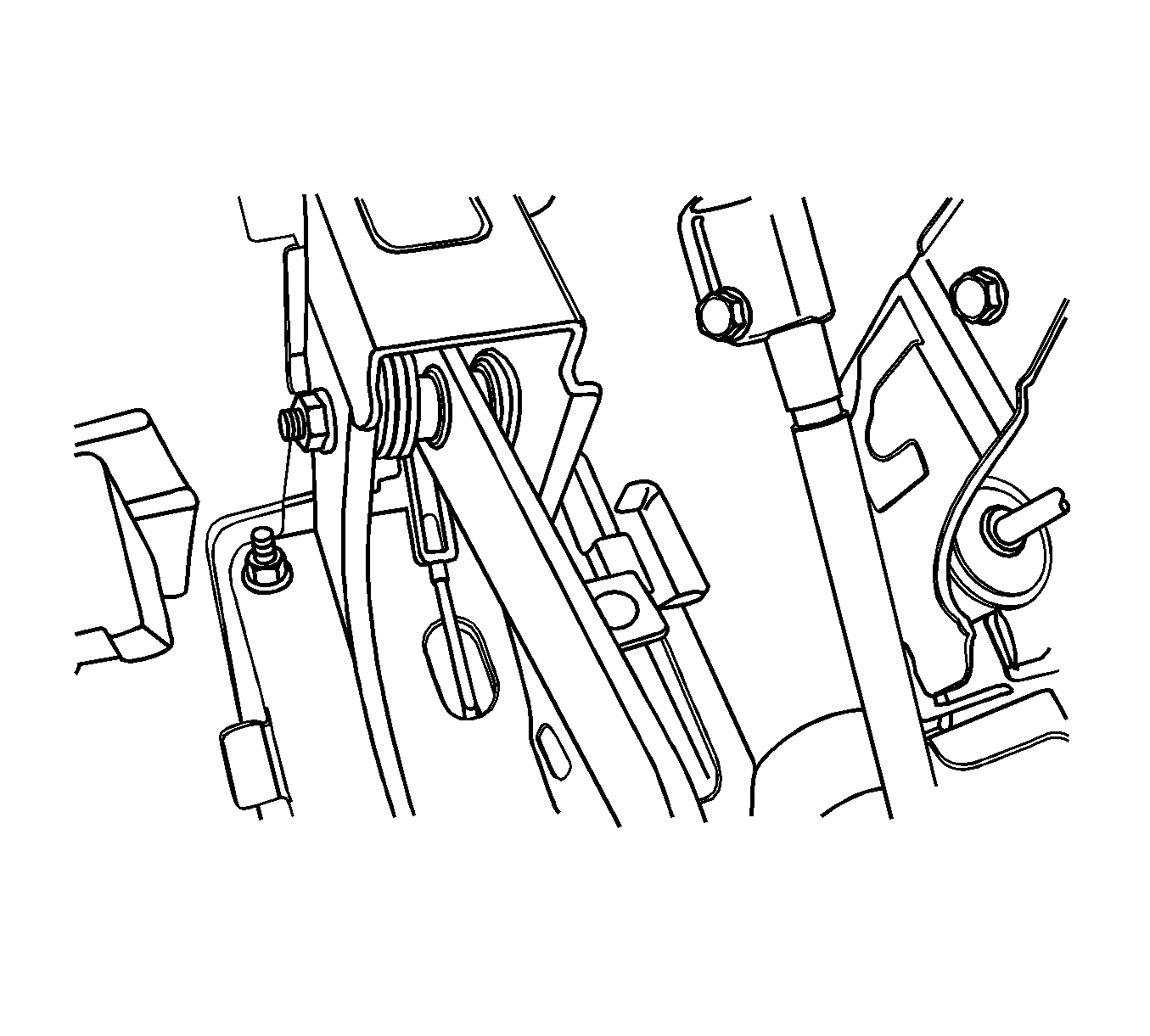

    2. Fig 2: Clutch Control Cable & Clutch Pedal
    GM1375555Courtesy of GENERAL MOTORS CORP.
  2. Install the battery.
  3. Connect the clutch control cable to the clutch pedal.

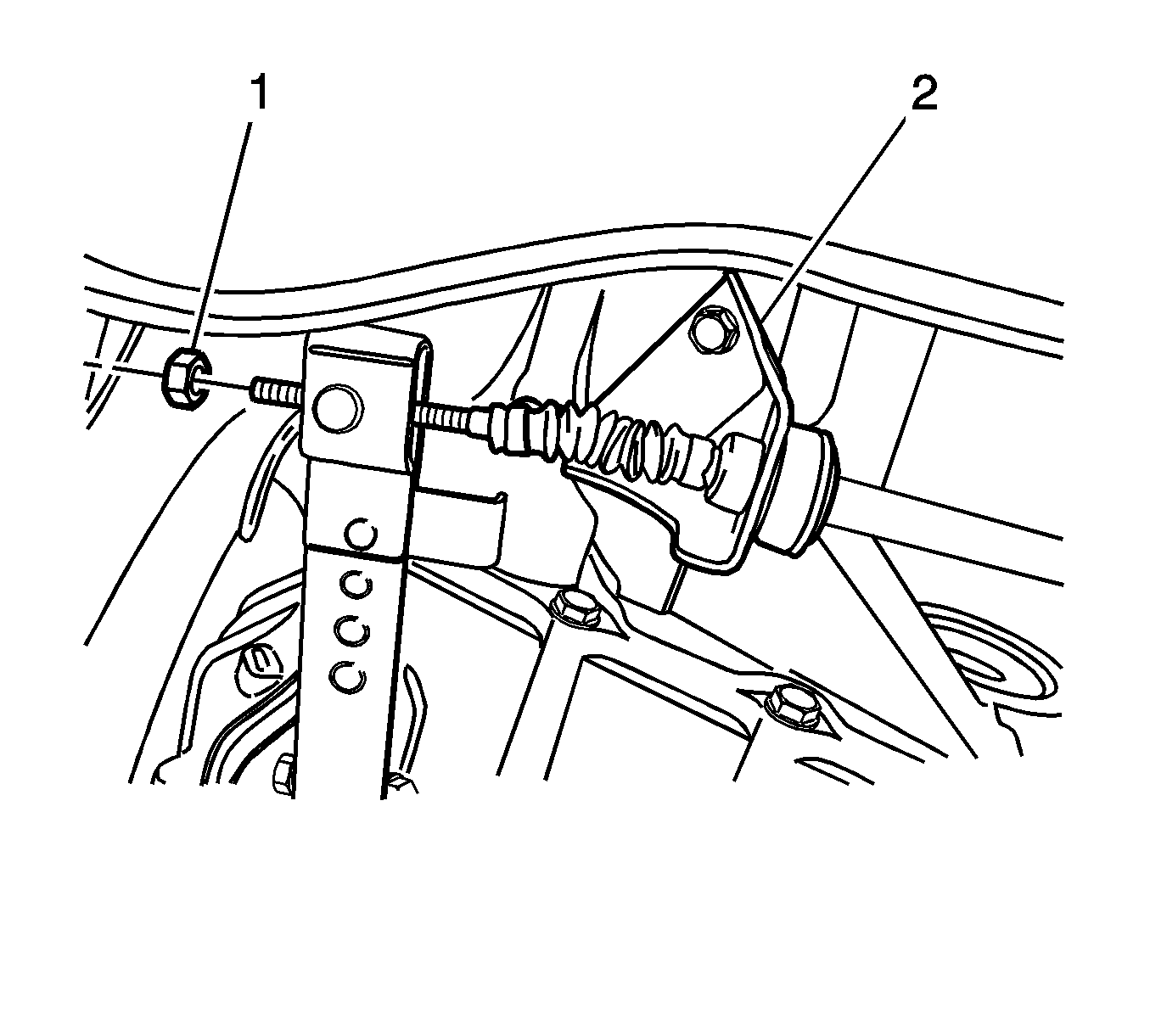

    4. Fig 3: Cable Adjust Nut & Clutch Cable
    GM1291936Courtesy of GENERAL MOTORS CORP.
  4. Install the clutch control cable tot he mounting bracket (2).
  5. Install the clutch control cable-adjusting nut (1).
  6. Adjust the clutch control cable.
