Tools Required

J 22912-01  Universal Bearing Puller. See Special Tools .

Fig 1: Detent Screw & Input Driveshaft
Courtesy of GENERAL MOTORS CORP.
1. Remove the detent screw at the end of the input driveshaft.

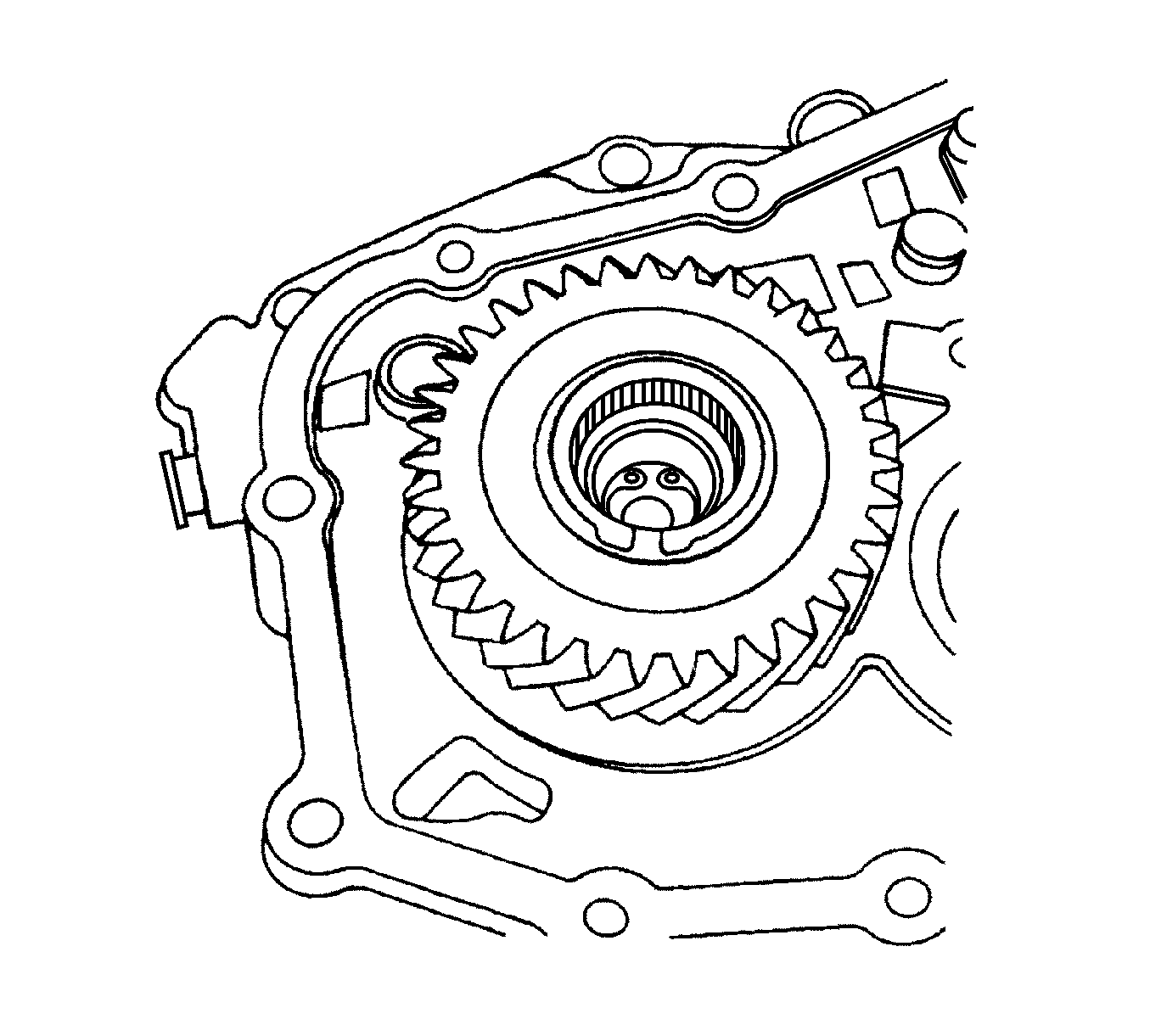

Fig 2: Snap Ring & Gear Cluster
Courtesy of GENERAL MOTORS CORP.
2. Remove the snap ring at the base of the gear cluster.
Fig 3: Input Driveshaft Cluster Gear & J 22912-01
Courtesy of GENERAL MOTORS CORP.
3. Press the input driveshaft from the input shaft cluster gear using the J 22912-01  (1). See Special Tools .
Fig 4: Cluster Shaft Bearing & J 22912-01
Courtesy of GENERAL MOTORS CORP.
4. Remove the cluster shaft bearing from the input shaft gear cluster using theJ 22912-01  (1). See Special Tools .
