Manual Transmission Component Views

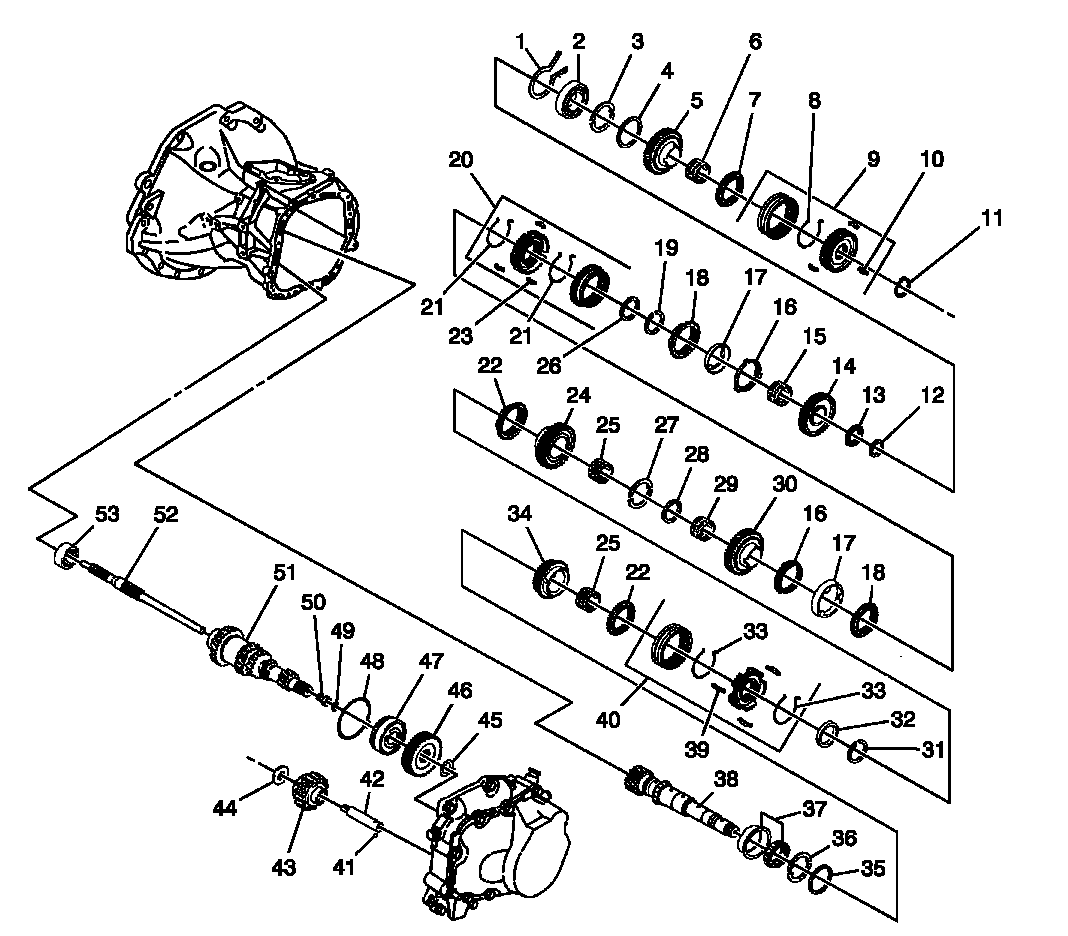

Fig 1: Gears And Case Component View
GM1248547Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Retaining Ring
2 Groove Ball Bearing
3 Washer
4 Retaining Ring
5 5th Speed Gear
6 Needle Cage
7 Synchronizer Ring
8 5th Synchronizer Spring
9 5th Shift sleeve
10 5th Synchronizer Key
11 Retaining Ring
12 Main Shaft Disc
13 Needle Cage
14 1st Speed Gear
15 Needle Cage
16 Inside Synchronizer Ring
17 Intermediate Ring
18 Outside Synchronizer Ring
19 Circlip
20 Sliding Gear
21 1st & 2nd Synchronizer Spring
22 Synchronizer Ring
23 1st & 2nd Synchronizer Key
24 3rd Speed Gear
25 Needle Cage
26 Washer
27 Washer
28 Washer Retaining Ring
29 Needle Cage
30 2nd Speed Gear
31 Circlip
32 Washer
33 3rd & 4th Synchronizer Spring
34 4th Speed Gear
35 Washer Retaining Ring
36 Washer
37 Roller Bearing
38 Transaxle Main Shaft
39 Synchronizer Key
40 Shift Sleeve
41 Ball
42 Reverse Idler Gear Shaft
43 Reverse Idler Gear
44 Washer
45 Retaining Ring
46 Cluster 5th Speed Gear
47 Groove Ball Bearing
48 Cluster Bearing Ring
49 Retaining Ring
50 Bolt
51 Input Shaft Cluster Gear
52 Input Drive Shift
53 Needle Sleeve

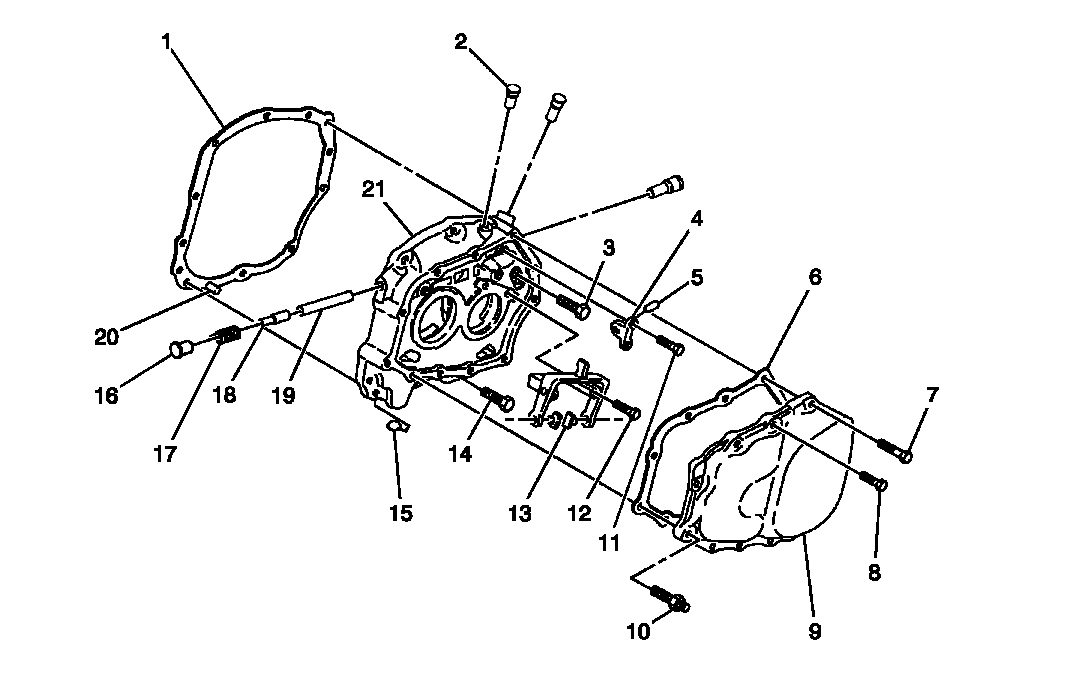

Fig 2: Bearing Plate Component View
GM1248548Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bearing Plate Gasket
2 Detent Sleeve
3 Bolt
4 Strain Bolt Bridge
5 Bolt
6 Transaxle Cover Gasket
7 Bolt
8 Bolt
9 Transaxle Cover
10 Screw
11 Bolt
12 Screw
13 Gear Shift Shoe
14 Bolt
15 Magnet
16 Plug
17 Compression Ring
18 Blocking Pin
19 Bolt
20 Pin
21 Bearing Plate

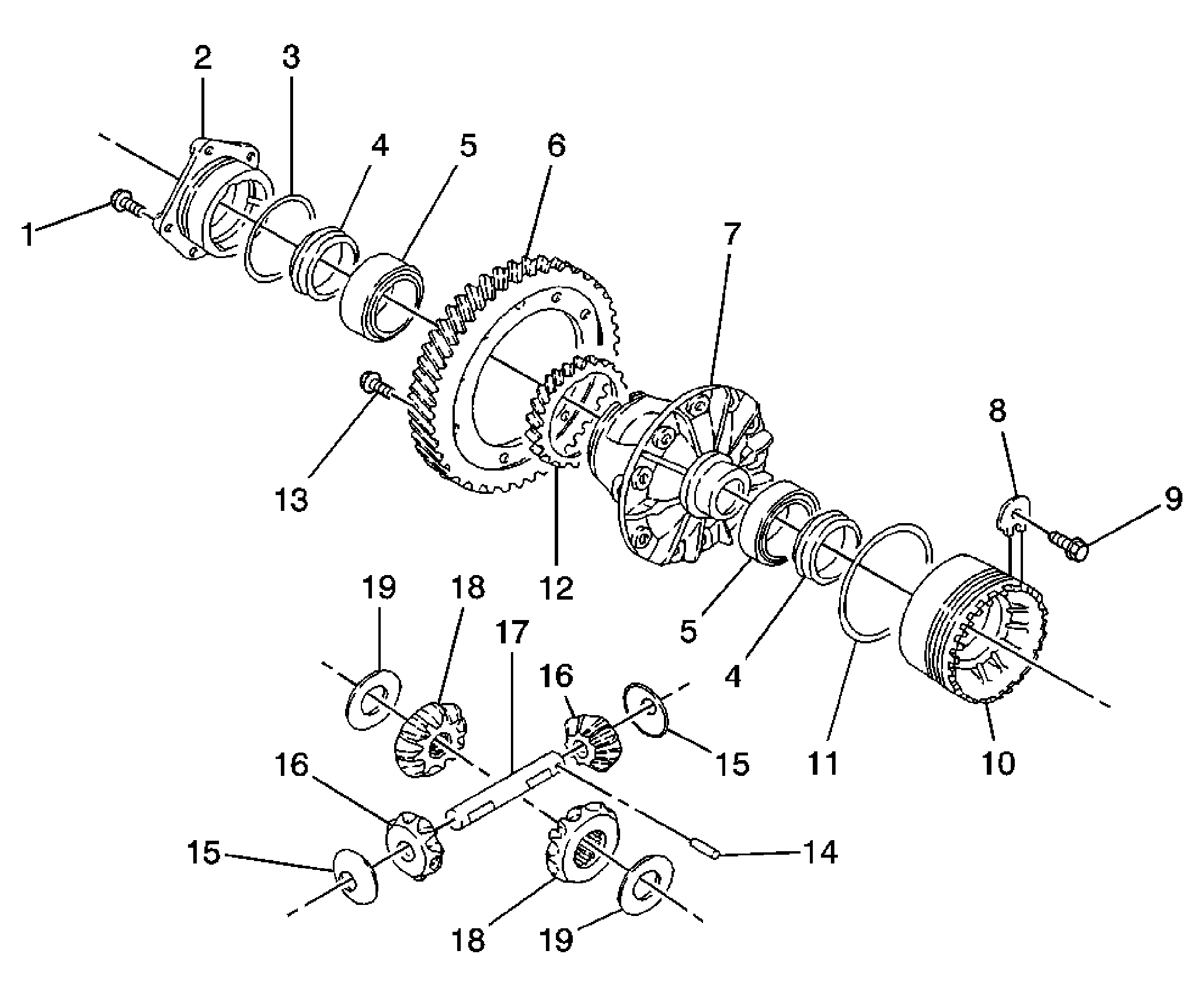

Fig 3: Differential Gear Component View
GM1248549Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt
2 Differential Gear Bearing Flange
3 O-Ring
4 Shaft Seal Ring
5 Taper Roller Bearing
6 Differential Gear
7 Differential Gear Housing
8 Locking Plate
9 Bolt
10 Differential Bearing Ring
11 O-Ring
12 Speedometer Drive Gear
13 Bolt
14 Differential Spring Pin
15 Bevel Gear Disc
16 Bevel Differential Gear
17 Differential Gear Shaft
18 Side Gear
19 Washer

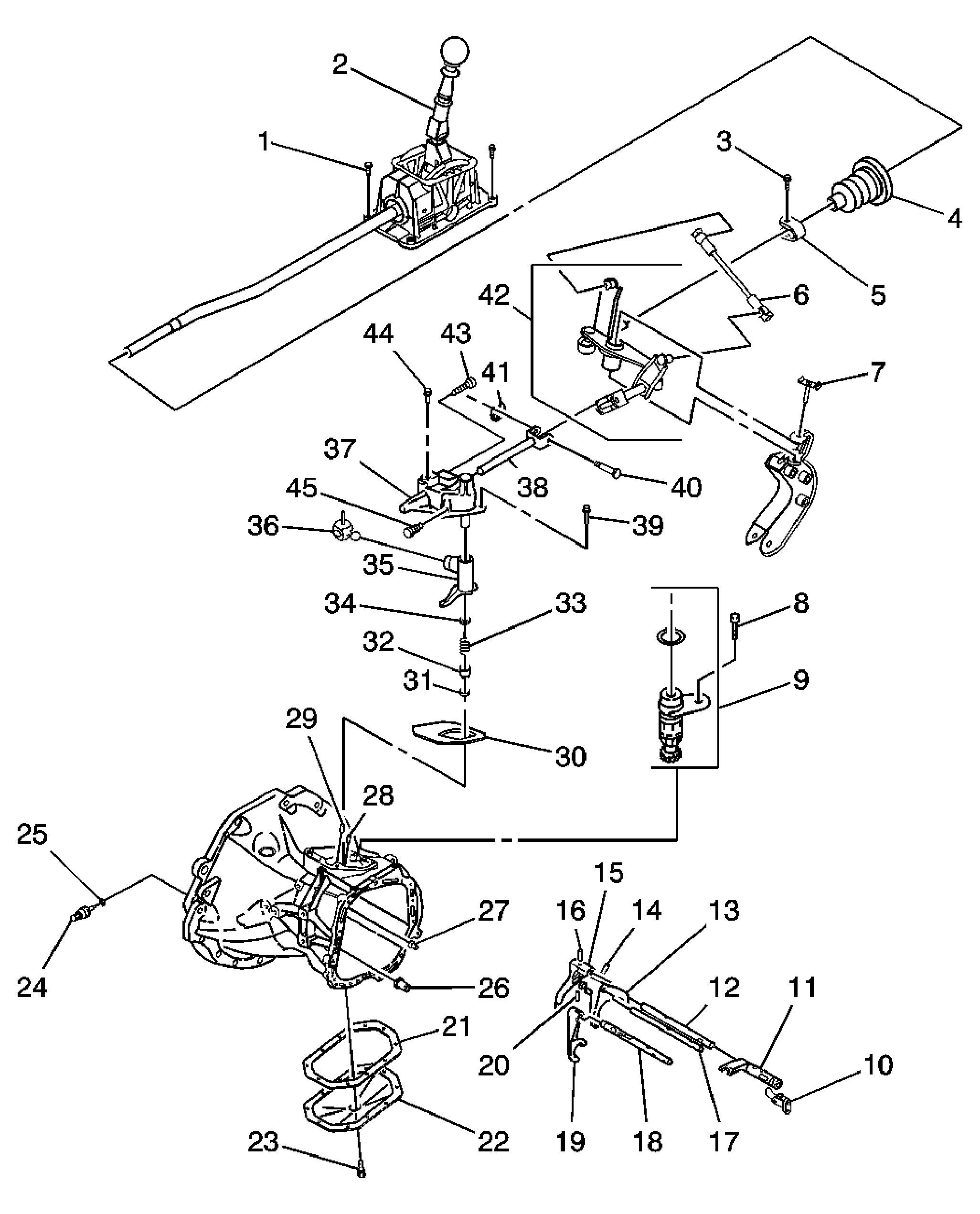

Fig 4: Shift Linkage Component View
GM1248550Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bolt
2 Gear Shift Control
3 Bolt
4 Gear Shift Tube Bellows
5 Clamp
6 Gear Shift Control Mode
7 Bolt
8 Bolt
9 Speedometer Driven Gear - Vehicle Speed Sensor (VSS)
10 Gear Shift Rod Pawl
11 5th Speed Engaging Piece
12 3rd & 4th Gear Shift Rod
13 1st & 2nd Gear Shift Fork
14 Pin
15 3rd & 4th Gear Shift Fork
16 Pin
17 1st & 2nd Gear Shift Rod
18 Reverse Gear Shift Rod
19 Reverse Gear Shift Fork
20 Pin
21 Differential Gear Cover Gasket
22 Differential Gear Cover
23 Screw
24 Backup Lamp Switch
25 O-Ring
26 Bush
27 Sleeve
28 Pin
29 Pin
30 Gear Shift Cover Gasket
31 Retaining Ring
32 Bush
33 Compression Spring
34 Plate
35 Gear Shift Inter Lever
36 Shift Finger
37 Gear Shift Lever Cover
38 Gear Shift Rod
39 Bolt
40 Pin
41 Clip
42 Gear Shift Guide Control
43 Plug
44 Plug
45 Pin
