Removal Procedure

    Fig 1: Fluid Cooler Inlet/Outlet Hoses & Transaxle
    GM1245849Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Remove the battery and battery tray.
  2. Drain the transaxle fluid. Refer to Draining Transmission Fluid .
  3. Remove the left and right drive axle assemblies. Refer to Inner Shaft and/or Housing Replacement - Front Drive Axle .
  4. Disconnect the fluid cooler inlet and outlet hoses from the transaxle.
    5. Fig 2: J 28467-B & Engine
    GM1245848Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the shift control cable from the transaxle. Refer to Shift Control Cable Replacement - Floor Shift .
  6. Install the J 28467-B  (1) to support the engine.
    7. Fig 3: Electrical Connectors
    GM1245847Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the input shaft speed (ISS) sensor electrical connector.
  8. Disconnect the output shaft speed (OSS) sensor electrical connector.
  9. Disconnect the park/neutral position (PNP) sensor electrical connector.
  10. Disconnect the transaxle electrical connector.
    11. Fig 4: View Of Torque Converter Bolts
    GM1245846Courtesy of GENERAL MOTORS CORP.
  11. Remove the service hall cover.
  12. Remove the torque converter bolts.
    13. Fig 5: Removal Of Rear Mounting Bracket Bolts And Bracket
    GM1242020Courtesy of GENERAL MOTORS CORP.
  13. Remove the damping block connection nut and bolt.
  14. Remove the rear mounting bracket bolts and rear mounting bracket.
    15. Fig 6: View Of Upper Transaxle Mounting Bracket Bolts
    GM1245844Courtesy of GENERAL MOTORS CORP.
  15. Remove the 3 upper transaxle mounting bracket bolts.

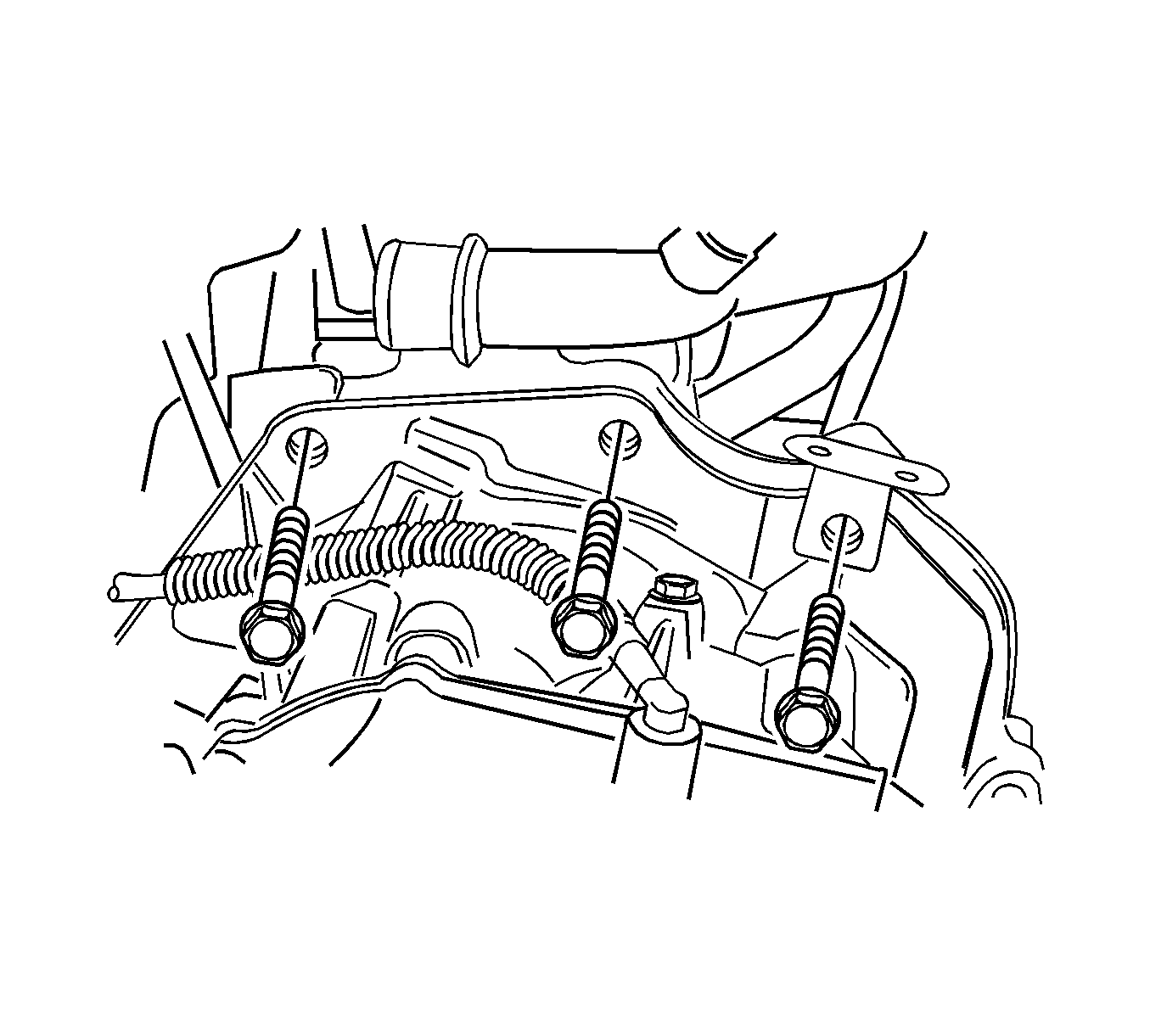

    16. Fig 7: Removing Upper Transaxle-To-Engine & Mounting Bolts
    GM1245843Courtesy of GENERAL MOTORS CORP.
  16. Remove the 3 upper transaxle-to-engine mounting bolts.
    17. Fig 8: Securing Transaxle Jack & DW 260-120
    GM1245842Courtesy of GENERAL MOTORS CORP.
  17. Secure the transaxle to a transaxle jack and DW 260-120  (1). See Special Tools .

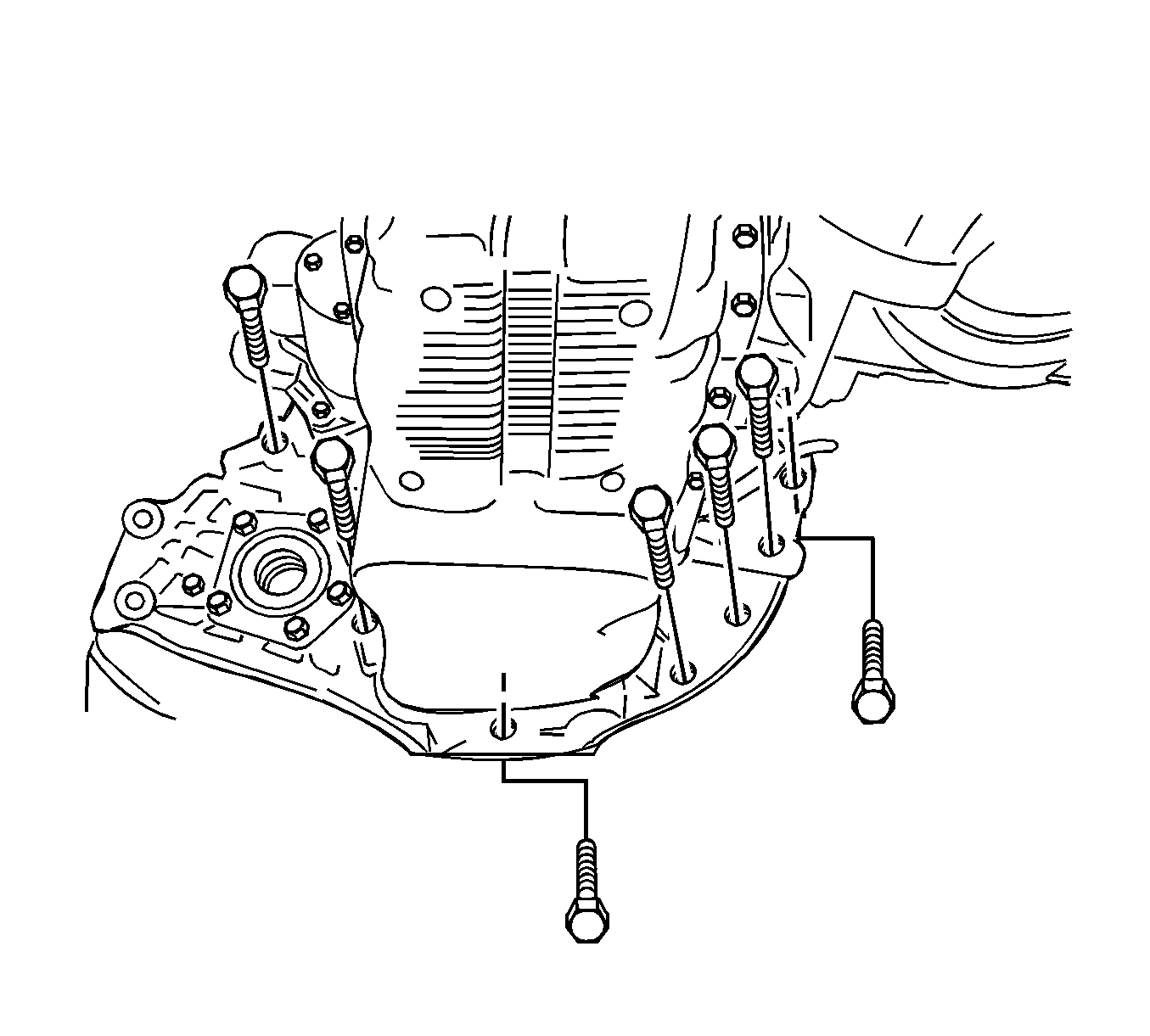

    18. Fig 9: Removing Lower Transaxle-To-Engine & Retaining Bolts
    GM1245841Courtesy of GENERAL MOTORS CORP.
  18. Remove the 7 lower transaxle-to-engine retaining bolts.

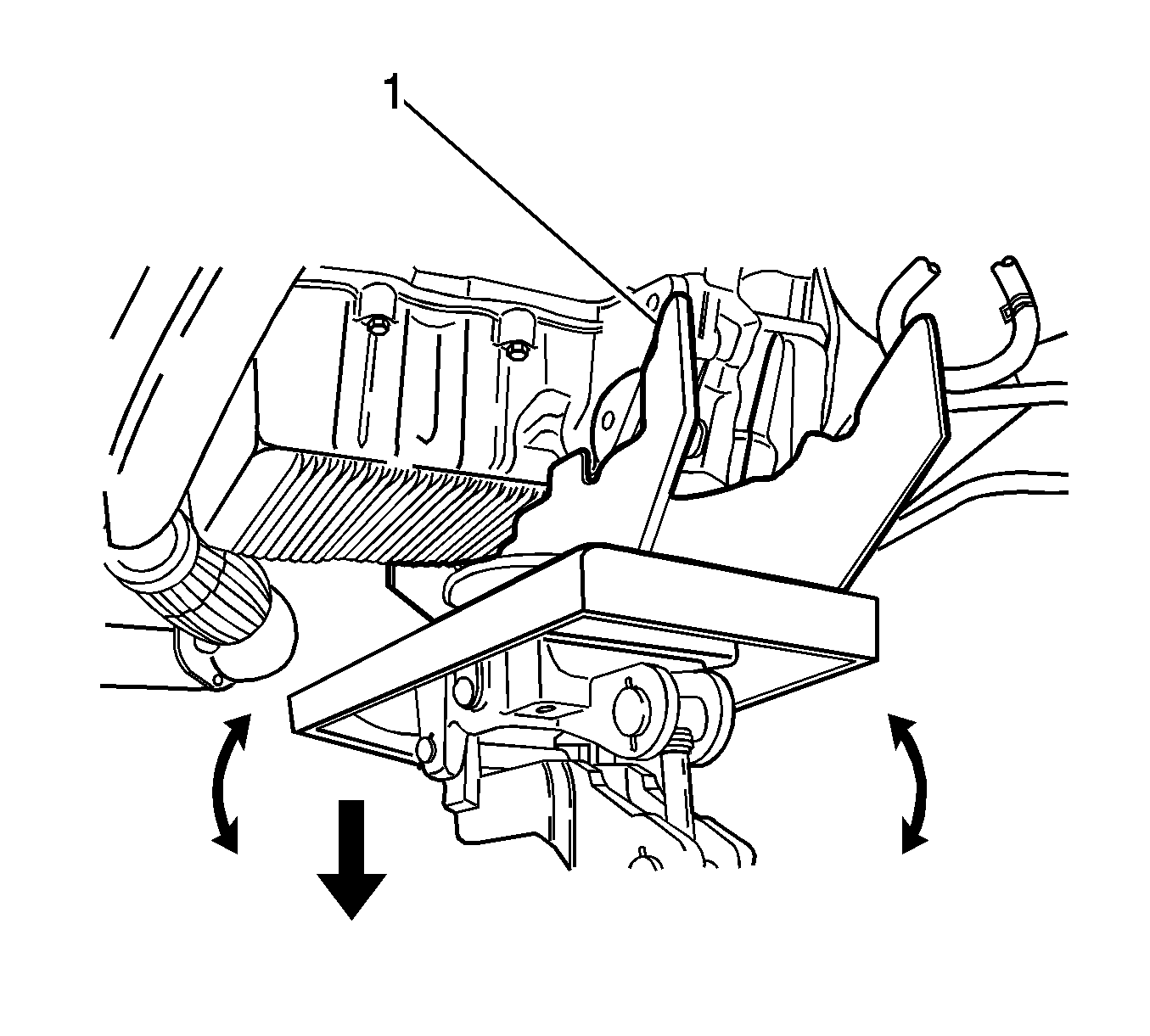

    19. Fig 10: Removing Transaxle Jack & DW 260-120
    GM1245840Courtesy of GENERAL MOTORS CORP.
  19. Carefully remove the transaxle from the vehicle with the transaxle secured in the DW 260-120  (1). See Special Tools .
