Removal Procedure

IMPORTANT: The Transmission Fluid Temperature (TFT) sensor is incorporated into the wiring harness assembly. The harness and sensor have to be replaced as an assembly

Drain the transaxle fluid from the transaxle. Refer to Draining Transmission Fluid .

Fig 1: Transmission Pan Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the 18 oil pan retaining bolts, then remove the oil pan and gasket.

Fig 2: Solenoids & Wiring Harness Assembly

Courtesy of GENERAL MOTORS CORP.

Disconnect the wiring harness assembly from the five solenoids.

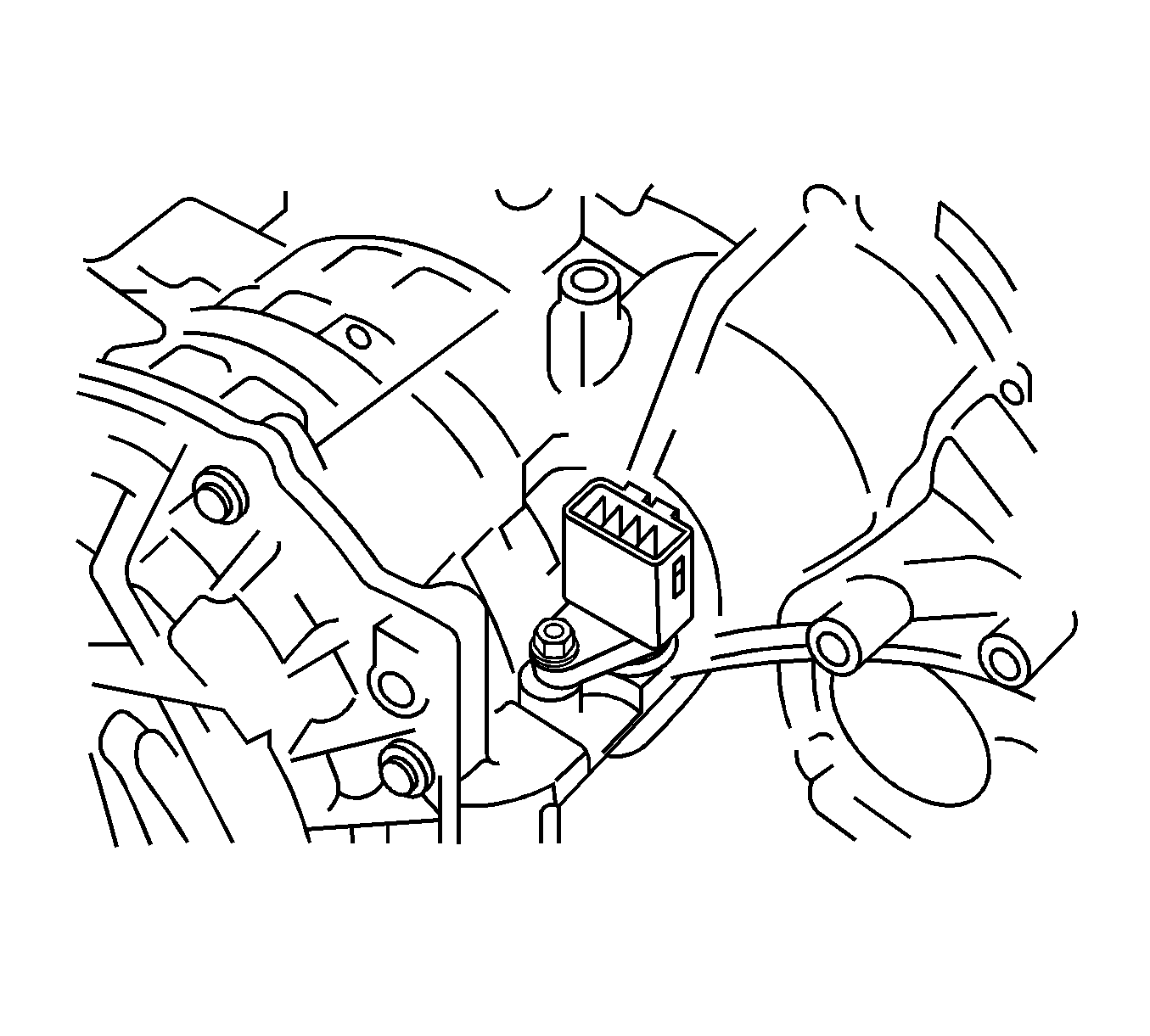

Fig 3: Locating Transmission Fluid Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the wiring harness retaining bolt, then remove the wiring harness and TFT sensor from the transaxle.
