Installation Procedure

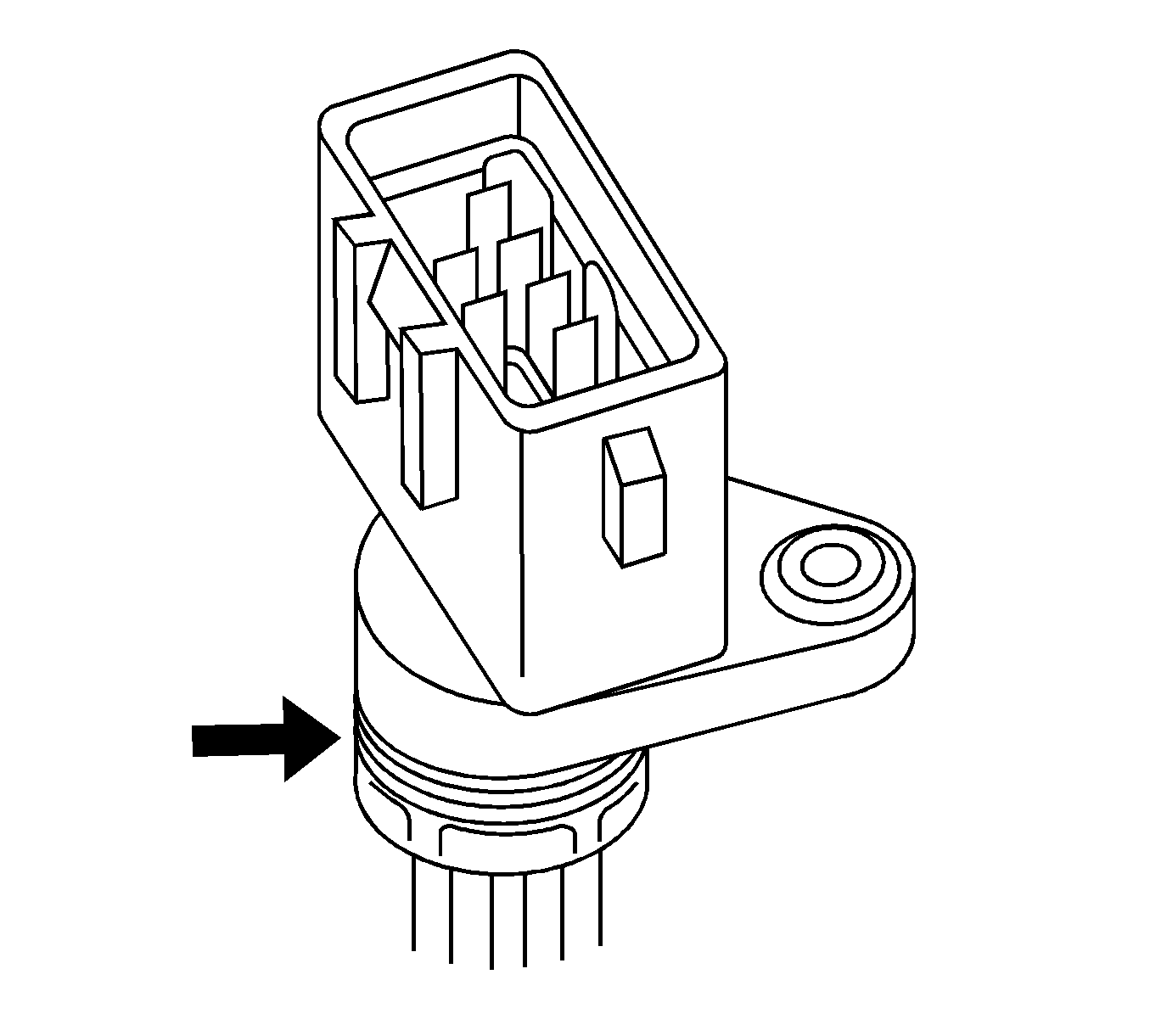

Fig 1: Transmission Fluid Temperature Sensor
GM1774675Courtesy of GENERAL MOTORS CORP.
  1. Coat a new O-ring with ATF, then install it on the harness connector.
  2. Install the TFT sensor and wiring harness into the transaxle case.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the wiring harness retaining bolt.

    Tighten:  Tighten the bolt to 5.5 Nm (48 lb-in).

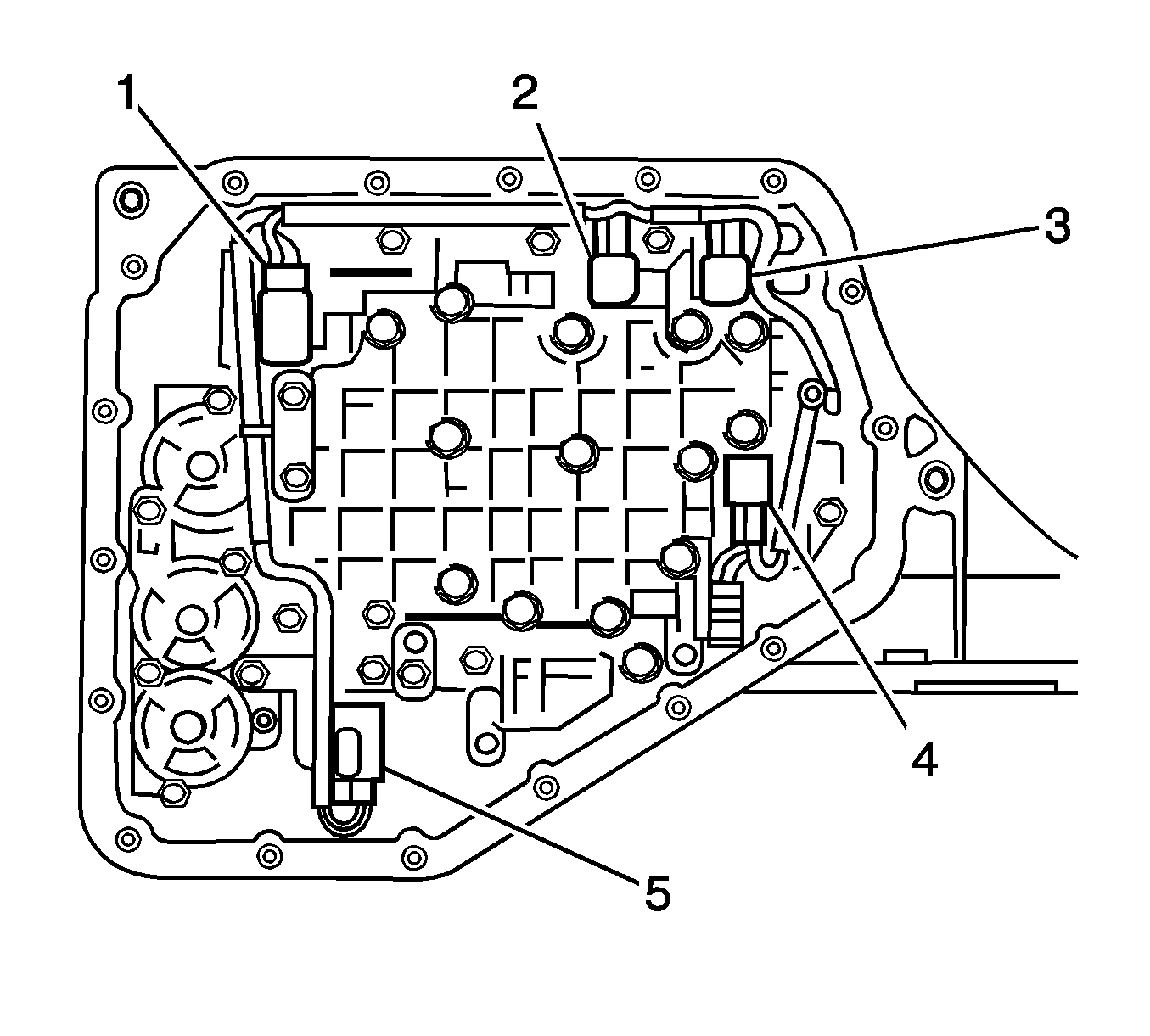

    4. Fig 2: Solenoid Wiring Harness Assembly
    GM1774664Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring harness to the five solenoids.

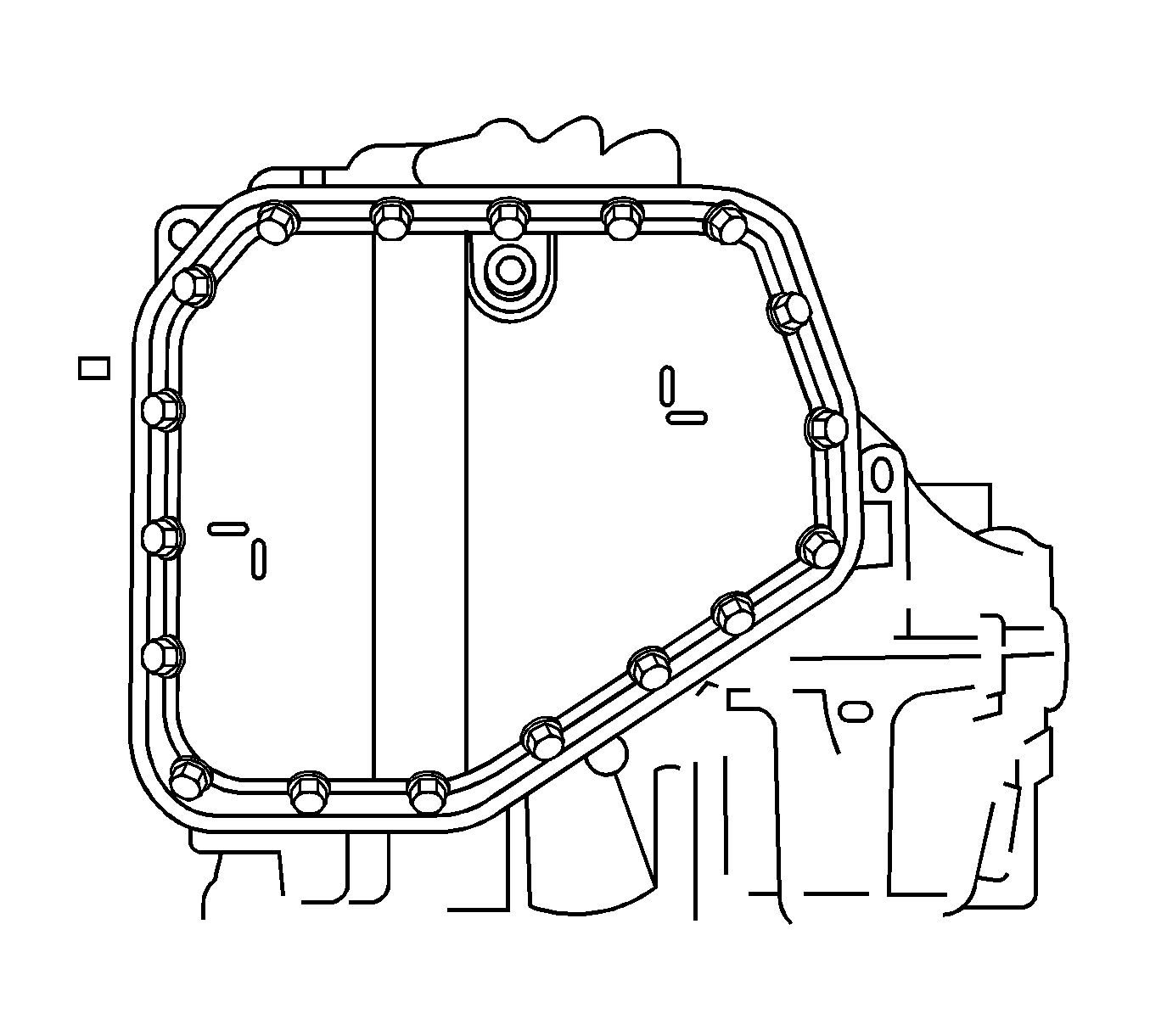

    5. Fig 3: Transmission Pan Bolts
    GM1774660Courtesy of GENERAL MOTORS CORP.
  5. Install a new gasket on the oil pan, then install the oil pan to the transaxle with the 18 retaining bolts.

    Tighten:  Tighten the bolts to 7.5 Nm (65 lb-in).

  6. Fill the transaxle with fluid. Refer to Draining Transmission Fluid .
