Removal Procedure

    Fig 1: OSS Sensor Electrical Connector
    GM1245833Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the output shaft speed (OSS) sensor electrical connector.

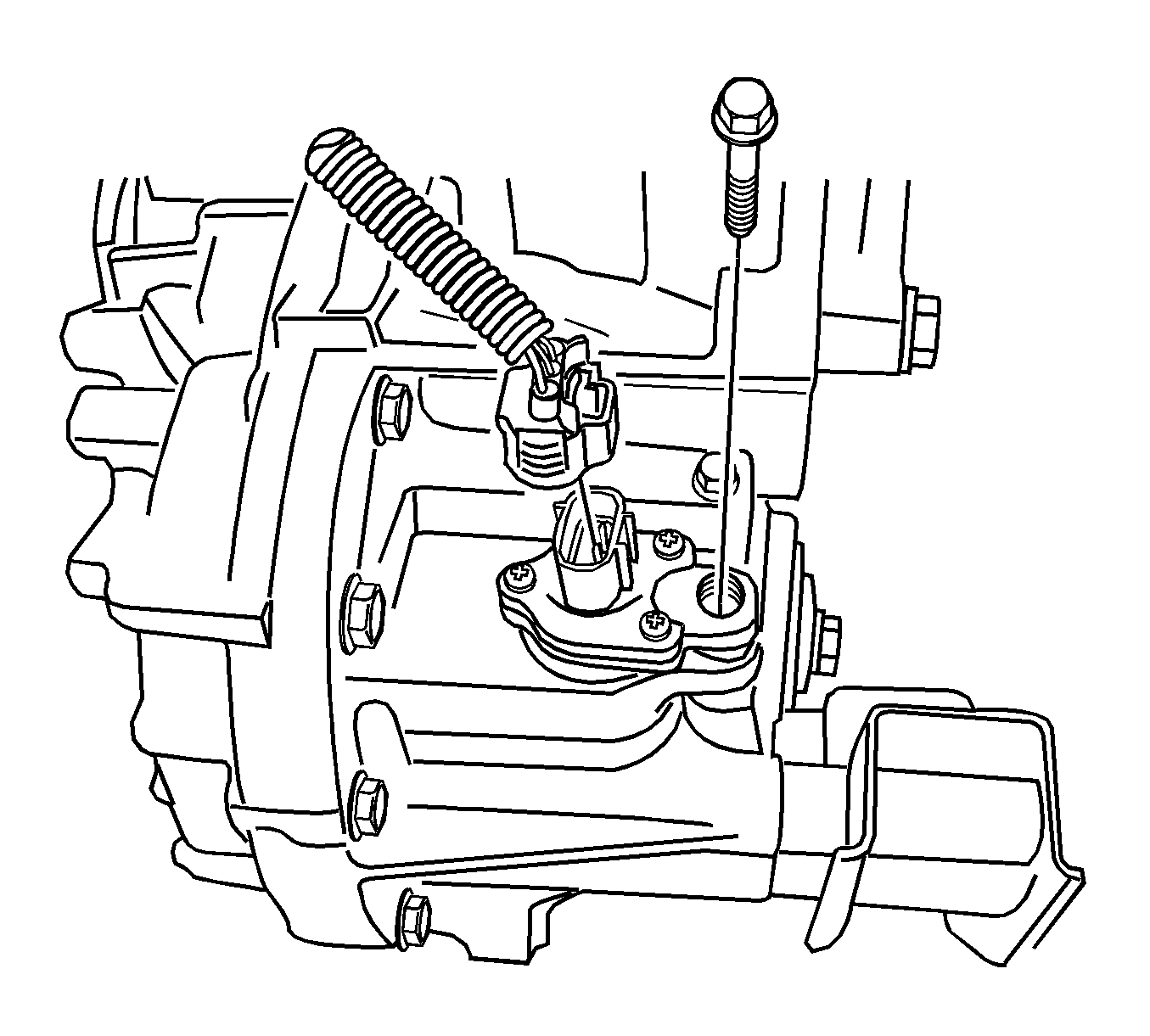

    3. Fig 2: OSS Sensor Retaining Bolt
    GM1245832Courtesy of GENERAL MOTORS CORP.
  3. Remove the OSS sensor retaining bolt.
  4. Remove the OSS sensor from the transaxle.
