Installation Procedure

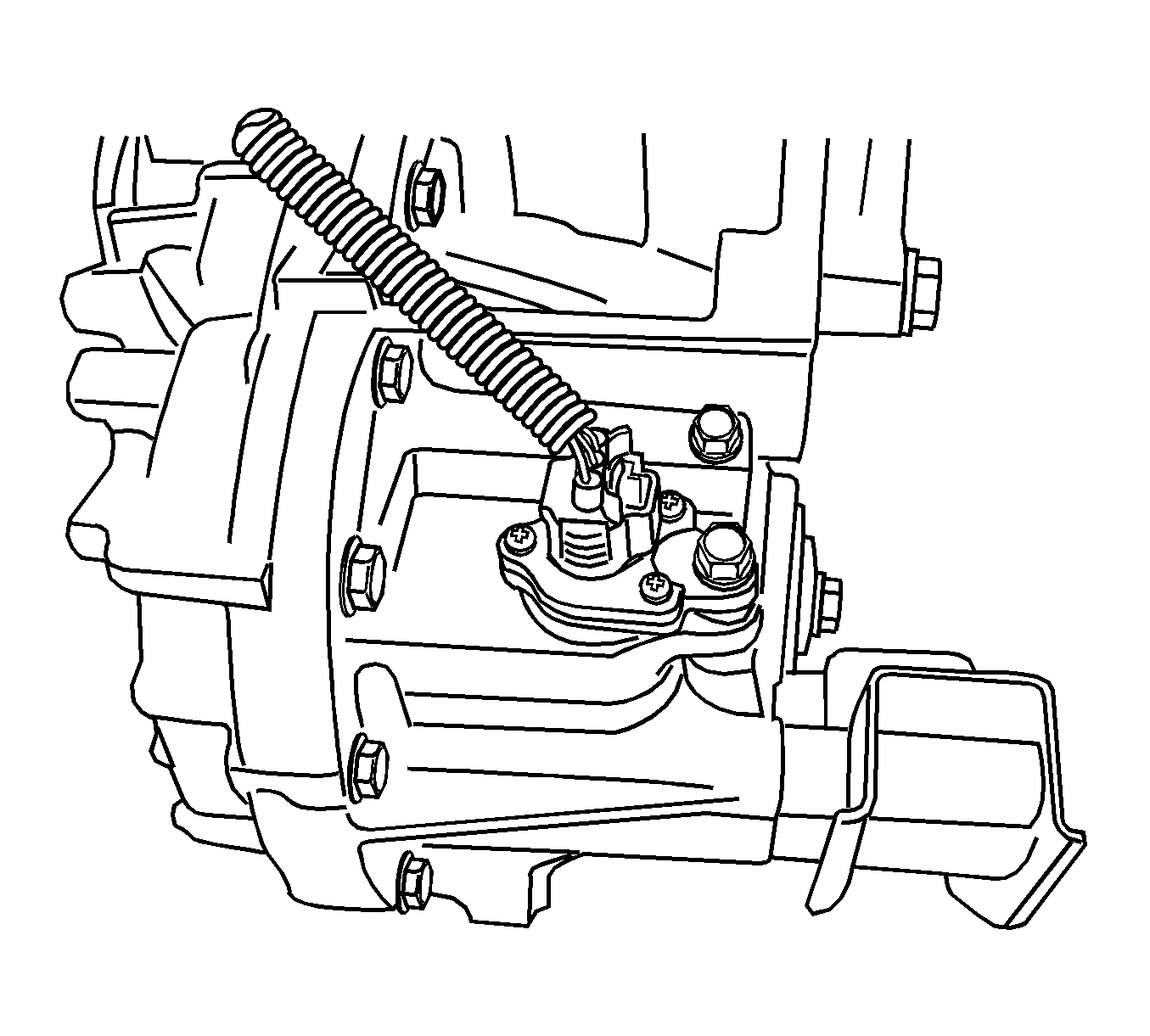

    Fig 1: OSS Sensor, Retaining Bolt & O-Ring
    GM1245835Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Lubricate the O-ring with T-IV Automatic Transmission Fluid GM P/N 88900925 (Canadian P/N 22689186).
  1. Install a new O-ring on the OSS sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the OSS sensor and retaining bolt into the transaxle.

    Tighten:  Tighten the OSS sensor retaining bolt to 7.4 N.m (65 lb in).

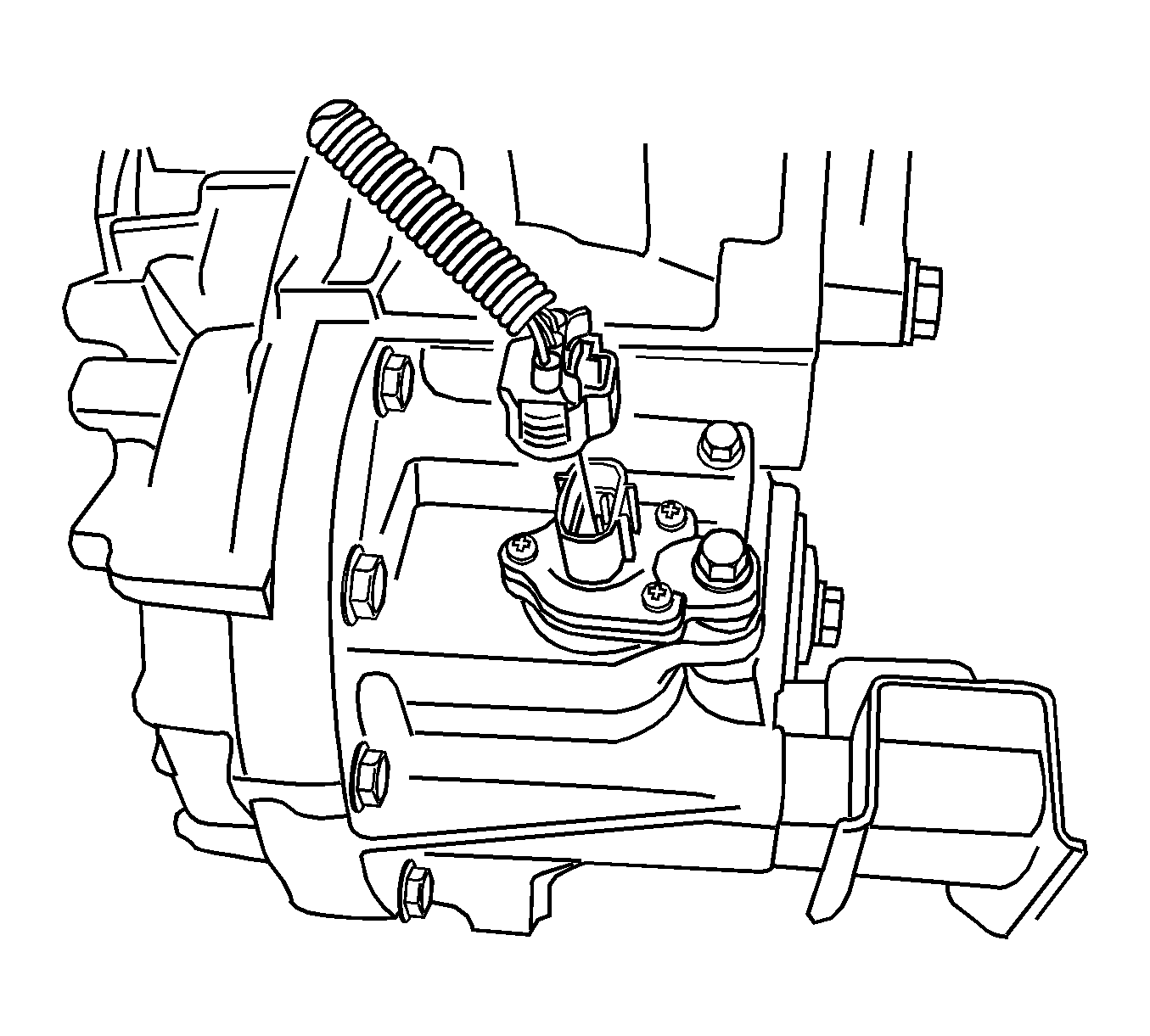

    3. Fig 2: OSS Sensor Electrical Connector
    GM1245833Courtesy of GENERAL MOTORS CORP.
  3. Connect the OSS sensor electrical connector.
  4. Connect the negative battery cable.
