Input Speed Sensor Inspection

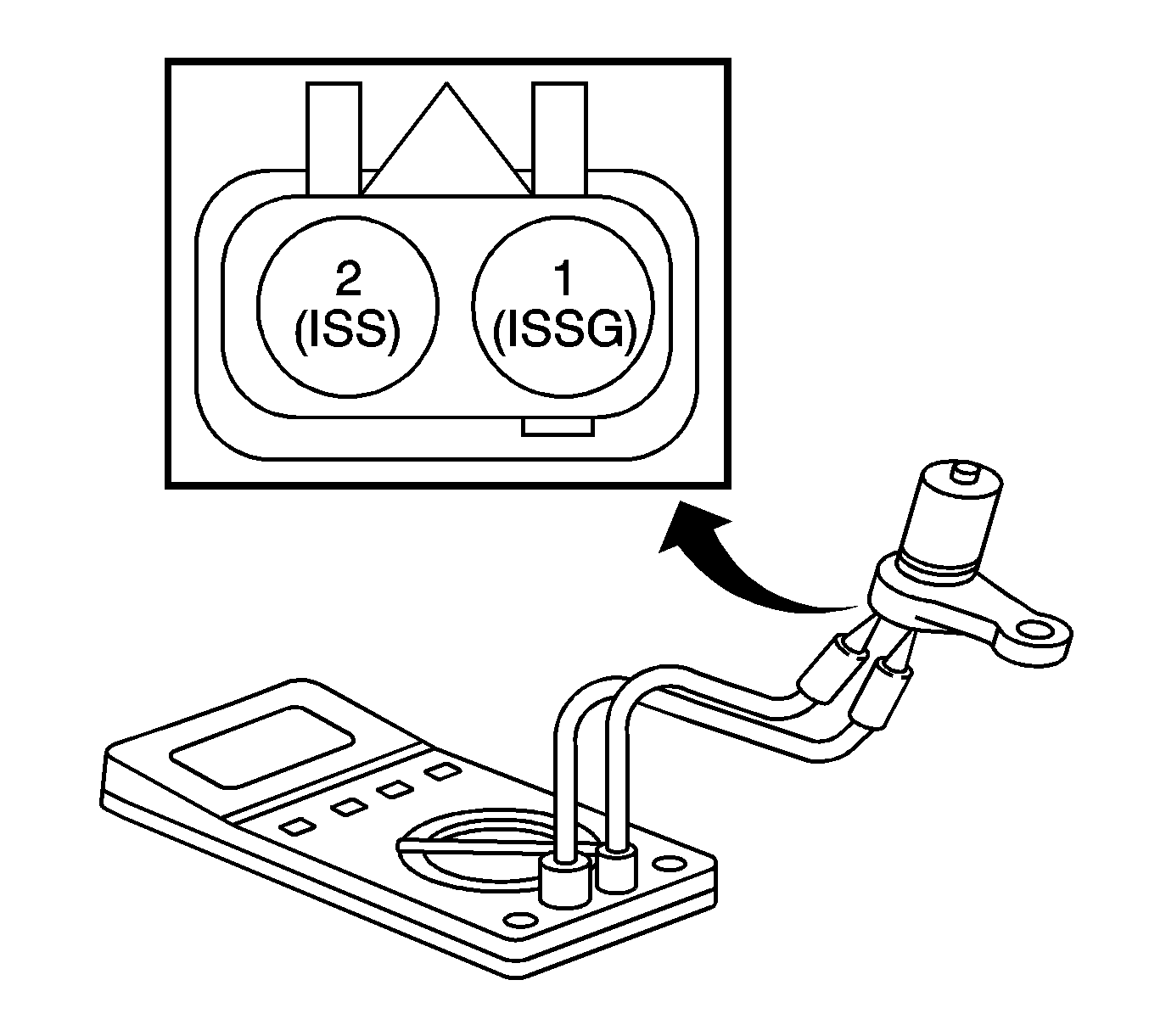

Fig 1: Measuring The Resistance Of Each Input Speed Sensor Between Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Sensor Resistance

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The resistance of the sensor can become infinity ohm when the resistance measurement is made at high temperatures.

If the resistance value is not between the minimum and maximum resistance plot lines, then measure the sensor resistance at 20°C (68°F).
If both resistance measurements are not between the minimum and maximum resistance plot lines, then replace the input speed sensor.
