Removal Procedure

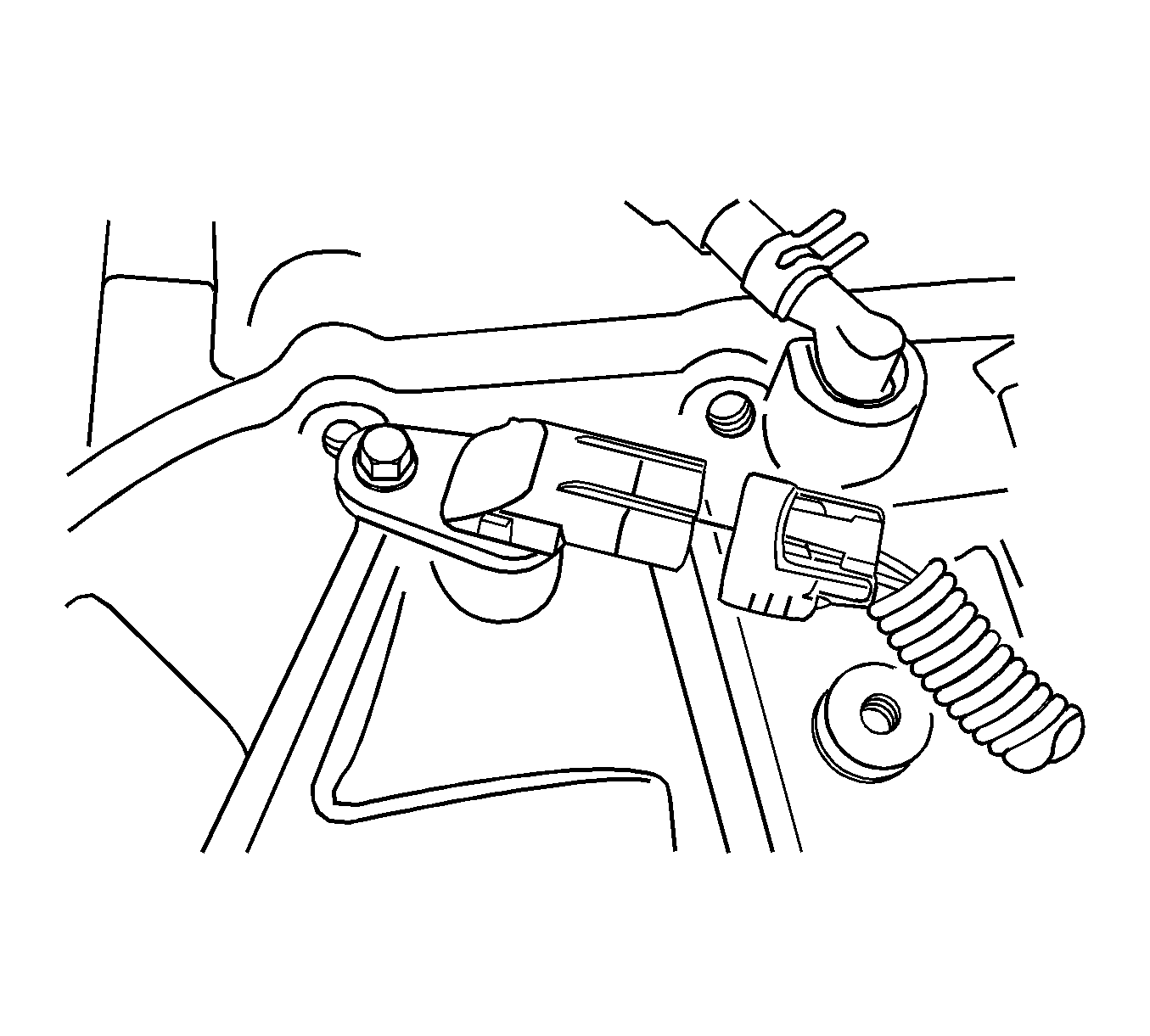

    Fig 1: ISS Sensor Electrical Connector
    GM1245830Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the input shaft speed (ISS) sensor electrical connector.
    3. Fig 2: ISS Sensor & Retaining Bolt
    GM1245829Courtesy of GENERAL MOTORS CORP.
  3. Remove the ISS sensor retaining bolt.
  4. Remove the ISS sensor from the transaxle.
