Control Valve Body Disassemble

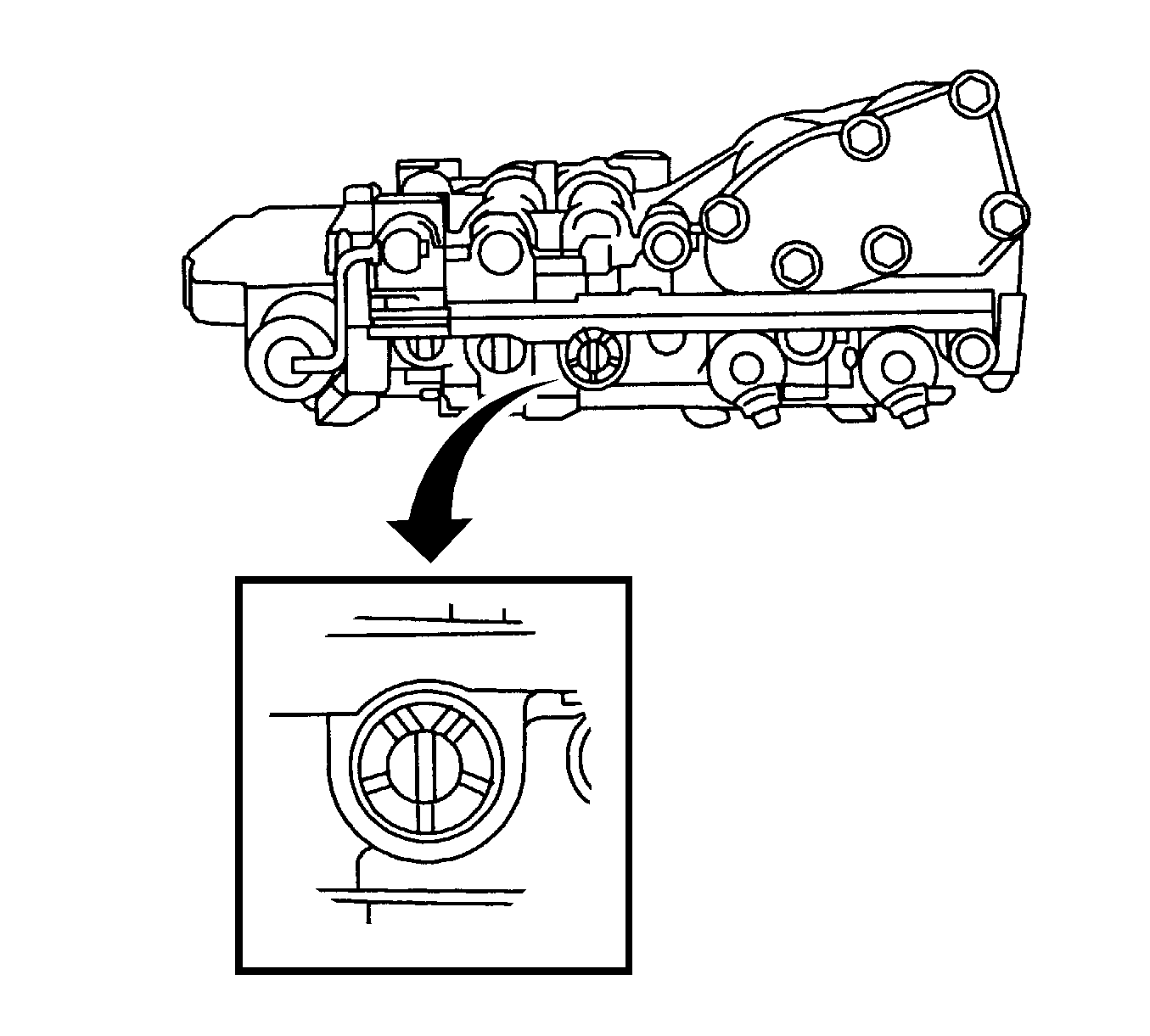

    Fig 1: Primary Regulator Valve Sleeve, Plug & Pin
    GM1248118Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Because the line pressure is changed by the position of the pin and groove in the sleeve end, be sure to check the position.
  1. Write down the relative position of the primary regulator valve sleeve, plug, and pin.
  2. Remove the manual valve.

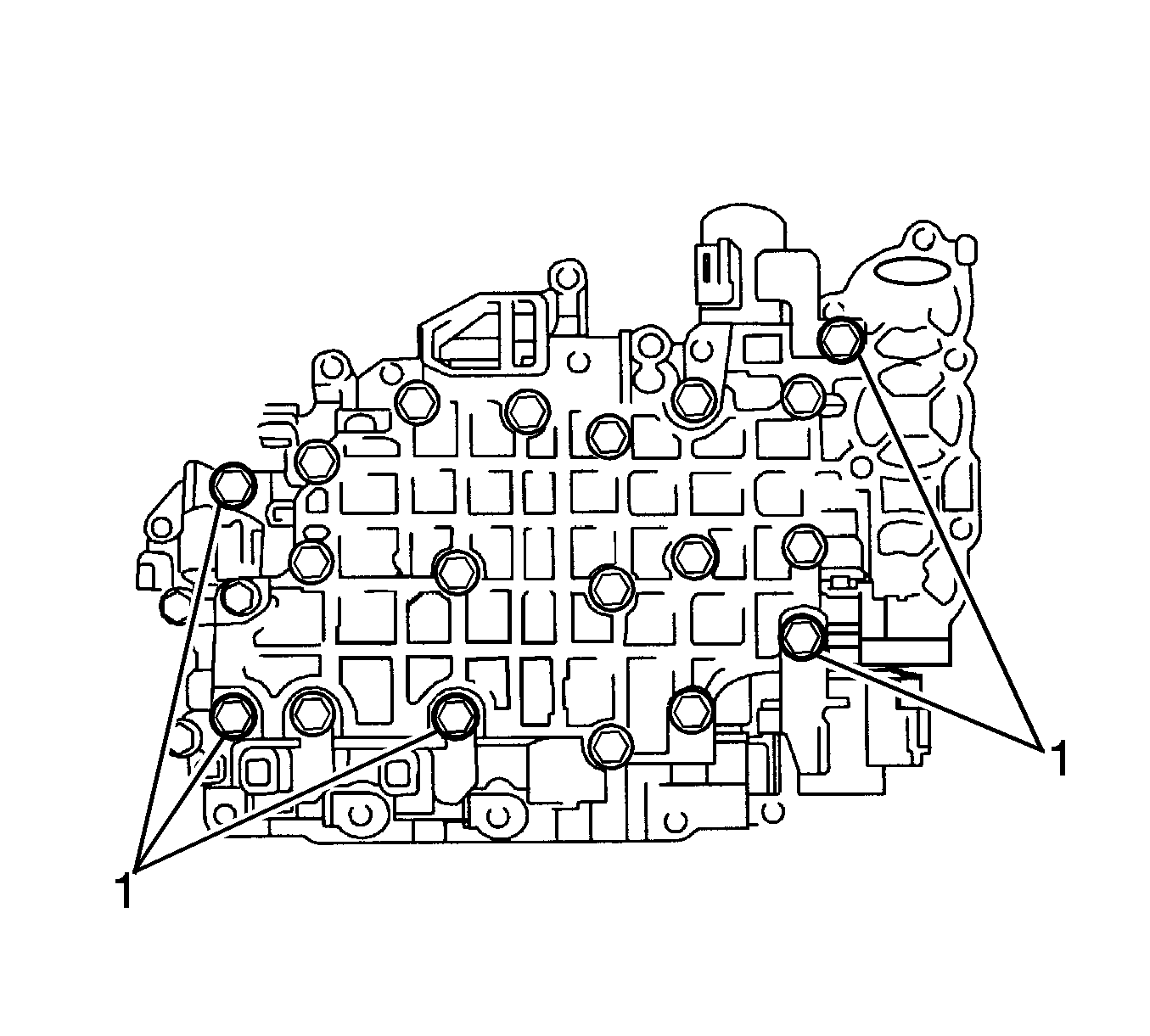

    3. Fig 2: Shift Solenoid Valves & Bolts
    GM1248123Courtesy of GENERAL MOTORS CORP.
  3. Remove the 5 bolts (1) and 5 shift solenoid valves.

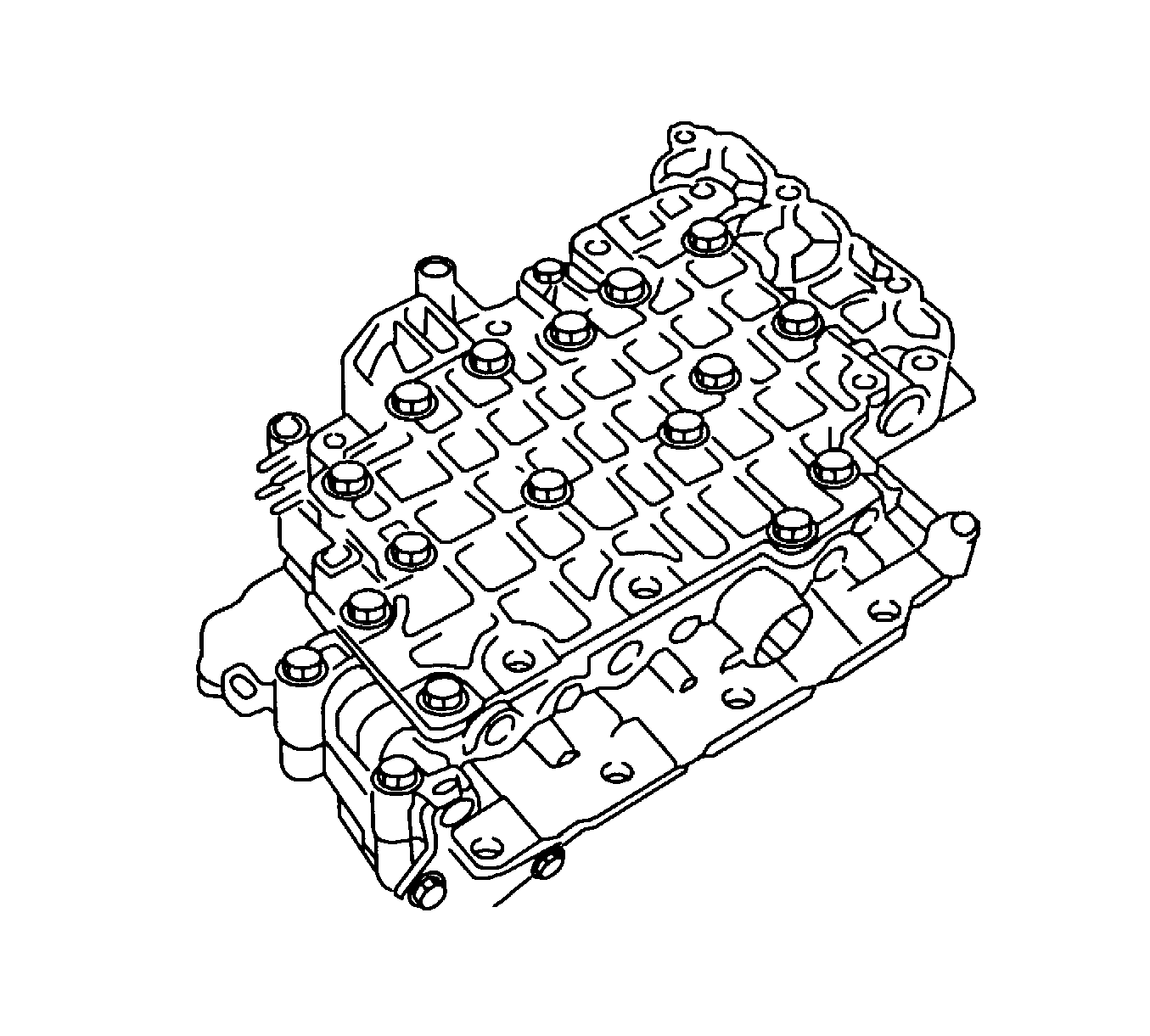

    4. Fig 3: Control Valve Body & Bolts
    GM1248119Courtesy of GENERAL MOTORS CORP.
  4. Remove the 15 bolts.

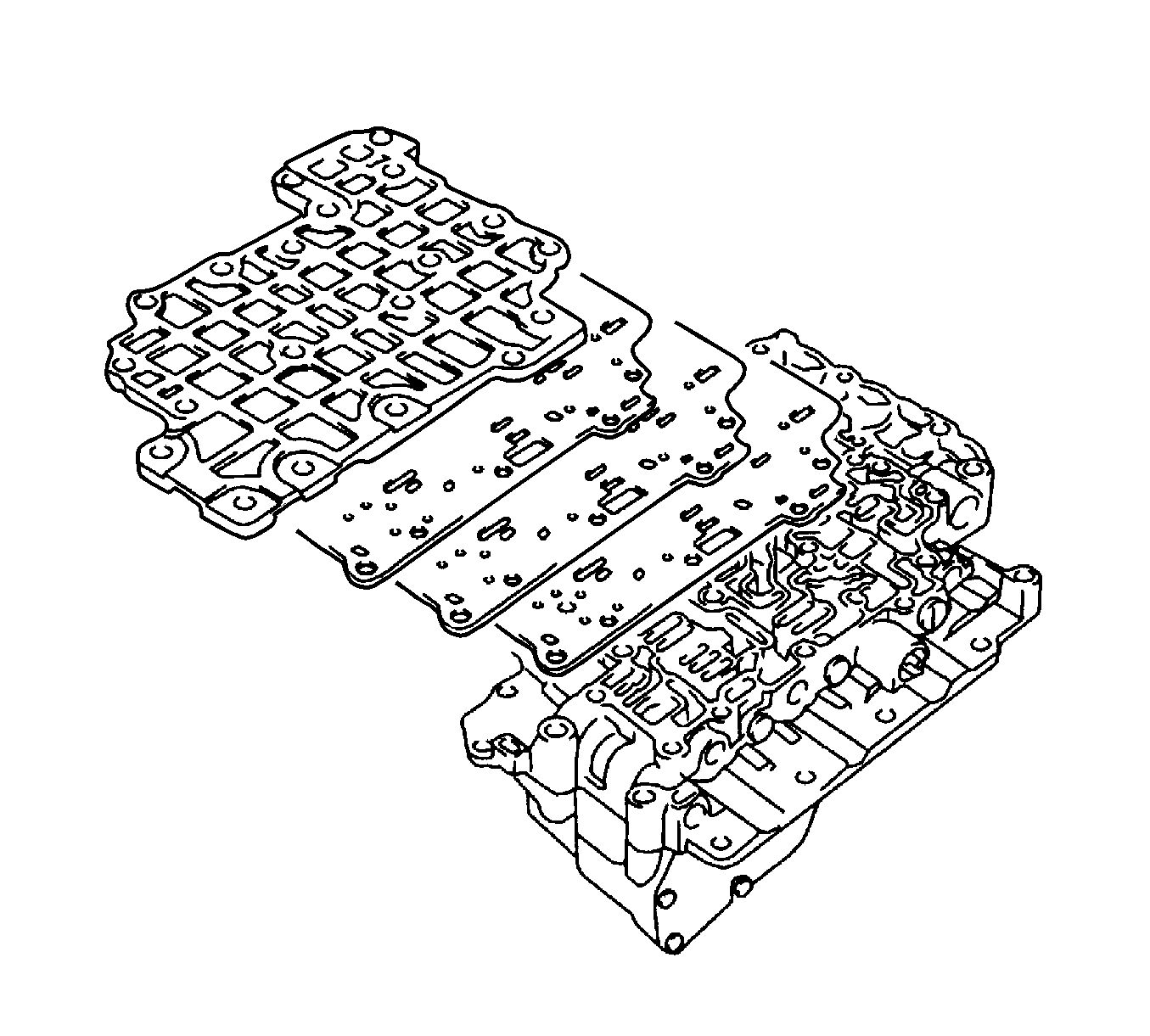

    5. Fig 4: Control Valve Body, Cover, Gaskets & Plate
    GM1248120Courtesy of GENERAL MOTORS CORP.
  5. Remove the cover, the 2 gaskets, and the plate.

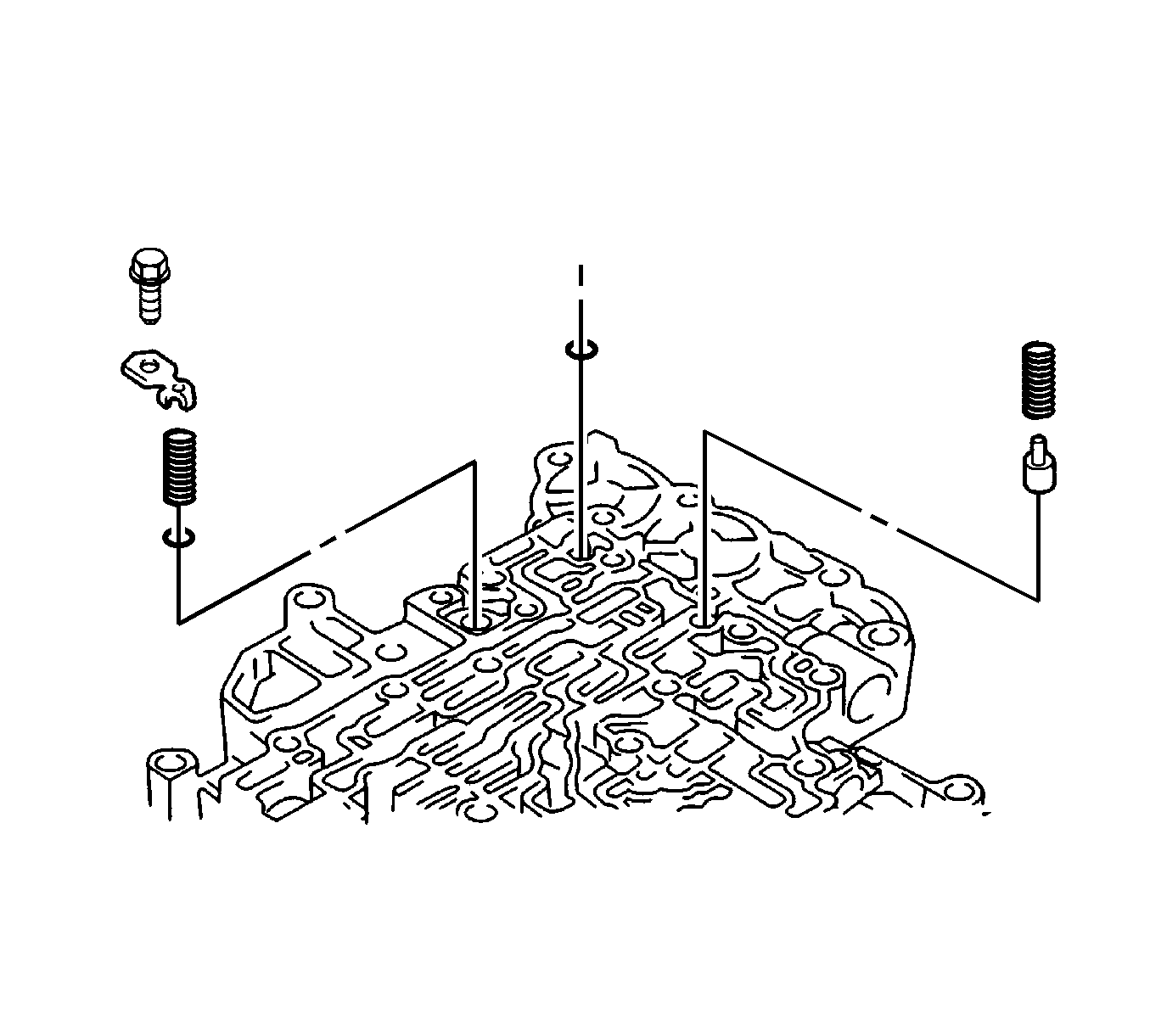

    6. Fig 5: Spring, Check Valve & Check Ball
    GM1248125Courtesy of GENERAL MOTORS CORP.
  6. Remove the spring, check valve, and check ball.
  7. Remove the bolt, spring seat, spring, and ball.
  8. Turn over the valve body.

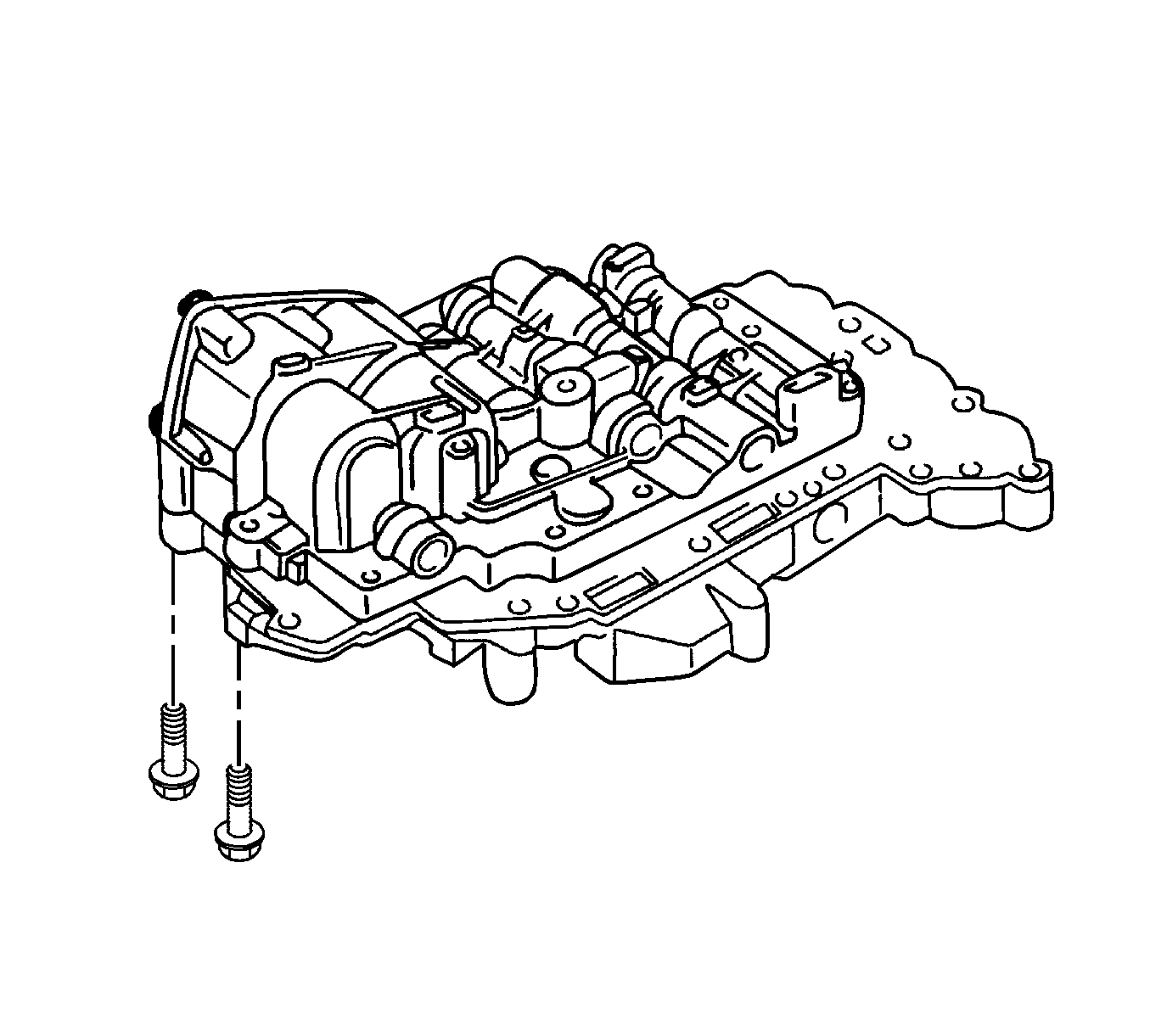

    9. Fig 6: Valve Body & Bolts
    GM1248127Courtesy of GENERAL MOTORS CORP.
  9. Remove the 2 bolts from the valve body.

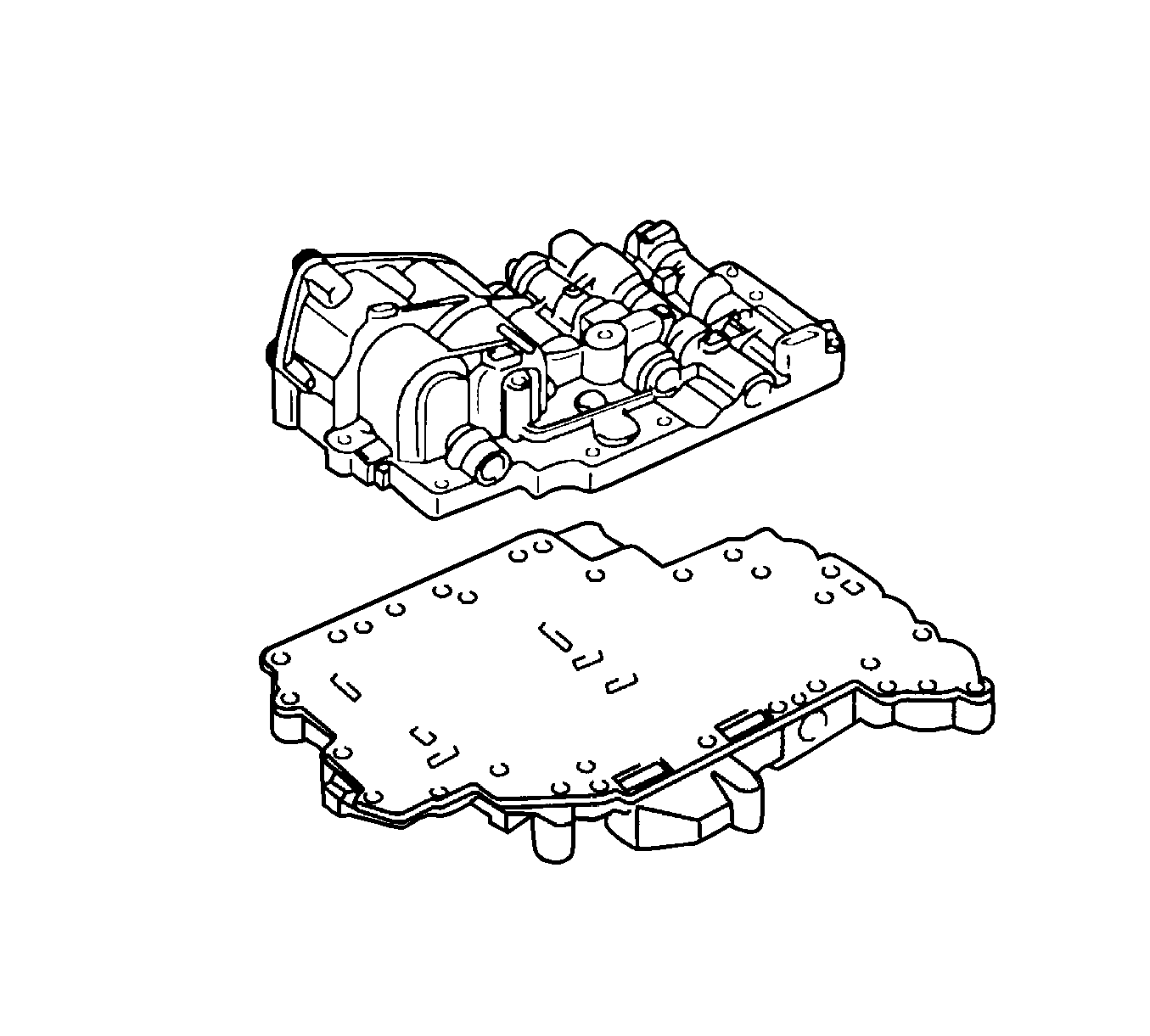

    10. Fig 7: Upper Valve Body & Lower Valve Body
    GM1248126Courtesy of GENERAL MOTORS CORP.
  10. Remove the upper valve body from the lower valve body with the plate.

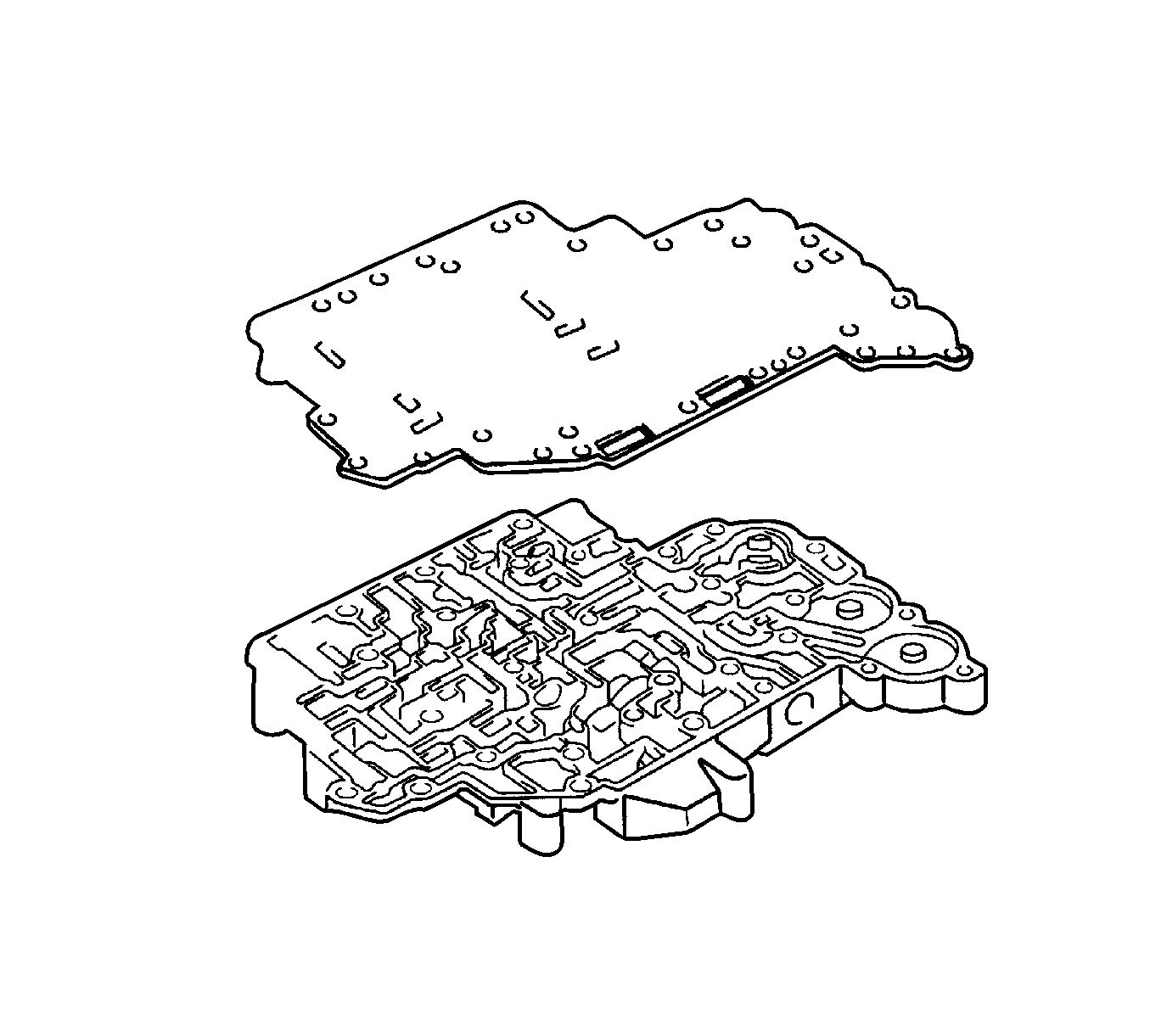

    11. Fig 8: Valve Body Plate & Lower Valve Body
    GM1248124Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Be careful that the check balls do not fall out.
  11. Remove the valve body plate from the lower valve body.
