Control Valve Body Assemble

Fig 1: Valve Body Plate & Lower Valve Body

Courtesy of GENERAL MOTORS CORP.

Fig 2: Upper Valve Body & Lower Valve Body

Courtesy of GENERAL MOTORS CORP.

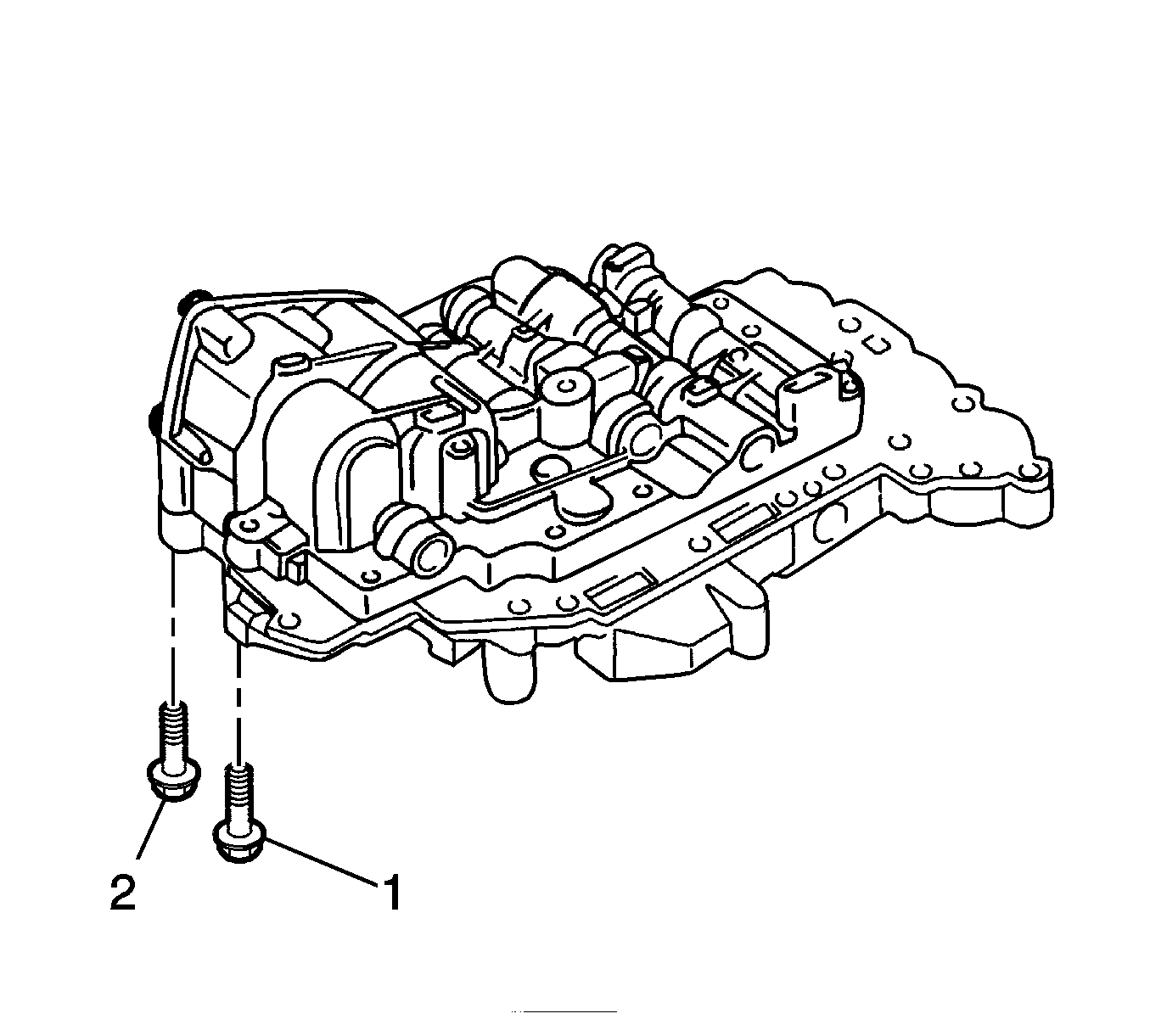

Fig 3: Valve Body & Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the 2 bolts to the valve body. The bolt lengths are 49 mm (1.93 in) (1) and the 36 mm (1.42 in) (2).
Tighten: Tighten the bolts to 11 N.m (97 lb in).
Turn the valve body.

Fig 4: Spring, Check Valve & Check Ball

Courtesy of GENERAL MOTORS CORP.

Install the check valve, spring, and check ball.
Install the ball, spring, spring seat, and bolt.
Tighten: Tighten the bolts to 6.5 N.m (57 lb in).

Fig 5: Control Valve Body, Cover, Gaskets & Plate

Courtesy of GENERAL MOTORS CORP.

Fig 6: Control Valve Body & Bolts

Courtesy of GENERAL MOTORS CORP.

Tighten the bolts temporarily.
Tighten the bolts completely. The bolt lengths are 49 mm (1.93 in), 20 mm (0.79 in), and 60 mm (2.36 in).
Tighten: Tighten the bolts to 11 N.m (97 lb in).

Fig 7: Shift Solenoid Valves & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the 5 shift solenoid valves with the 5 bolts (1). The bolt lengths are 49 mm (1.93 in) and 20 mm (0.79 in).
Tighten: Tighten the bolts to 11 N.m (97 lb in).
Install the manual valve.

Fig 8: Primary Regulator Valve Sleeve, Plug & Pin

Courtesy of GENERAL MOTORS CORP.

Make sure that the primary regulator valve is positioned in the same place where it was removed.
