Installation Procedure

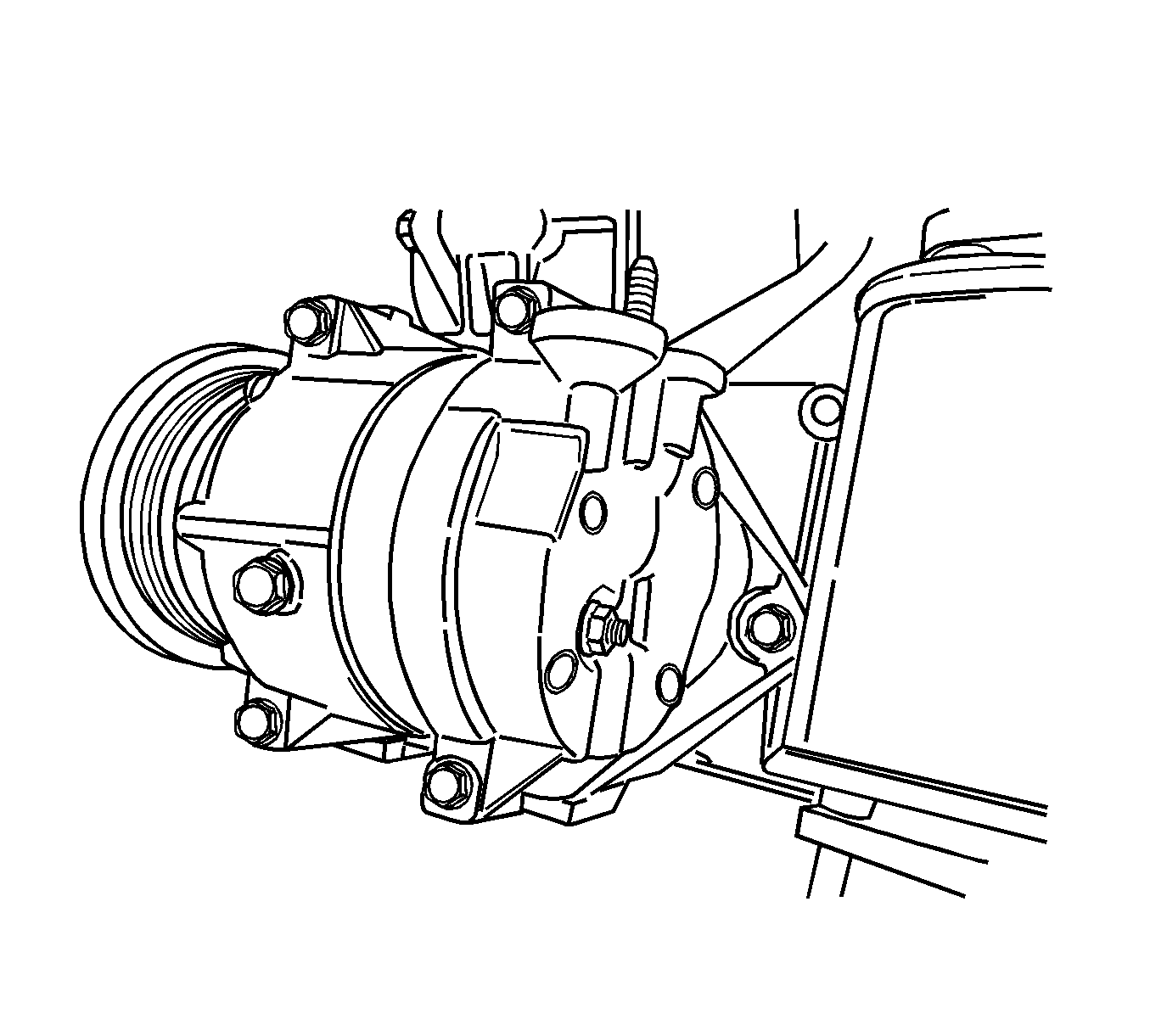

    Fig 1: Removal Of A/C Compressor
    GM1241695Courtesy of GENERAL MOTORS CORP.
  1. Add oil to the new compressor. Use the exact amount of oil that you drained from the old compressor.
  2. Install the compressor.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the compressor-to-bracket mounting bolts.

    Tighten:  Tighten the compressor bracket bolt to 35 N.m (26 lb ft).

    4. Fig 2: View Of Serpentine Accessory Drive Belt Tensioner
    GM1241549Courtesy of GENERAL MOTORS CORP.
  4. Install the serpentine accessory drive bolt.
  5. Lower the vehicle.

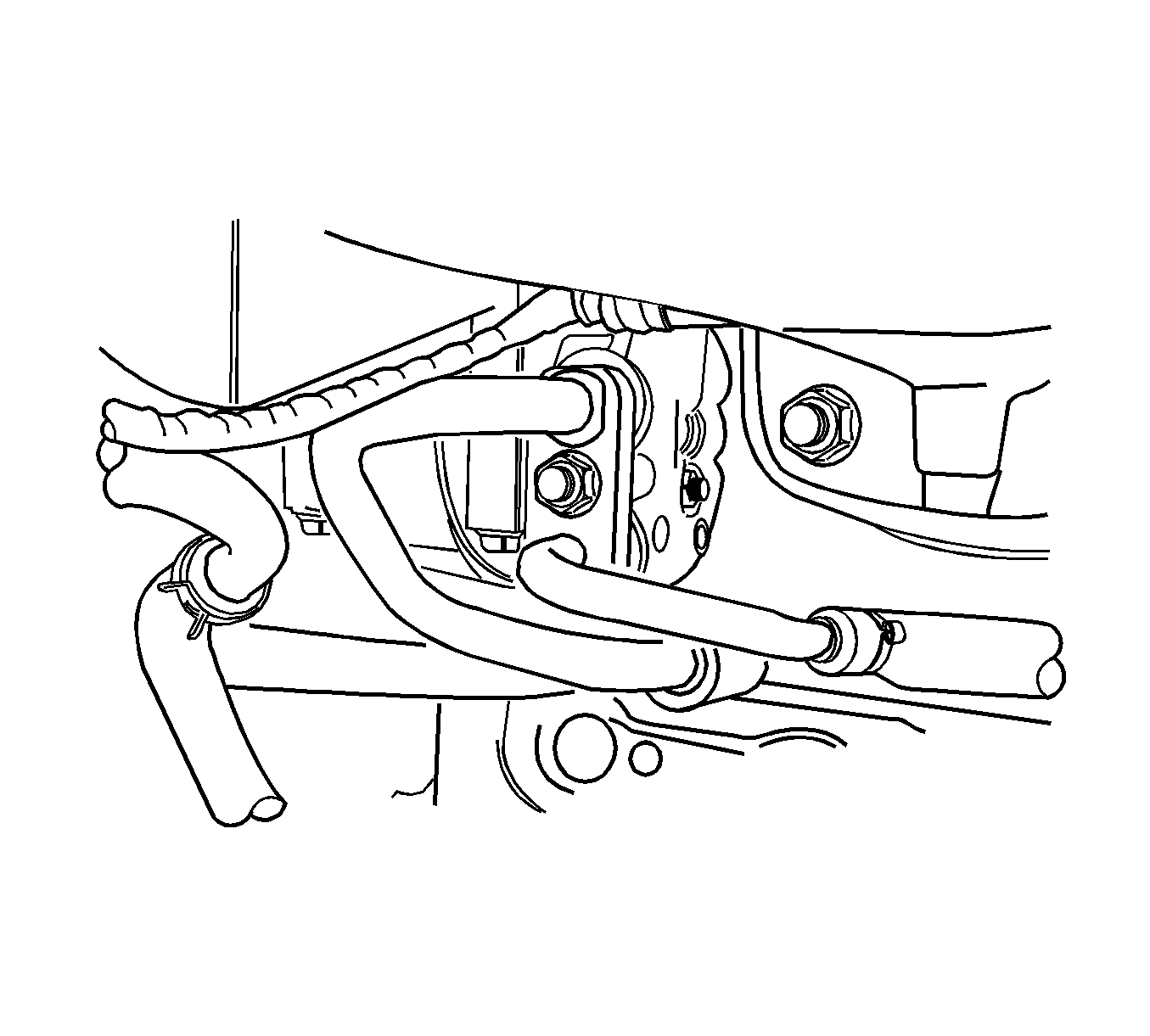

    6. Fig 3: Compressor A/C Hose Assembly, Connector Block & Fitting Nut
    GM1251945Courtesy of GENERAL MOTORS CORP.
  6. Install new O-ring to the A/C hose assembly connector block fitting.
  7. Install the compressor hose assembly connector block fitting and tighten the retaining nut.

    Tighten:  Tighten the A/C system hose connector retaining nut to 33 N.m (24 lb ft).

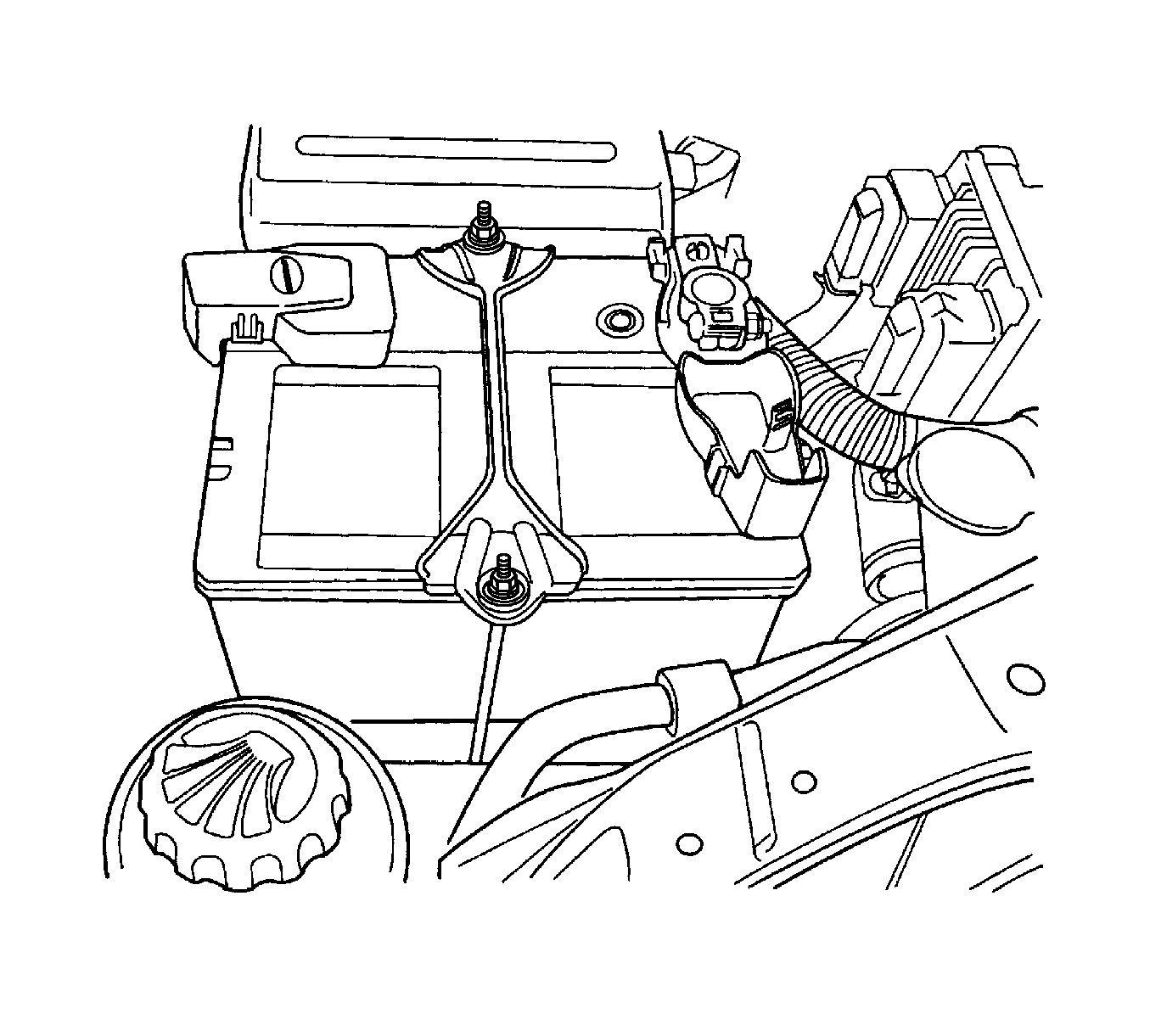

    8. Fig 4: Locating Battery
    GM1251969Courtesy of GENERAL MOTORS CORP.
  8. Connect the electrical connector at the compressor.
  9. Connect the negative battery cable.
  10. Evacuate and recharge the A/C system. Refer to Refrigerant Recovery and Recharging .
