Installation Procedure

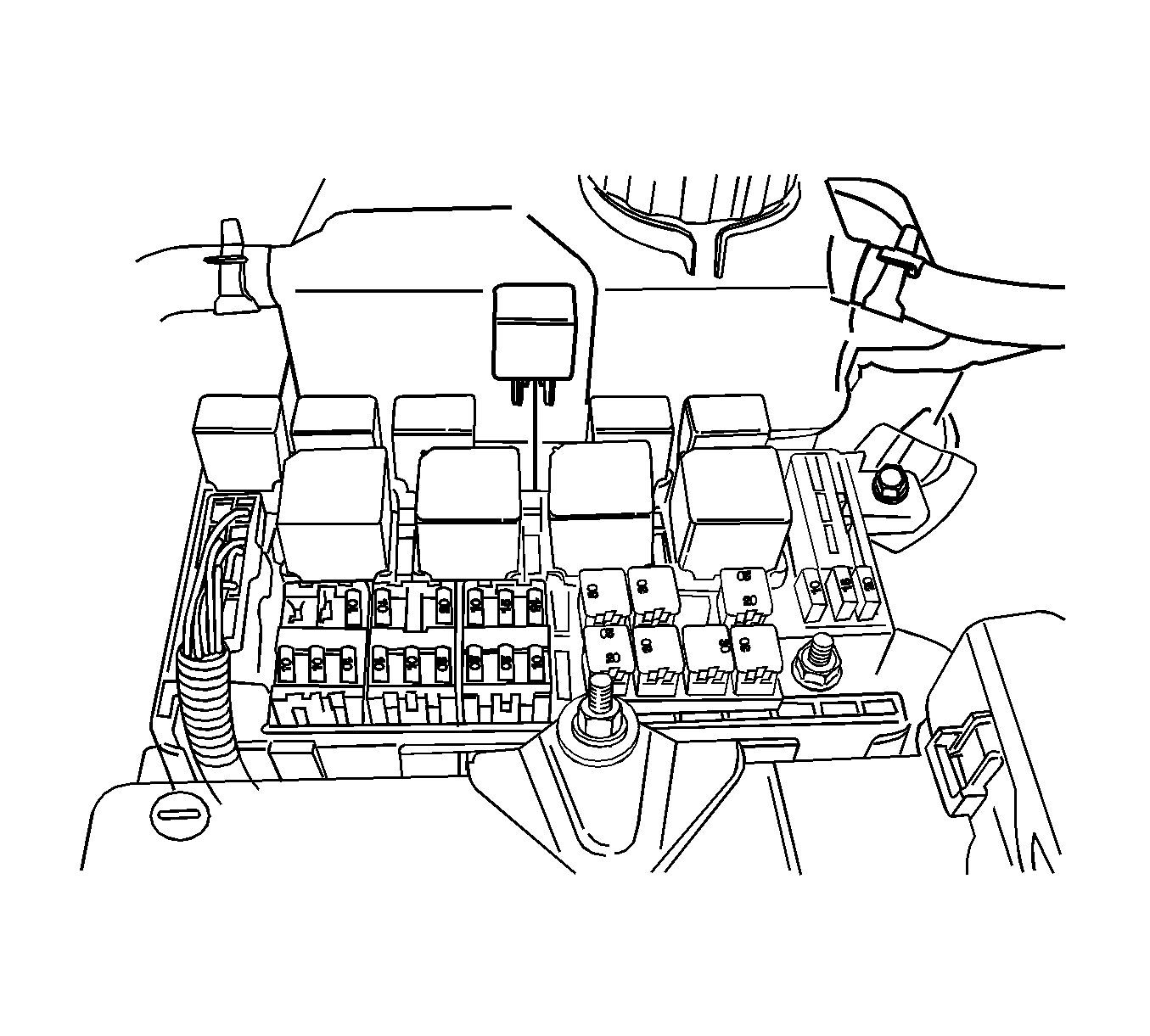

    Fig 1: Fuse Junction Box & Engine Compartment
    GM1251933Courtesy of GENERAL MOTORS CORP.
  1. Align the relay terminal contacts with the base receptacle.
  2. Push the relay into the base until it is seated.
  3. Connect the negative battery cable.
