Transmission ID and VIN Derivative Location (4T80-E)

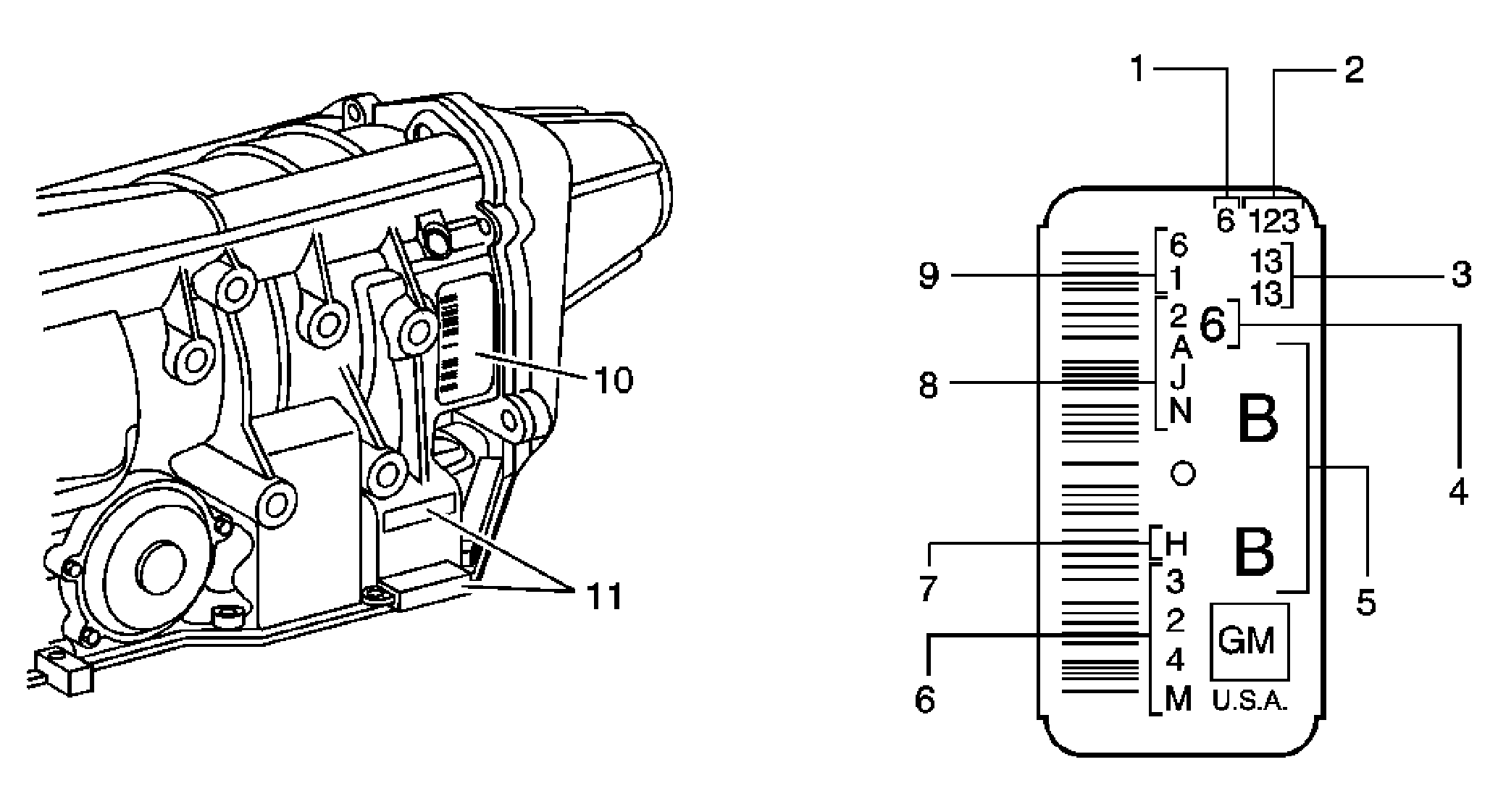

Fig 1: Locating Transmission ID and VIN Derivative (4T80-E)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Calendar Year 6 = 2006
2	Julian Date of the Year
3	Shift and Line Number
4	Calendar Year
5	Model
6	Serial Number in Base Code 31
7	Plant
8	Broadcast Date
9	Transaxle
10	Transaxle ID Tag Location
11	Transaxle Partial VIN Location
