Transfer Case Identification (Isuzu T150)

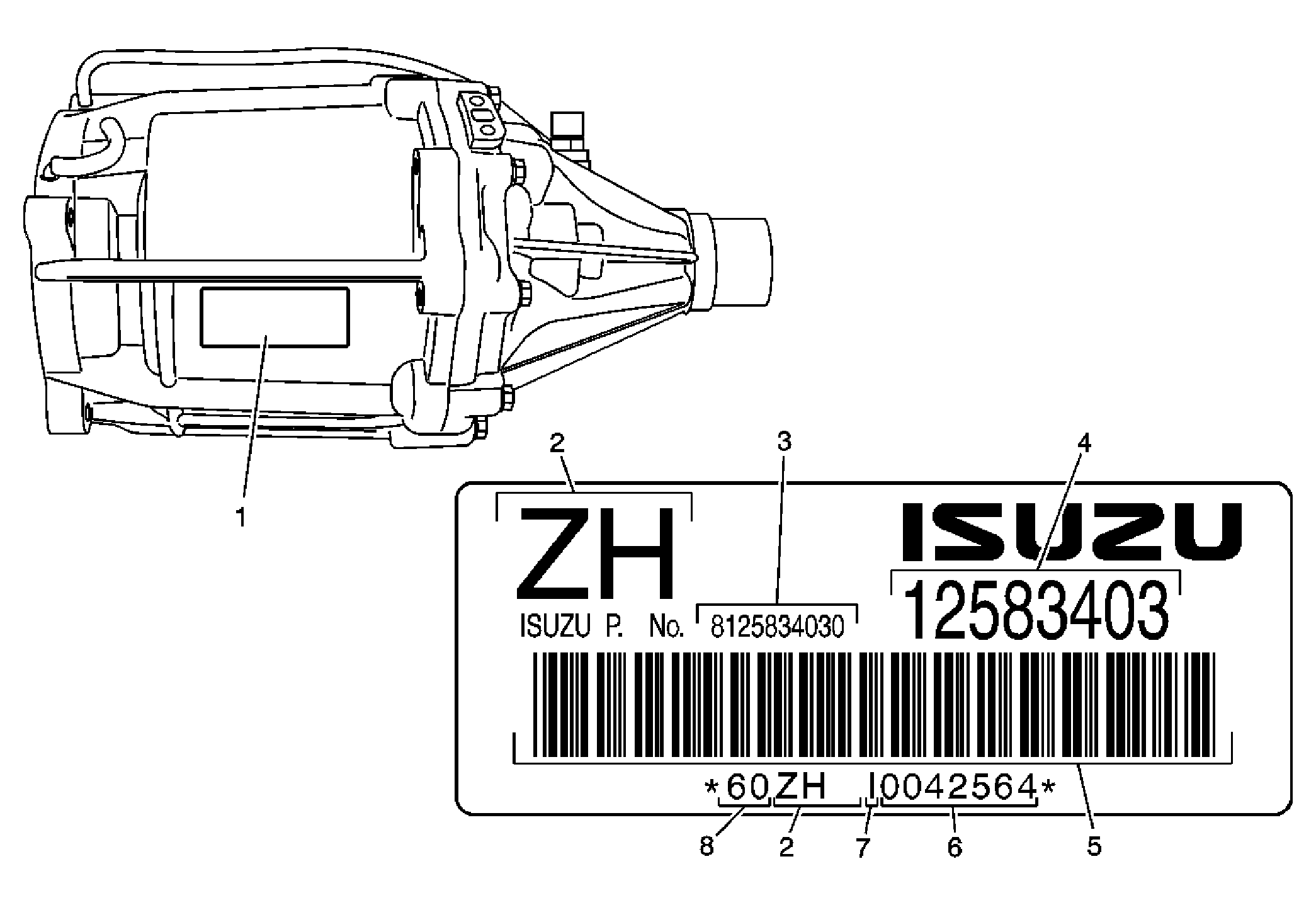

Fig 1: Locating Transfer Case Identification Tag (Isuzu T150)
GM1442989Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Bar Code Location
2 Broadcast Code
2 Broadcast Code
3 Isuzu Transfer Part Number
4 G/M Transfer Part Number
5 Bar Code
6 Product Serial Number
7 Supplier Code
8 Product Code
