Wiper/Washer Component Views (Notchback)
WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Multifunction Alarm Module |
| 2 |
Ignition Key Alarm Switch |
| 3 |
Defogger Switch |
| 4 |
Clock/Tele Tail |
| 5 |
Cluster |
| 6 |
Radio |
| 7 |
Tweeter Right/Left Similar |
| 8 |
Cigar Lighter |
| 9 |
Wiper Switch |
| 10 |
Blower Switch |
| 11 |
Horn Switch |
| 12 |
Headlamp Switch |

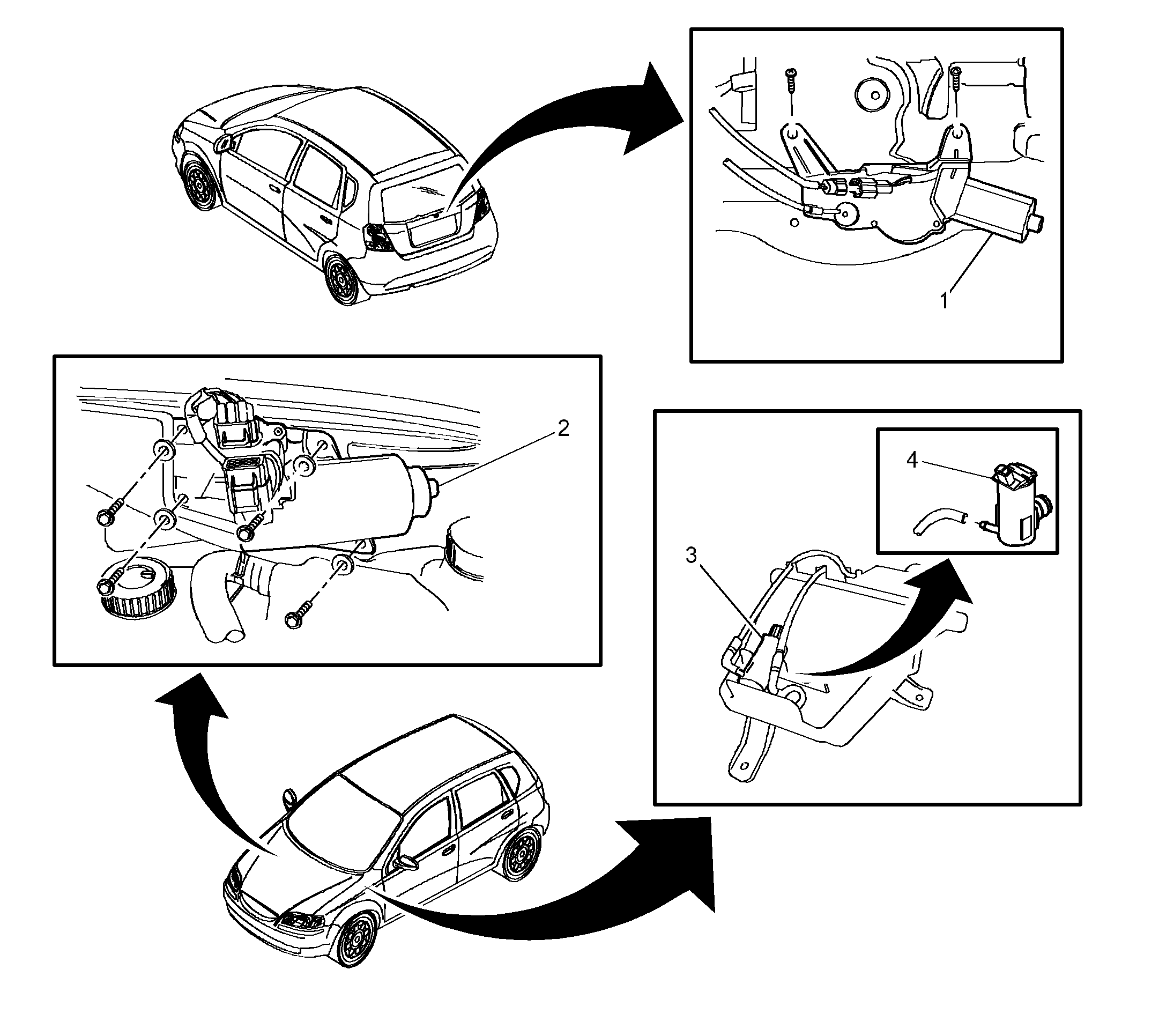

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Wiper Motor - Rear |
| 2 |
Windshield Wiper Motor |
| 3 |
Windshield/Washer Fluid Pump - Front |
| 4 |
Windshield/Washer Fluid Pump - Rear |
