Engine Cooling Schematics

Fig 1: Cooling Fan Schematics (1.2L)
GM1291853Courtesy of GENERAL MOTORS CORP.

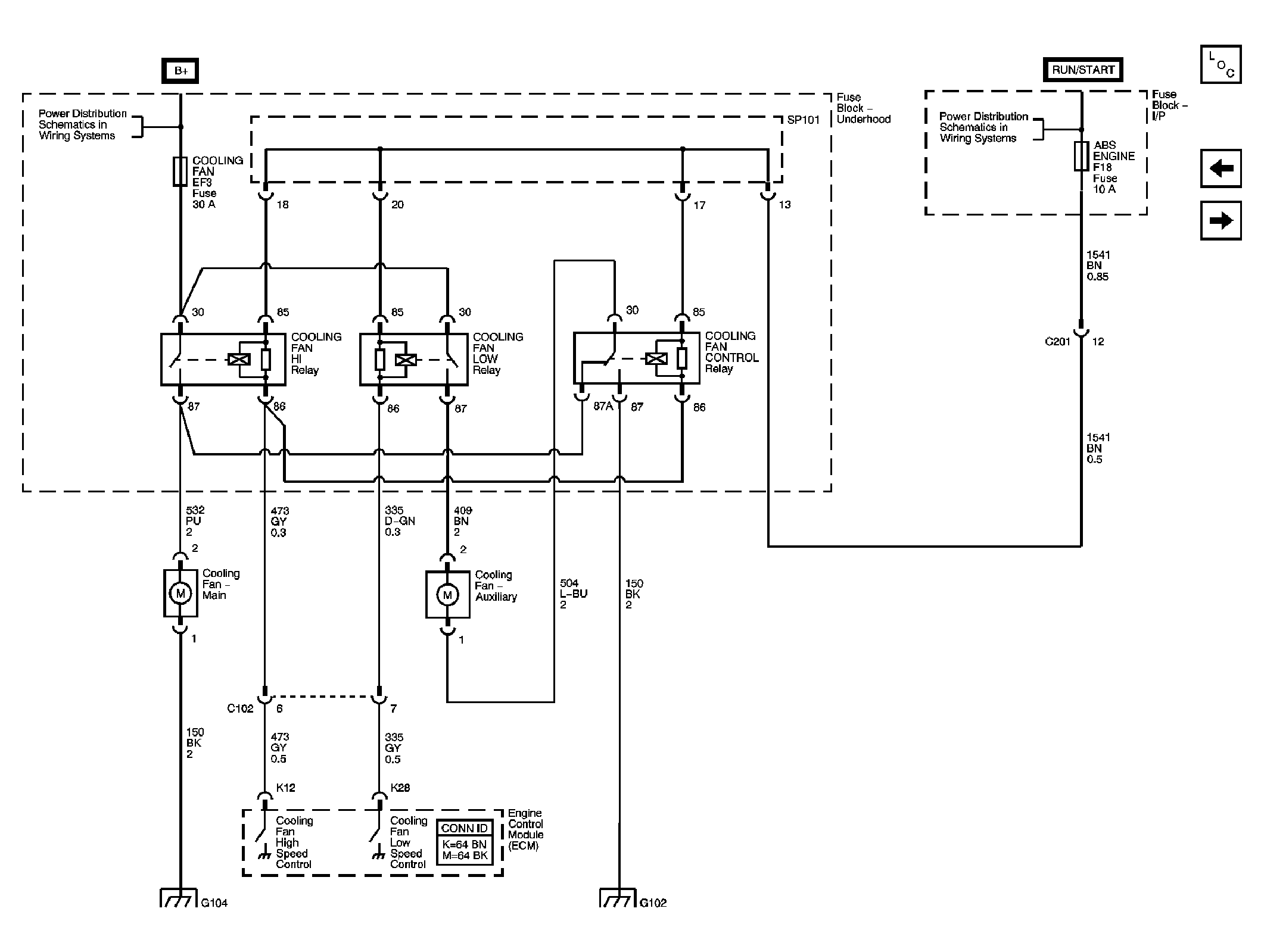

Fig 2: Cooling Fan Schematics (1.4L, 1.5L)
GM1679819Courtesy of GENERAL MOTORS CORP.

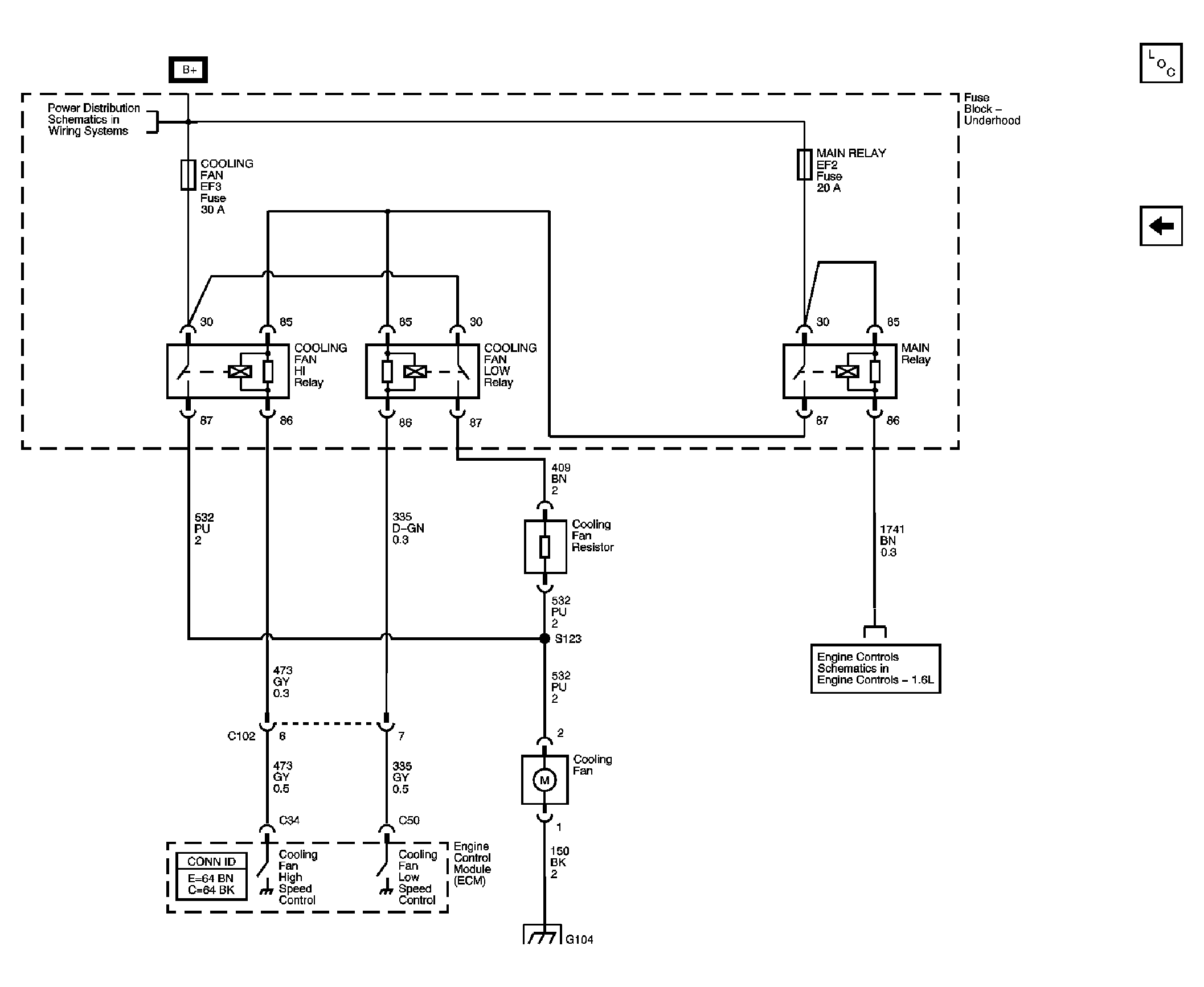

Fig 3: Cooling Fan Schematics (1.6L)
GM1679823Courtesy of GENERAL MOTORS CORP.
