Instrument Cluster Schematics

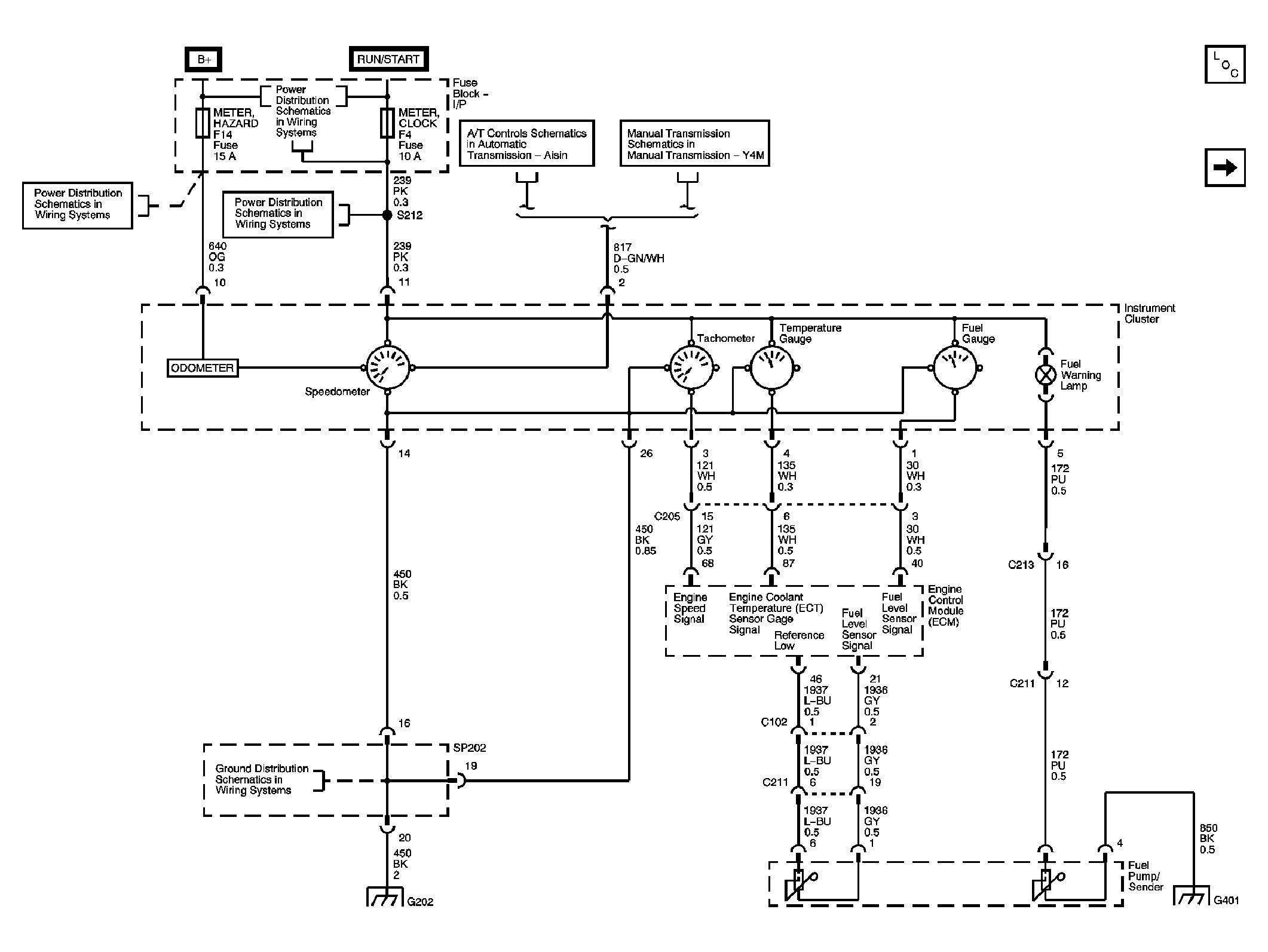

Fig 1: 1.2L Gauges

Courtesy of GENERAL MOTORS CORP.

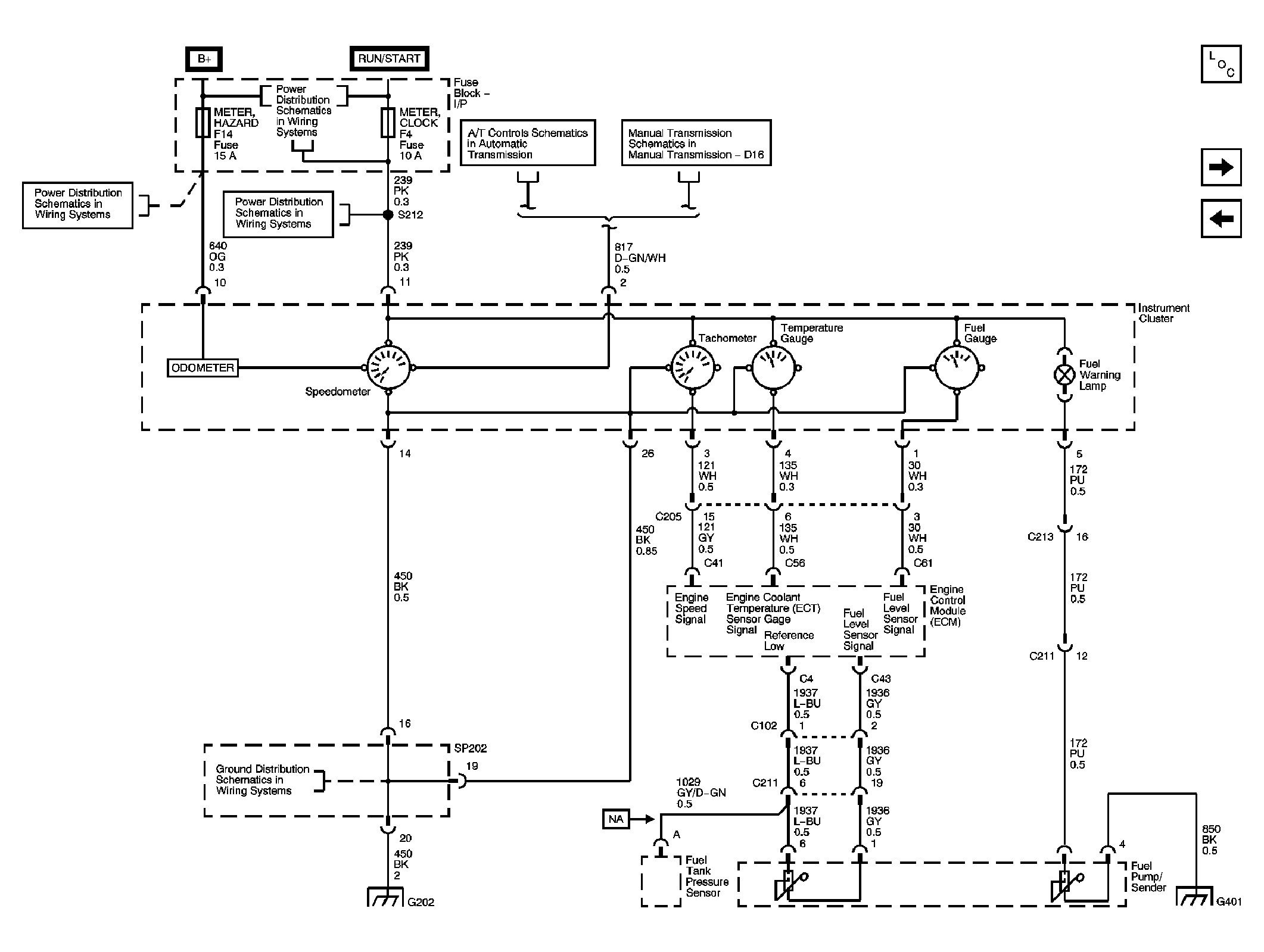

Fig 2: 1.4L, 1.5L Gauges

Courtesy of GENERAL MOTORS CORP.

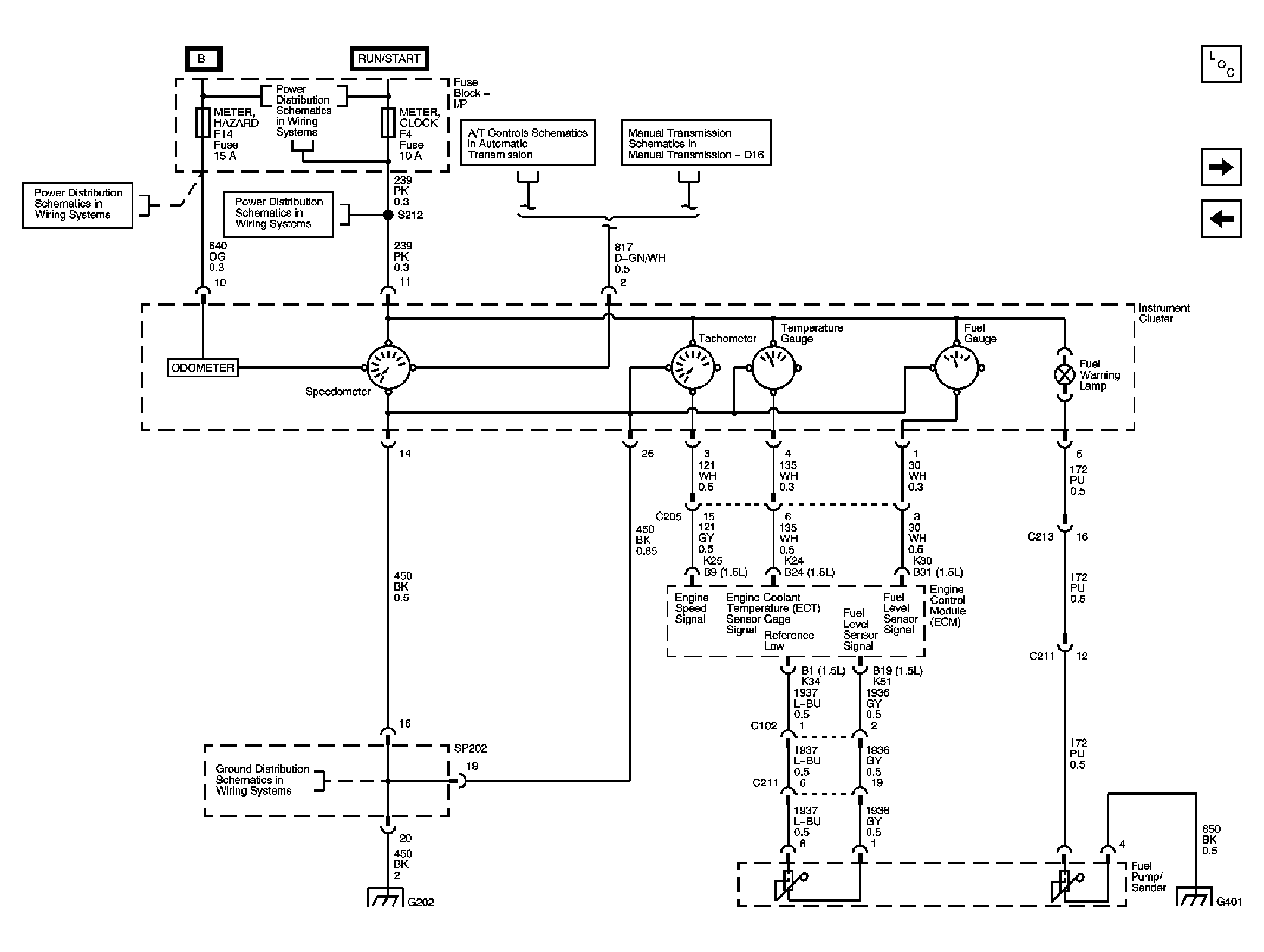

Fig 3: 1.6L Gauges

Courtesy of GENERAL MOTORS CORP.

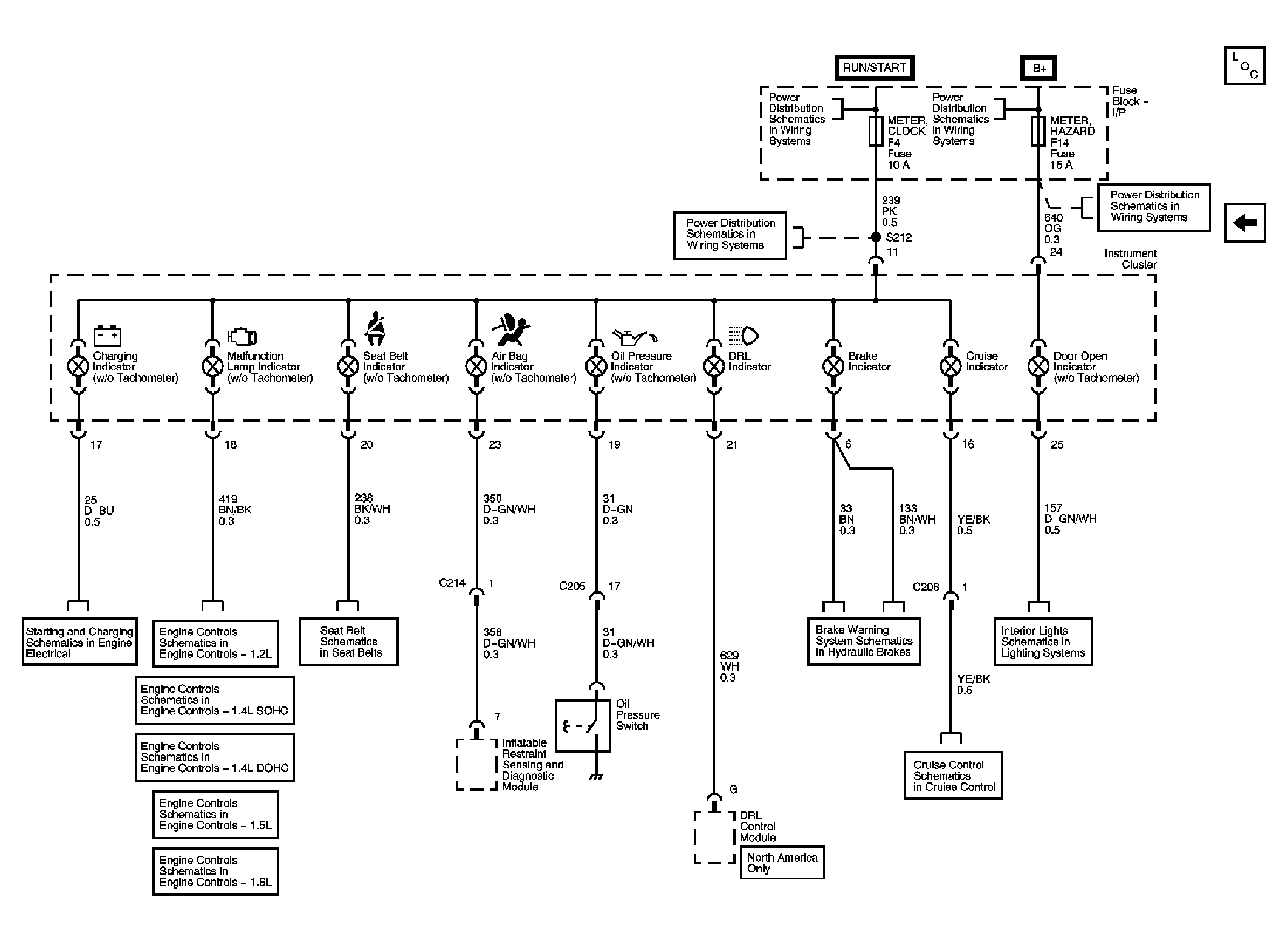

Fig 4: Indicators (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

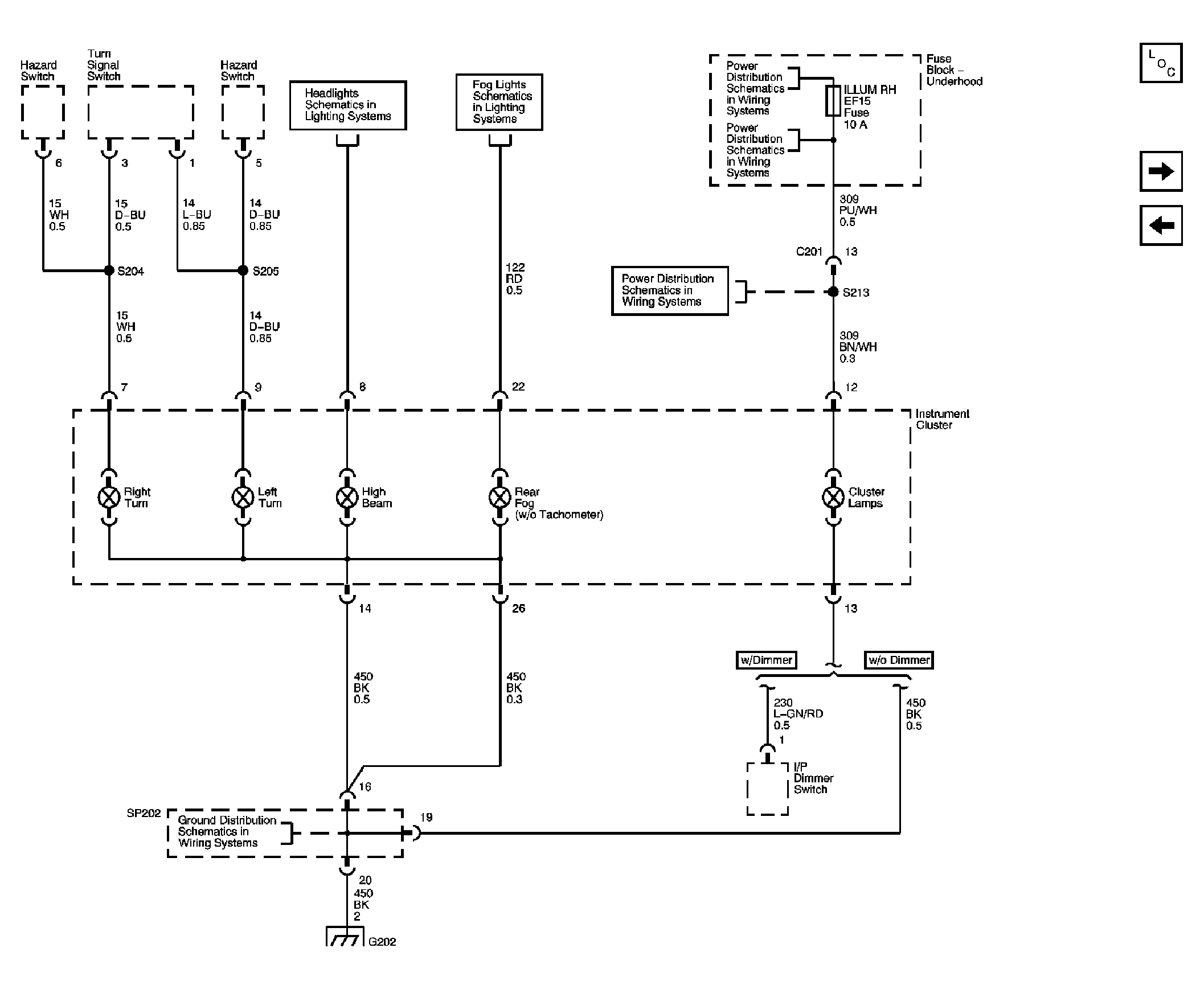

Fig 5: Indicators (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
