Driver Information System Schematics

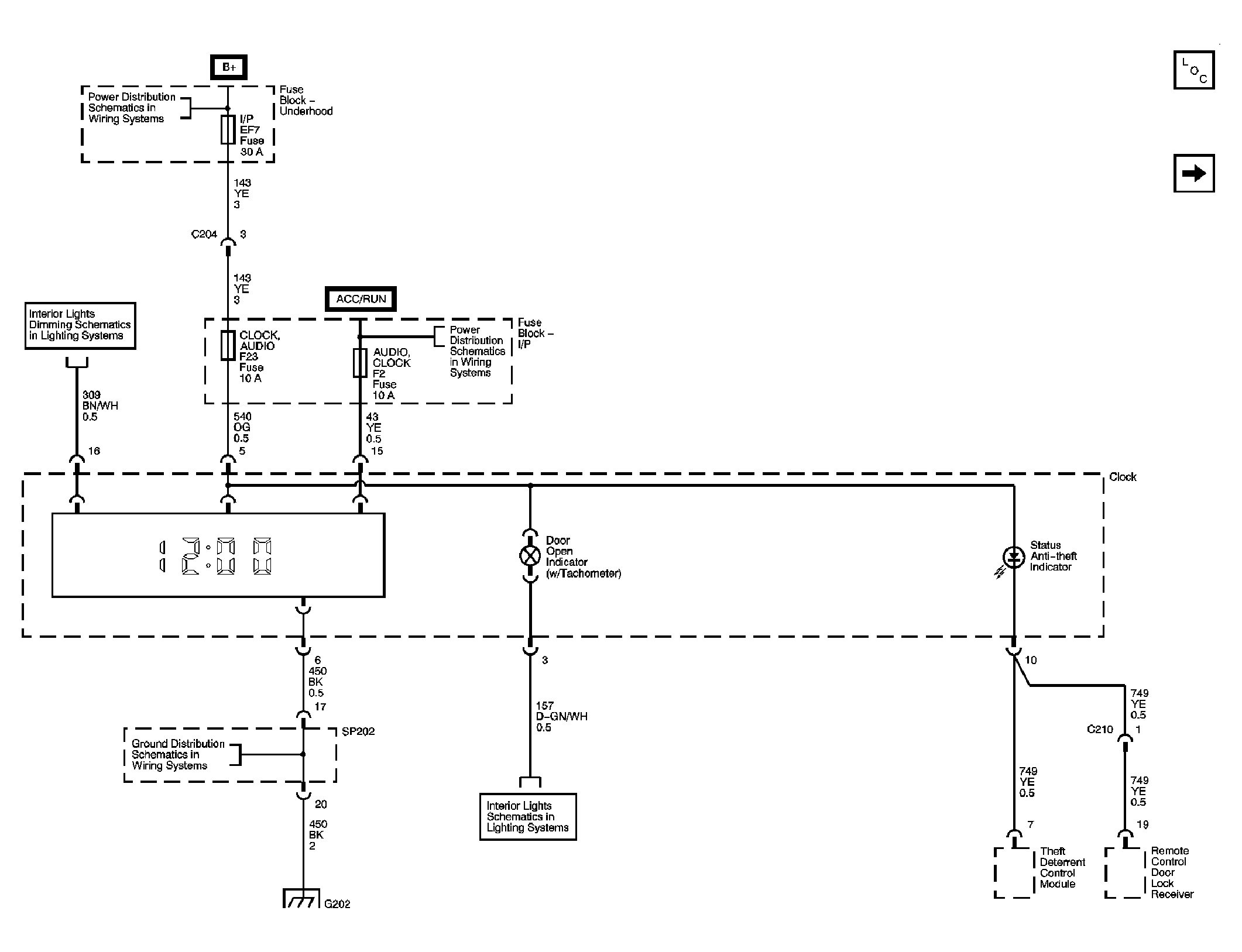

Fig 1: Clock
Courtesy of GENERAL MOTORS CORP.

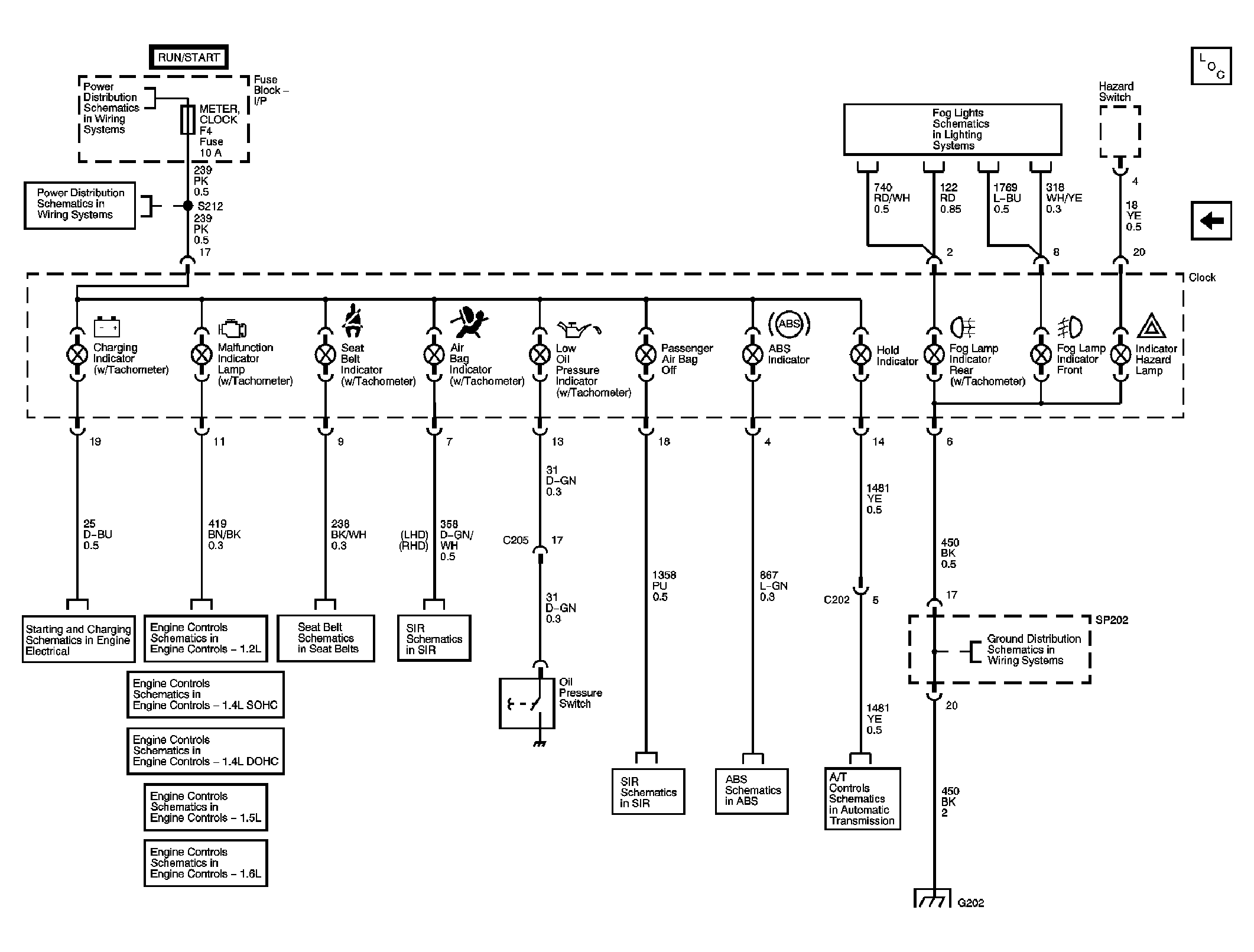

Fig 2: Indicators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
