Horns Component Views

Fig 1: I/P Components Component Views

GM1456637

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Multifunction Alarm Module
2	Ignition Key Alarm Switch
3	Defogger Switch
4	Clock/Tele Tail
5	Cluster
6	Radio
7	Tweeter Right/Left Similar
8	Cigar Lighter
9	Wiper Switch
10	Blower Switch
11	Horn Switch
12	Headlamp Switch

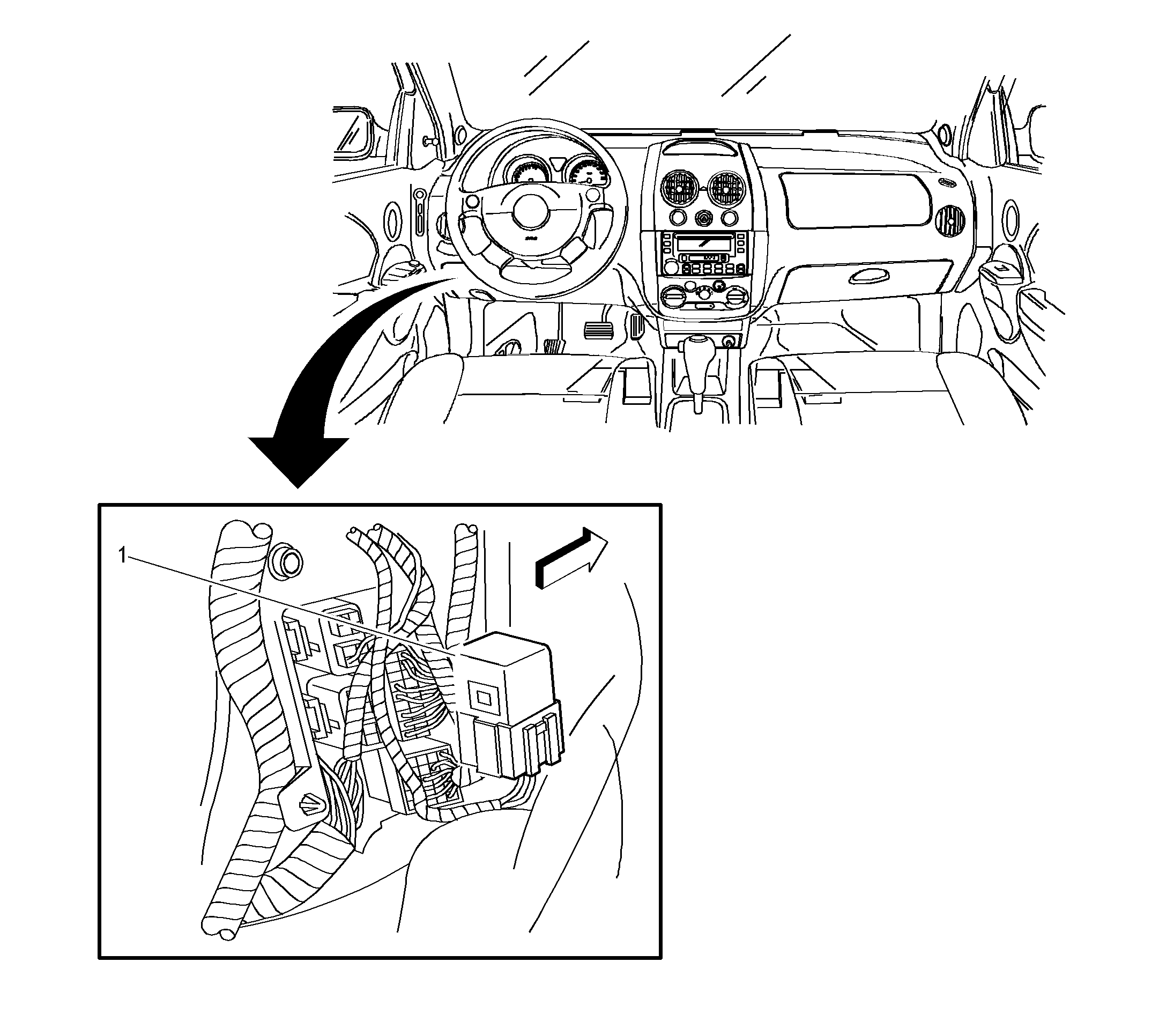

Fig 2: Horn Relay Component View

GM1495993

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Relay

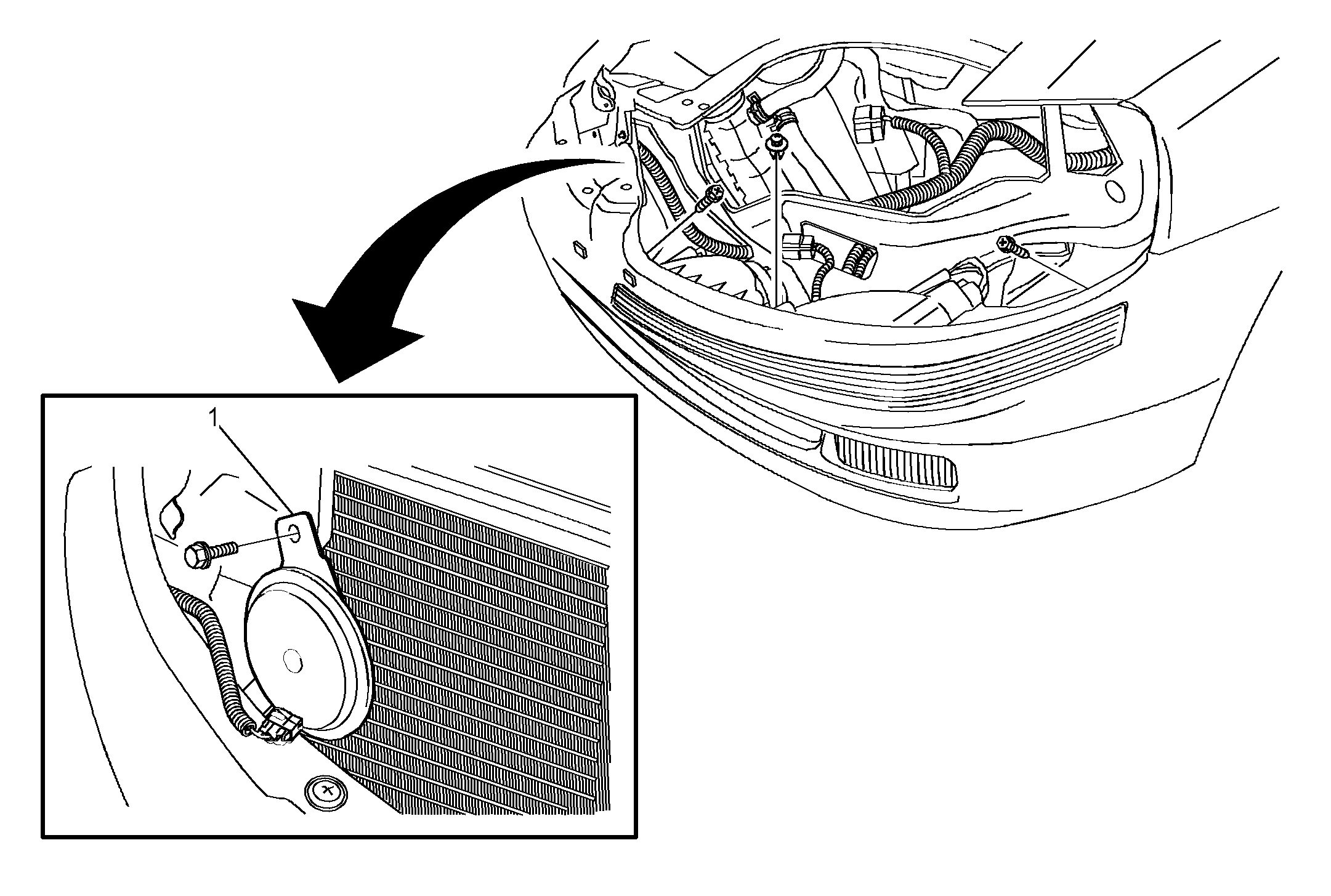

Fig 3: Horns Component View

GM1467221

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn
