ABS Schematics

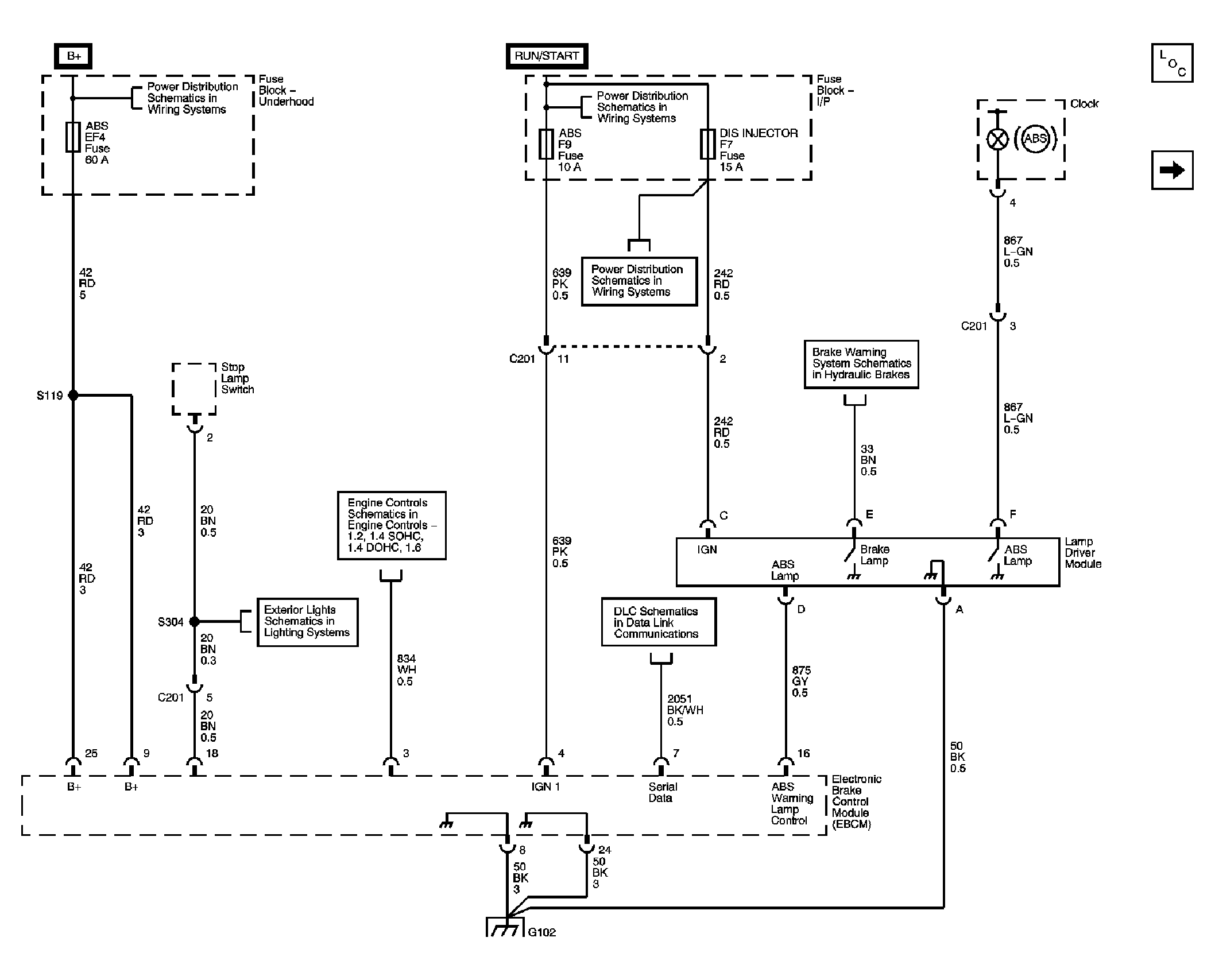

Fig 1: Power, Ground and Inputs
GM1679816Courtesy of GENERAL MOTORS CORP.

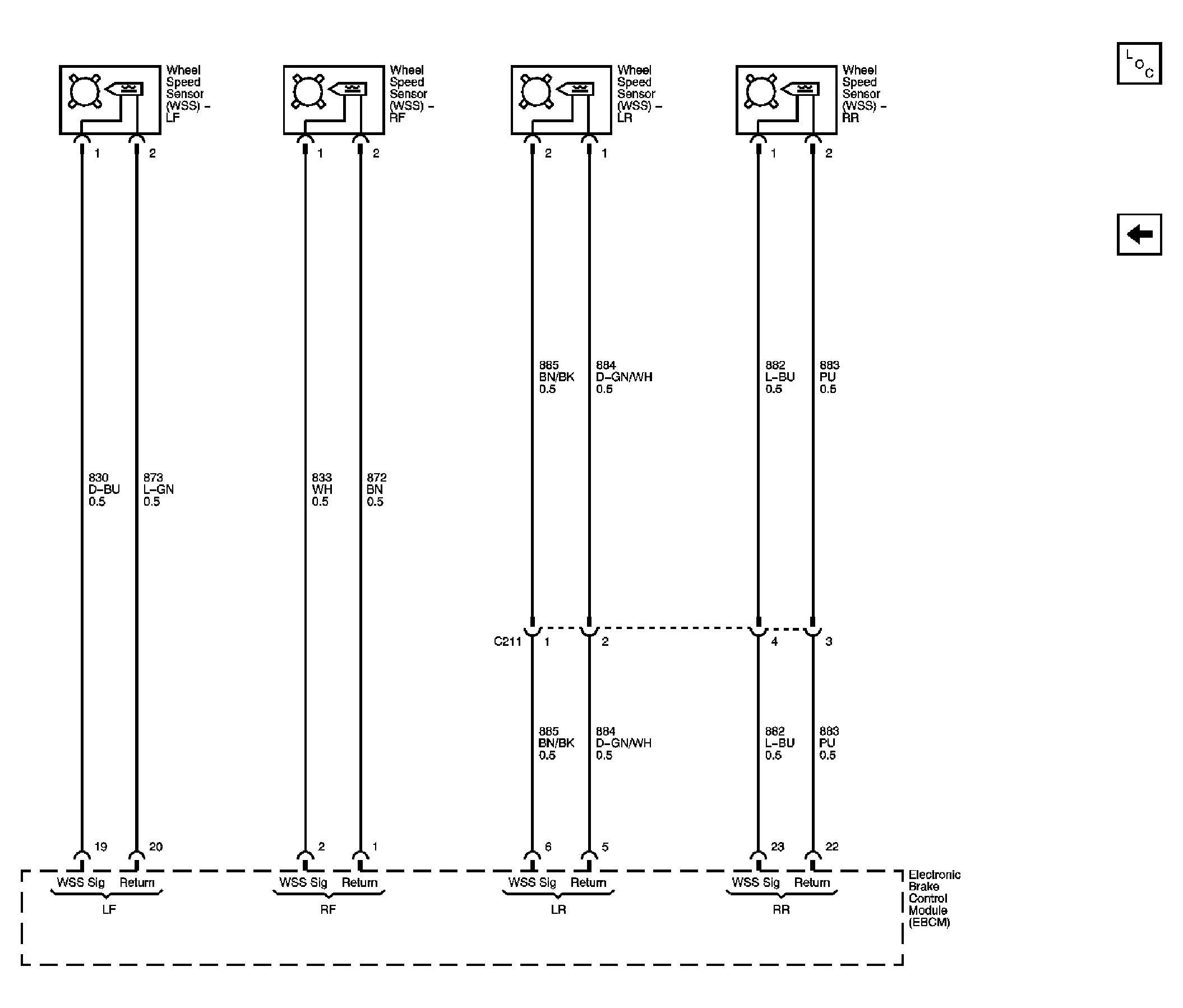

Fig 2: Wheel Speed Sensors
GM1679817Courtesy of GENERAL MOTORS CORP.
