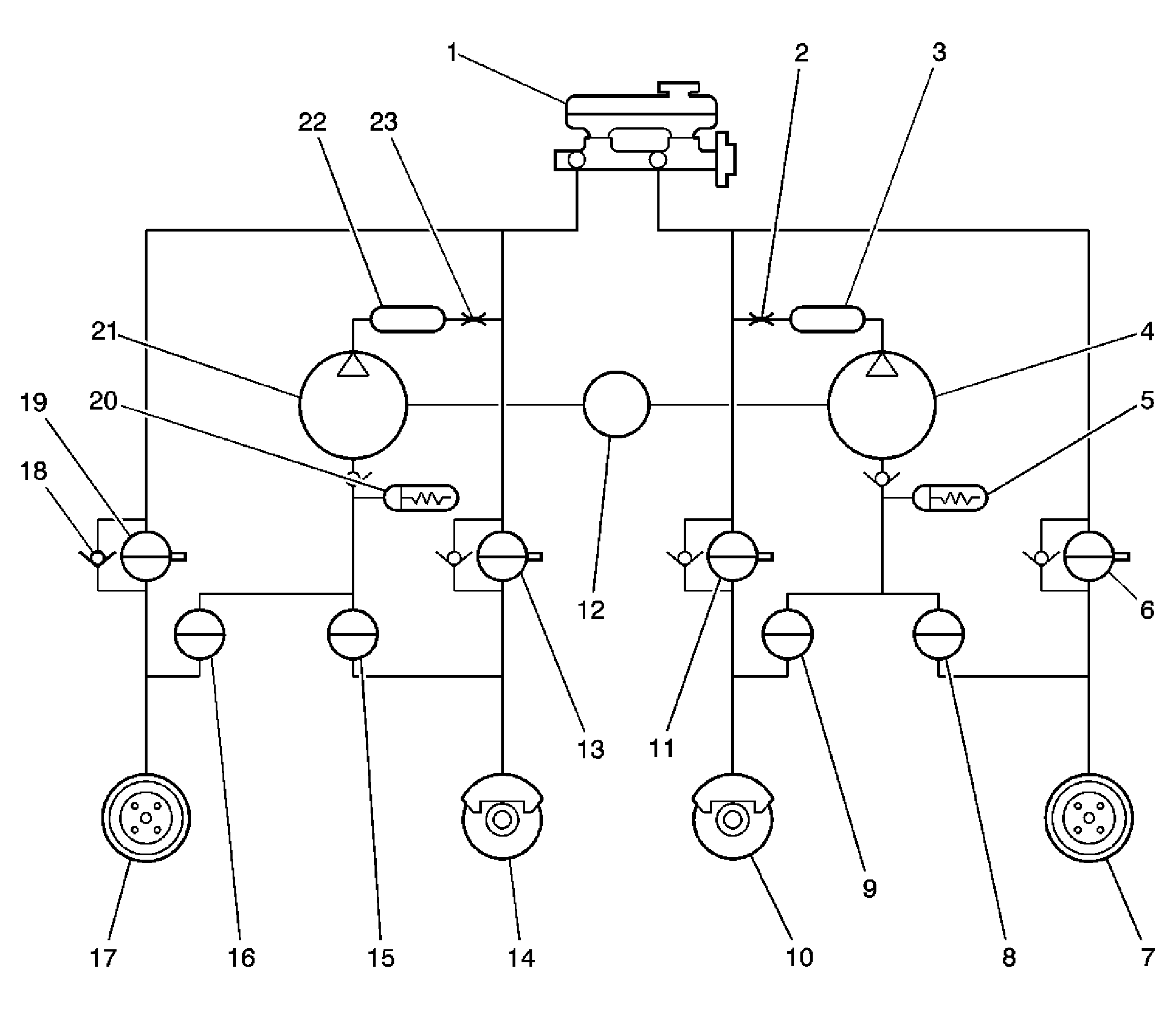

Antilock Braking Mode - Hold
| Callout | Component Name |
|---|---|
| 1 | Master Cylinder |
| 2 | Orifice |
| 3 | Damper |
| 4 | Positive Displacement Pump |
| 5 | Accumulator |
| 6 | Inlet Valve |
| 7 | Right Rear Drum |
| 8 | Outlet Valve |
| 9 | Outlet Valve |
| 10 | Left Front Caliper |
| 11 | Inlet Valve |
| 12 | Electric Motor |
| 13 | Inlet Valve |
| 14 | Right Front Caliper |
| 15 | Outlet Valve |
| 16 | Outlet Valve |
| 17 | Left Rear Drum |
| 18 | Check Valve |
| 19 | Inlet Valve |
| 20 | Accumulator |
| 21 | Positive Displacement Pump |
| 22 | Damper |
| 23 | Orifice |
When the electronic brake control module (EBCM) senses the wheel slip, the EBCM closes the inlet valve and keeps the outlet valve closed in the brake pressure modulator valve in order to isolate the system. This holds the pressure steady on the brake so that the hydraulic pressure does not increase or decrease.
