Theft Deterrent System Component Views

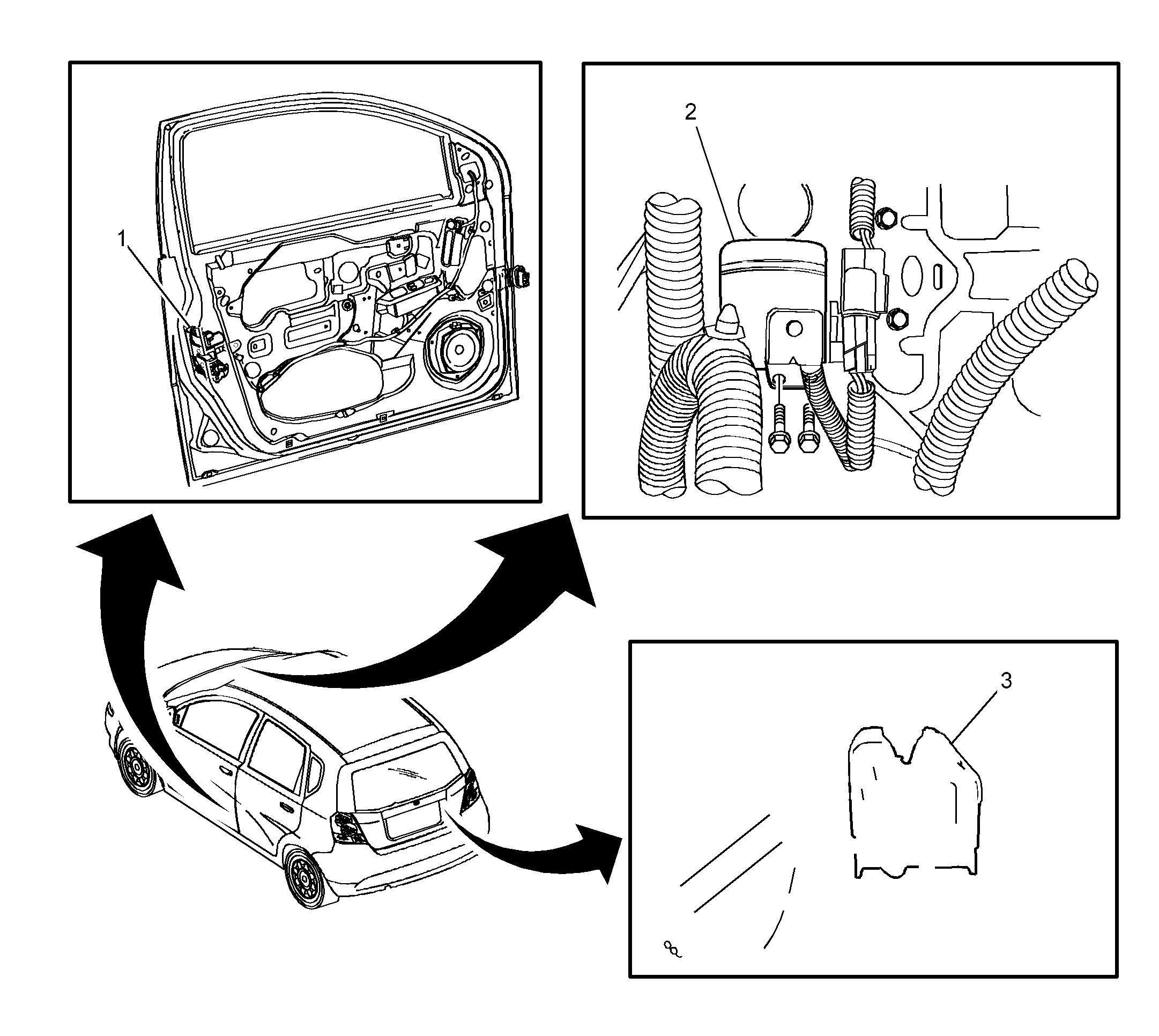

Fig 1: Content Theft Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Left - Right Similar
2	Theft Deterrent Alarm
3	Lock Cylinder Switch - Rear Compartment Lid

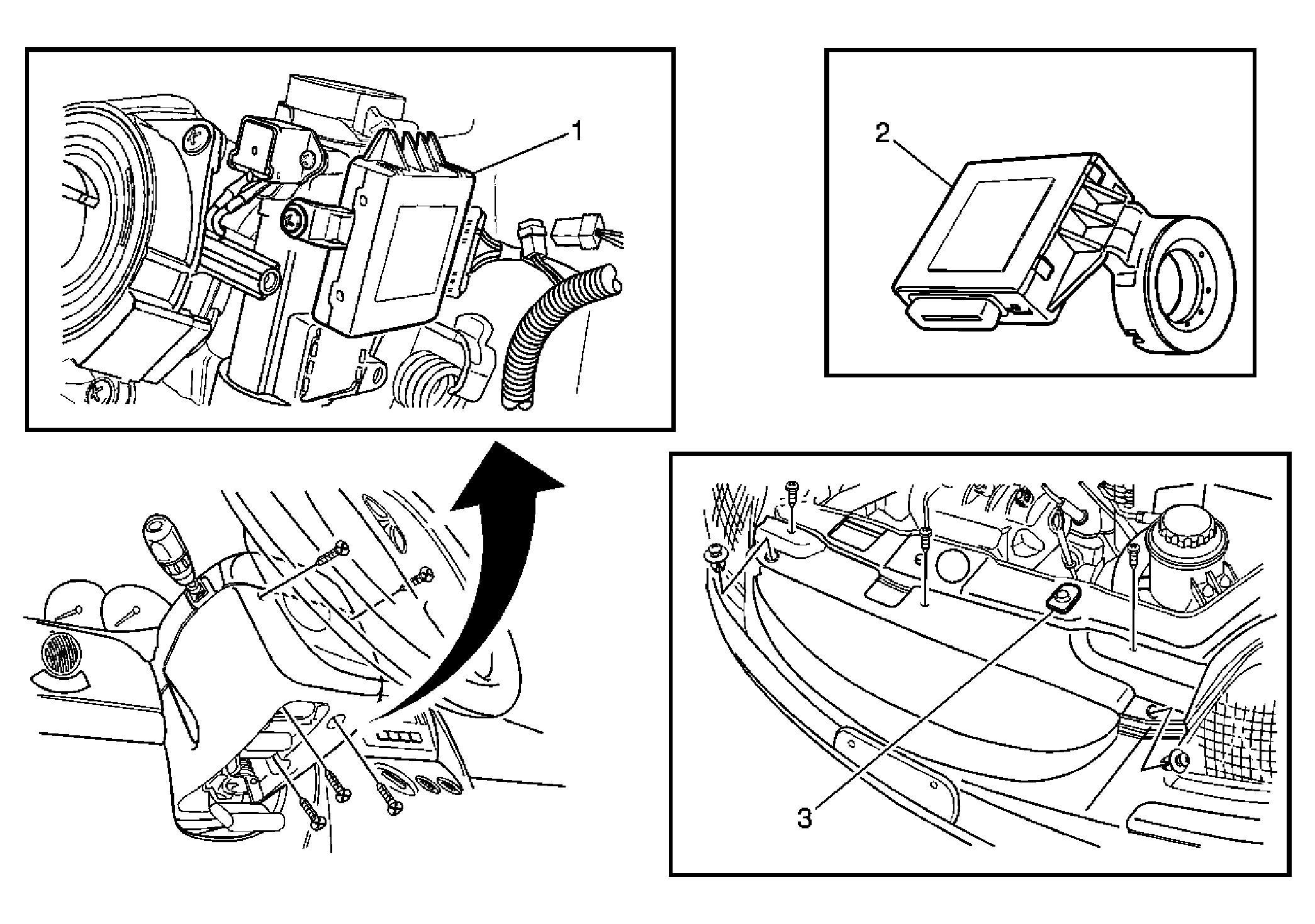

Fig 2: Vehicle Theft Deterrent System Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Control Module
2	Remote Control Door Lock Receiver (RCDLR)
3	Hood Ajar Switch
