Removal Procedure

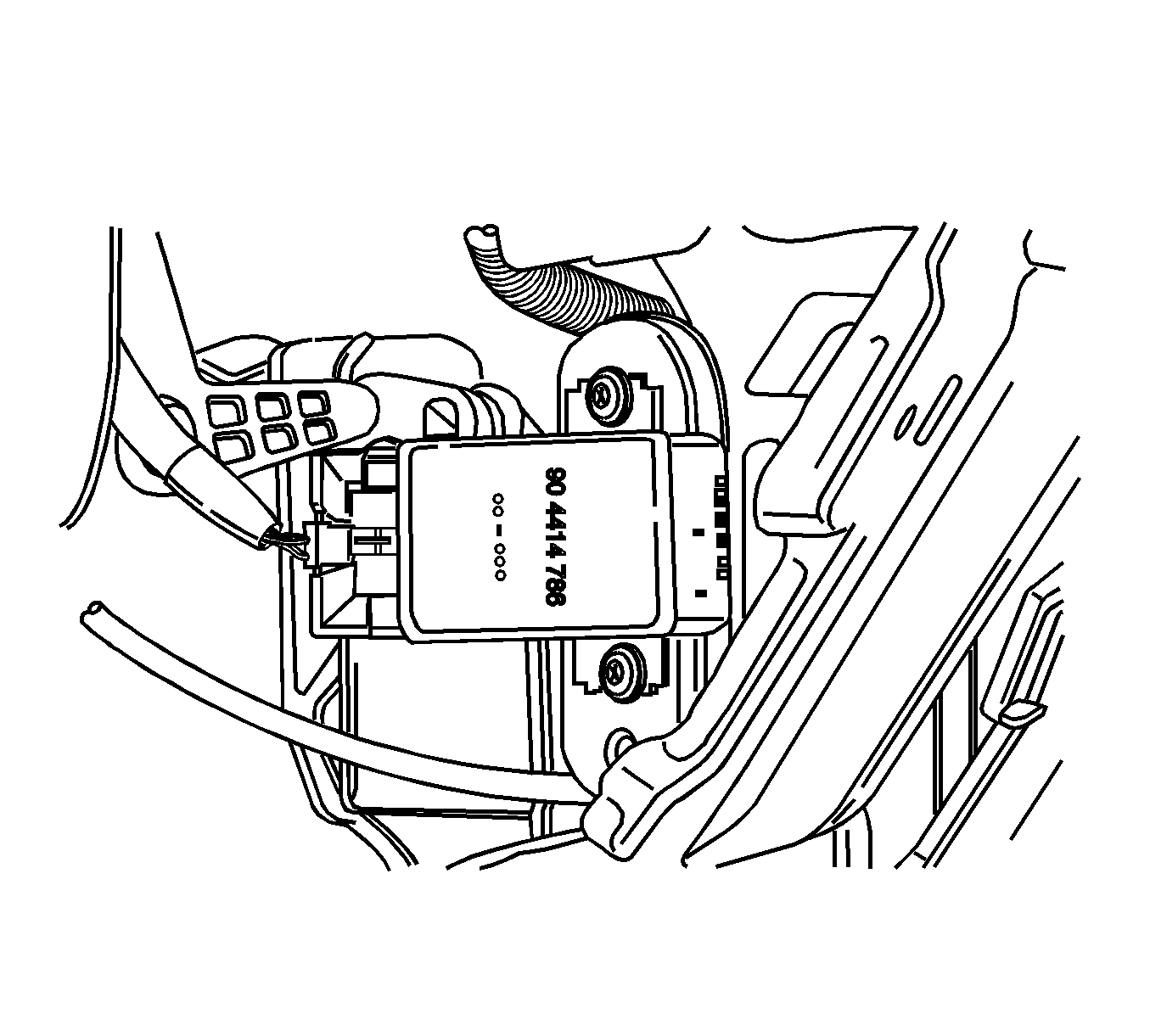

    Fig 1: View of Daytime Running Lap Module and Bolts
    GM1248415Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel lower cover.
  3. Reach underneath the instrument panel and remove the bolts and the daytime running lamp module.
  4. Disconnect the electrical connector.
