Engine Controls Schematics

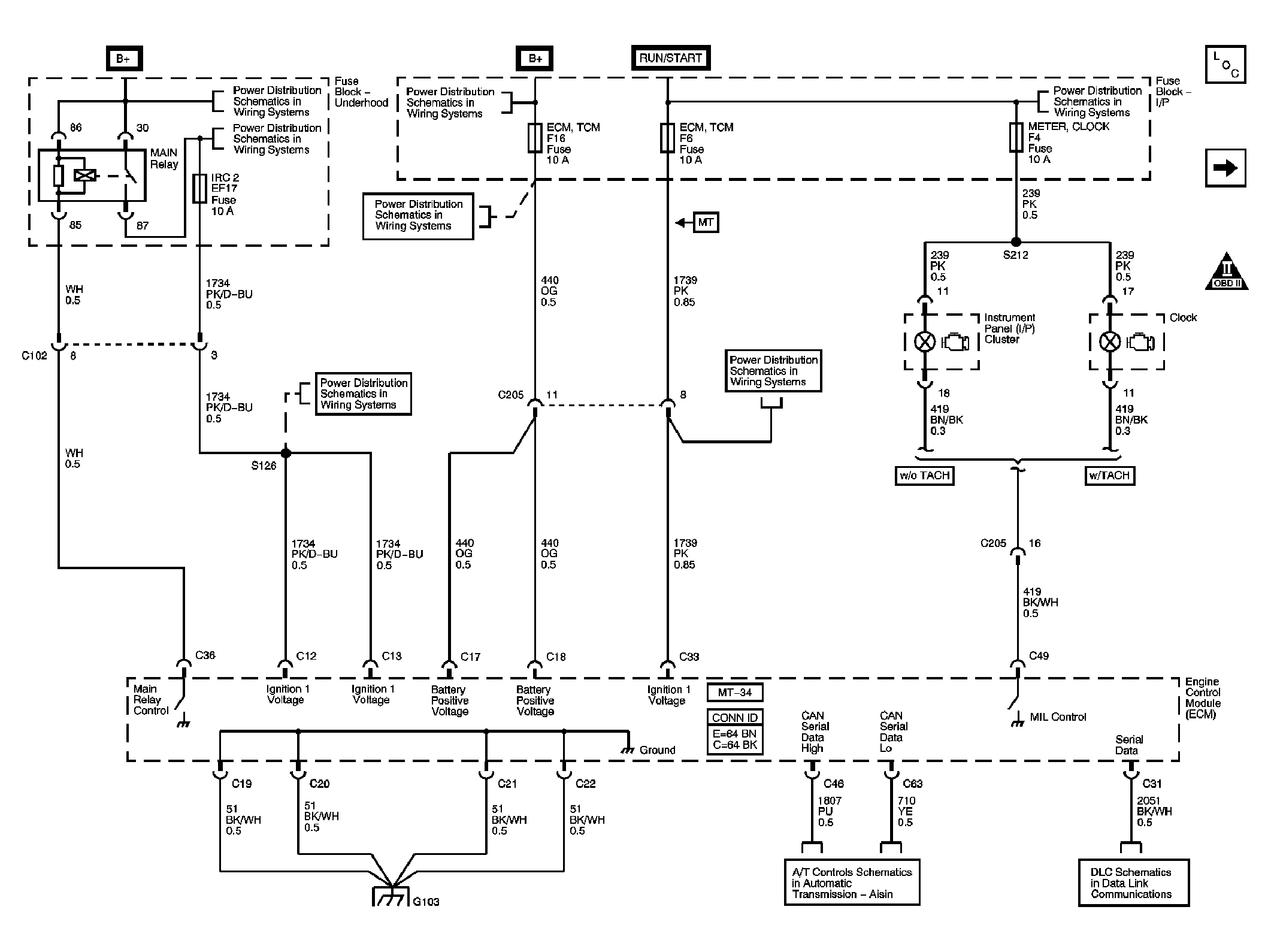

Fig 1: Engine Controls Power, Ground and MIL
GM1680149Courtesy of GENERAL MOTORS CORP.

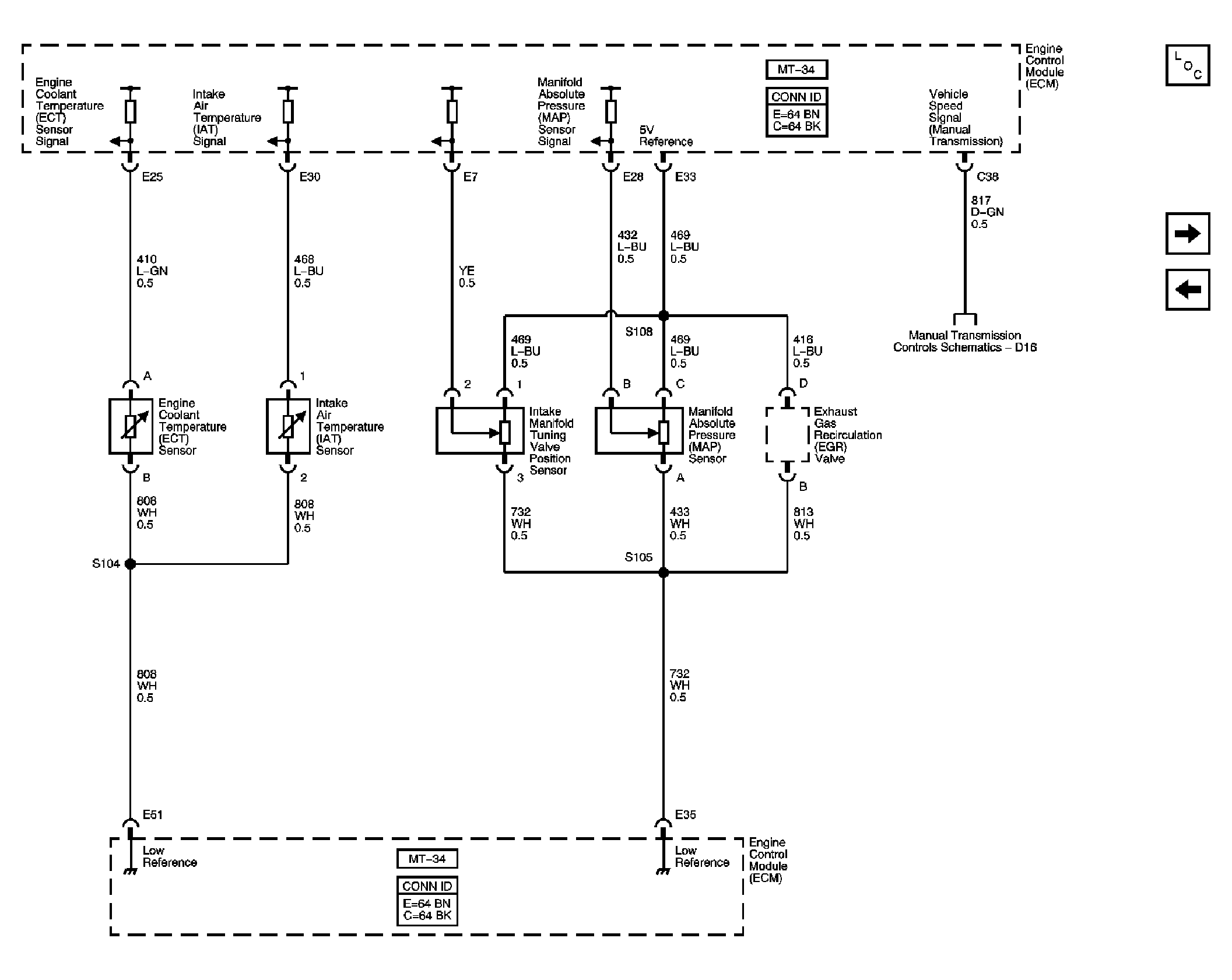

Fig 2: Engine Controls Data Sensors
GM1680155Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Controls Electronic Throttle Control
GM1680160Courtesy of GENERAL MOTORS CORP.

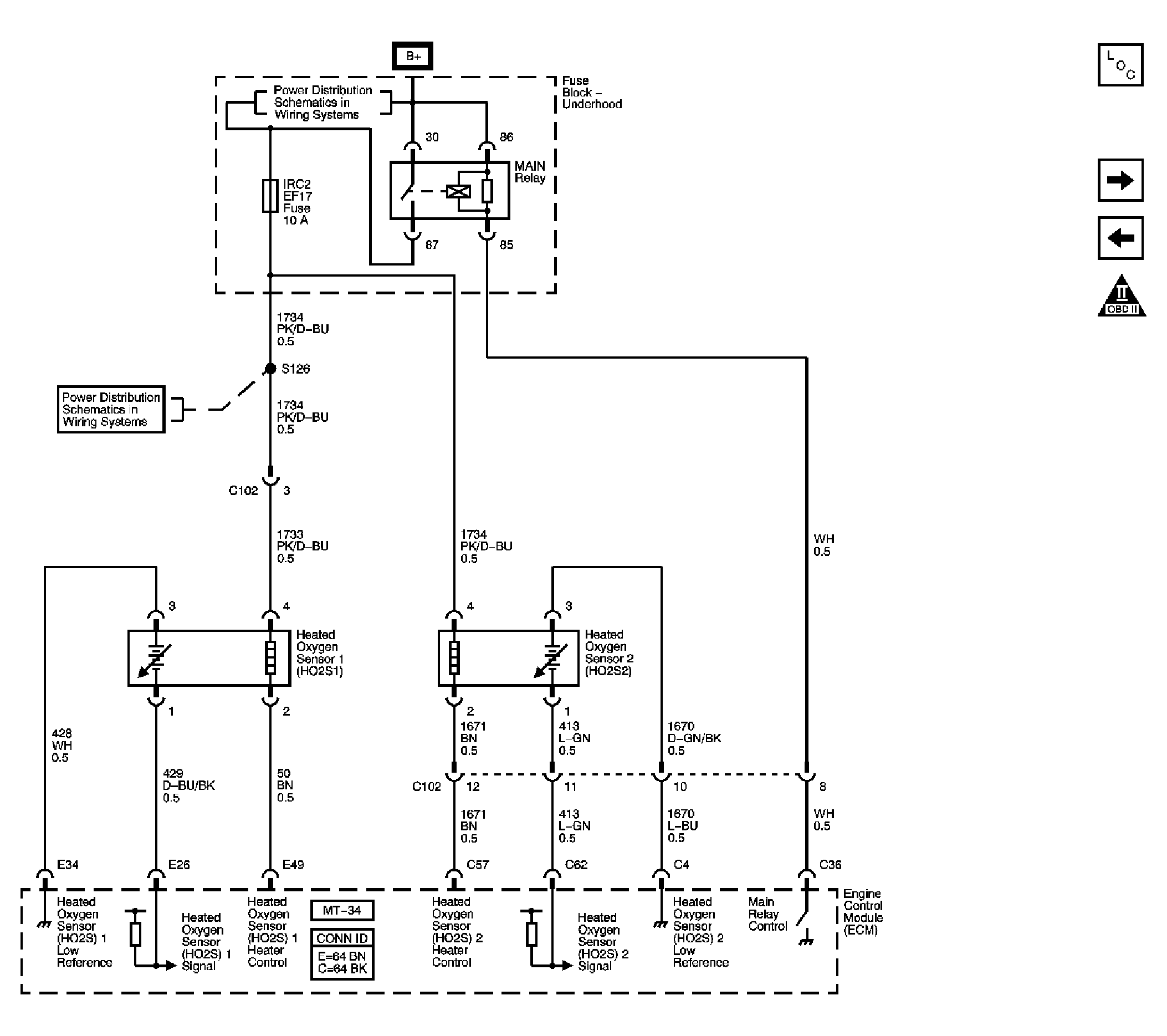

Fig 4: Engine Controls Oxygen Sensors
GM1680165Courtesy of GENERAL MOTORS CORP.

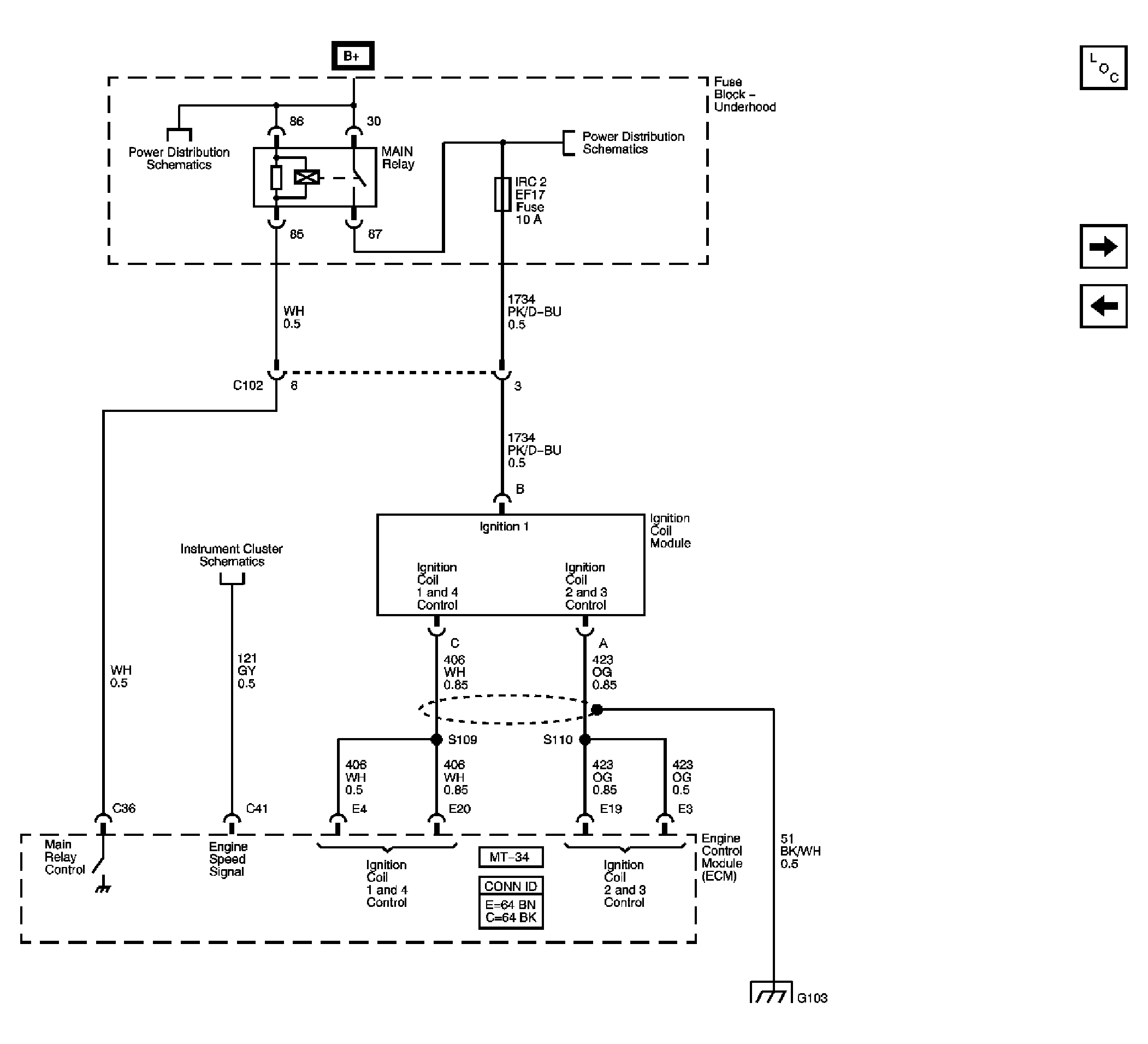

Fig 5: Engine Controls Ignition System
GM1680228Courtesy of GENERAL MOTORS CORP.

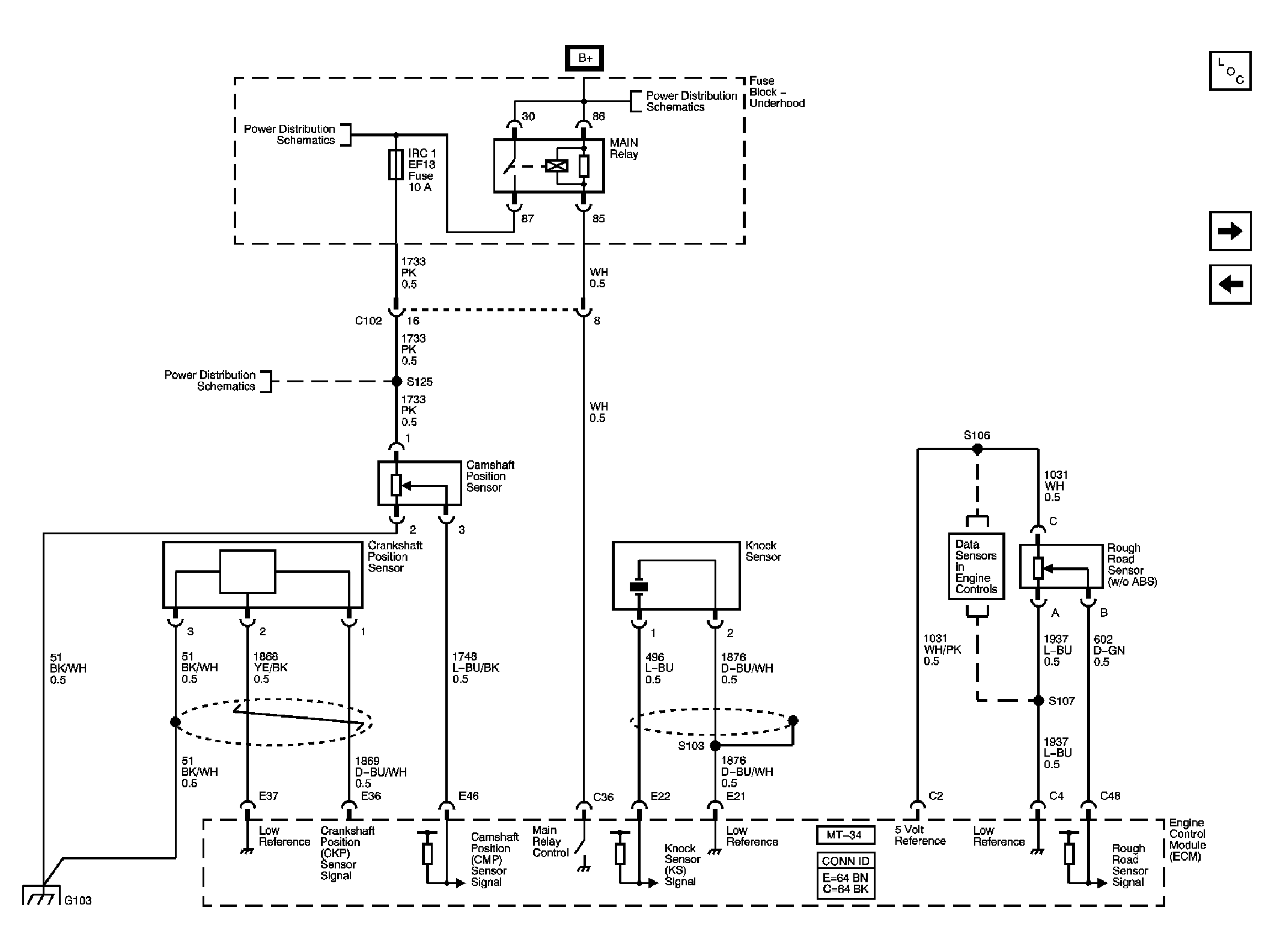

Fig 6: Engine Controls Ignition Sensors
GM1680234Courtesy of GENERAL MOTORS CORP.

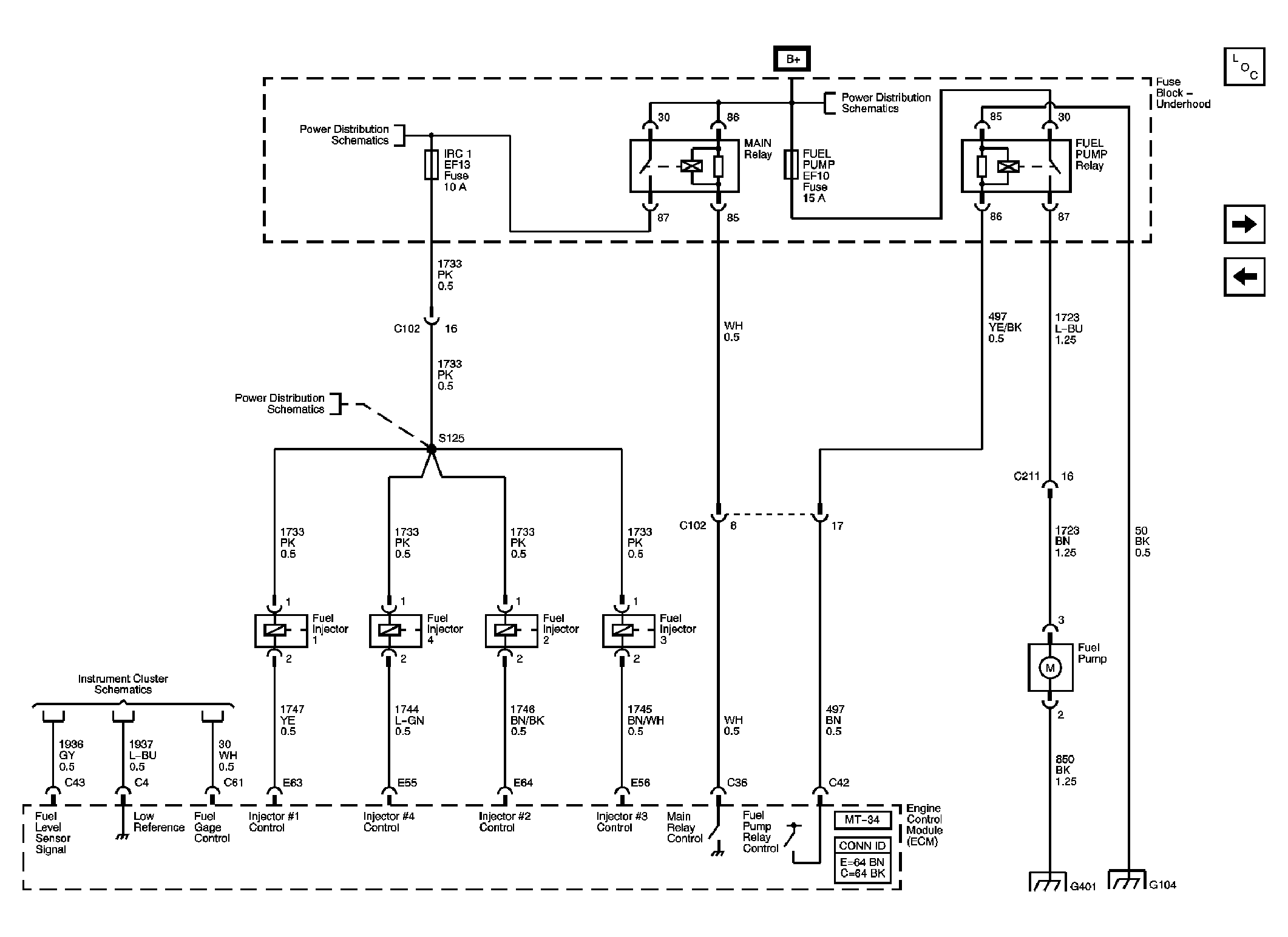

Fig 7: Engine Controls Fuel Injectors
GM1680238Courtesy of GENERAL MOTORS CORP.

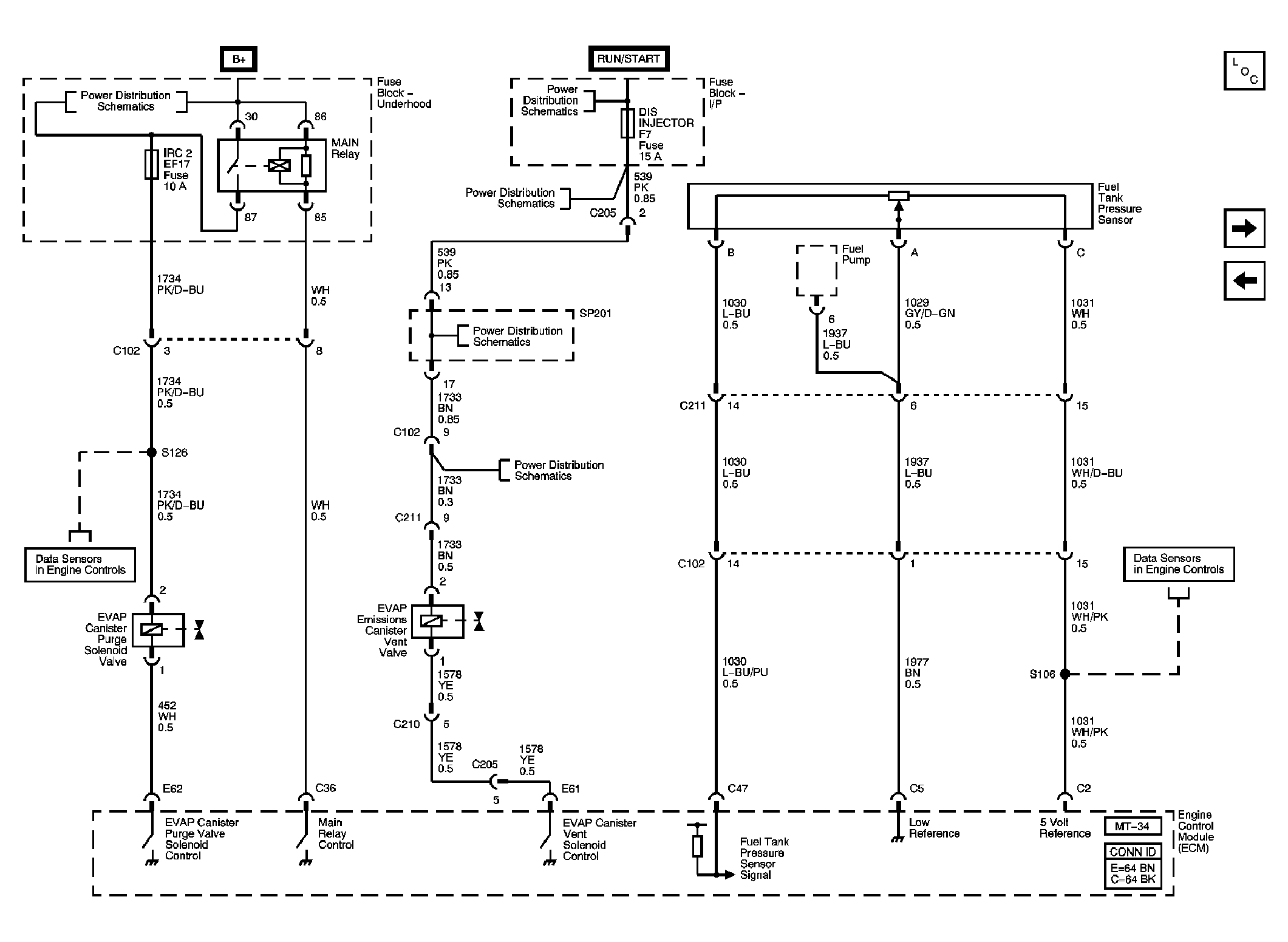

Fig 8: Engine Controls EVAP Controls
GM1680241Courtesy of GENERAL MOTORS CORP.

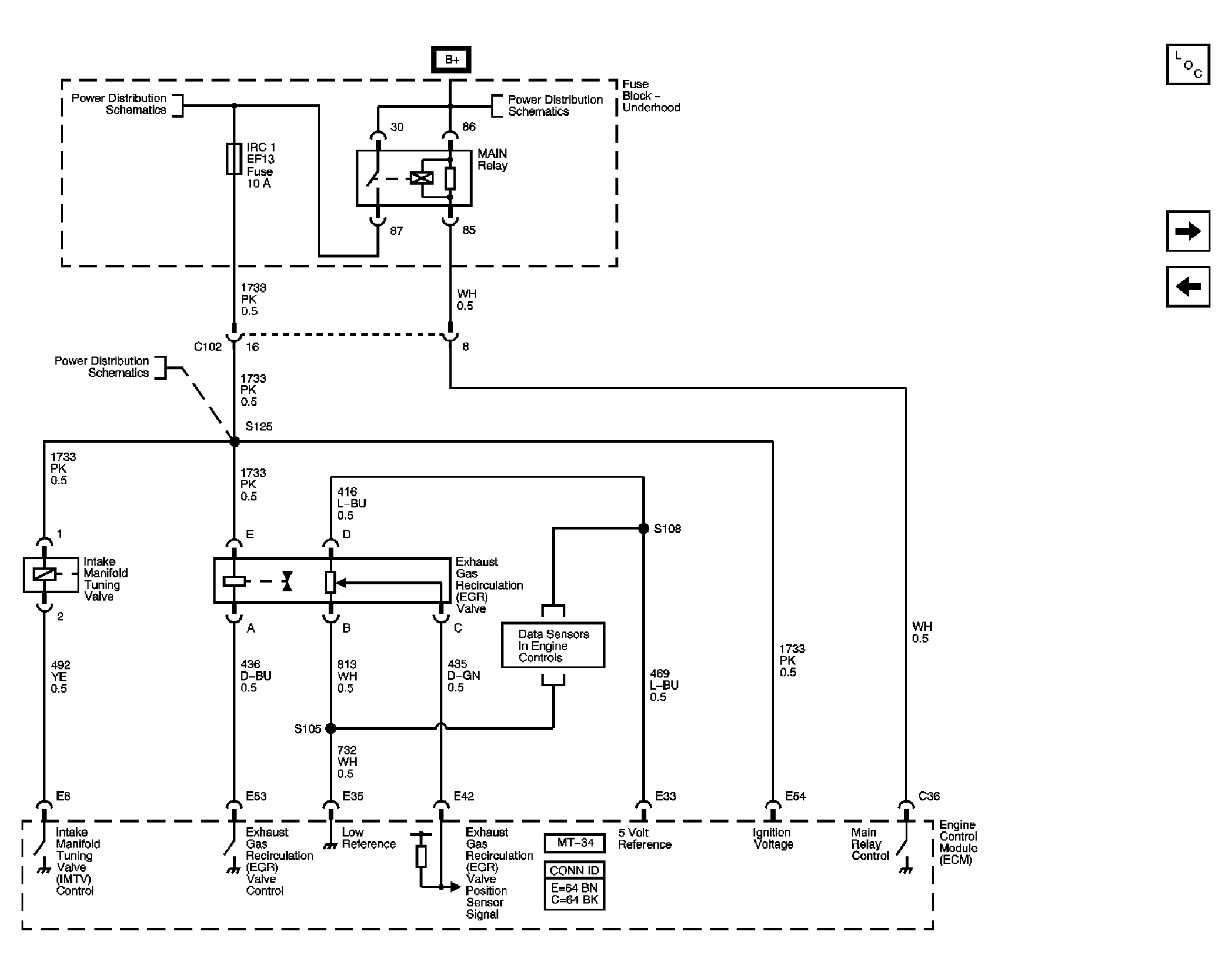

Fig 9: Engine Controls Intake, Exhaust Valves
GM1680246Courtesy of GENERAL MOTORS CORP.
Fig 10: Engine Controls Subsystem References
GM1680249Courtesy of GENERAL MOTORS CORP.
