Installation Procedure

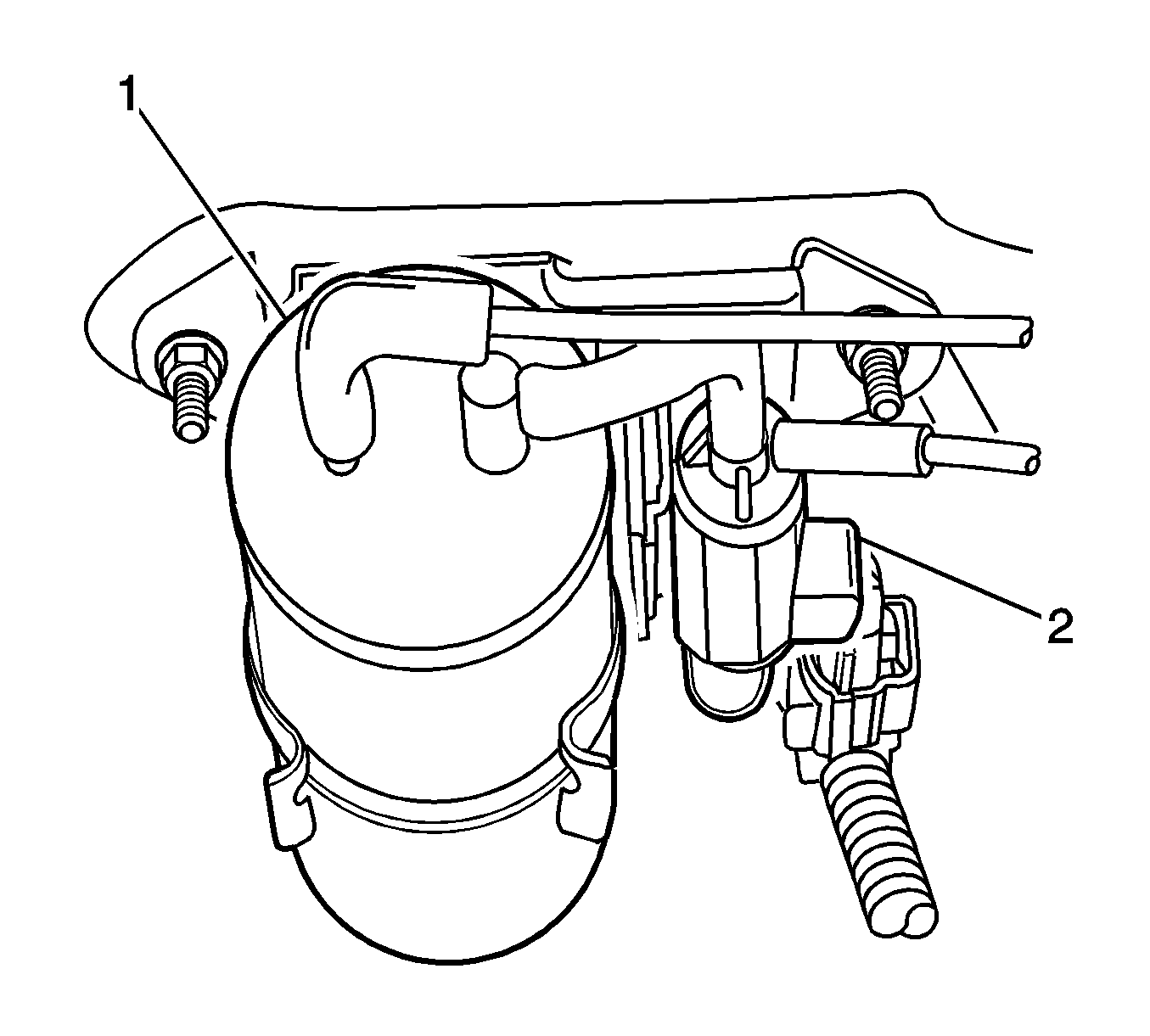

    Fig 1: Identifying Intake Manifold Tuning Valve Solenoid
    GM1464836Courtesy of GENERAL MOTORS CORP.
  1. Install the IMT valve solenoid.
  2. Connect the vacuum hoses to the IMT valve solenoid (2).
  3. Connect the IMT valve solenoid (2) connector.
  4. Connect the negative battery cable.
