Removal Procedure

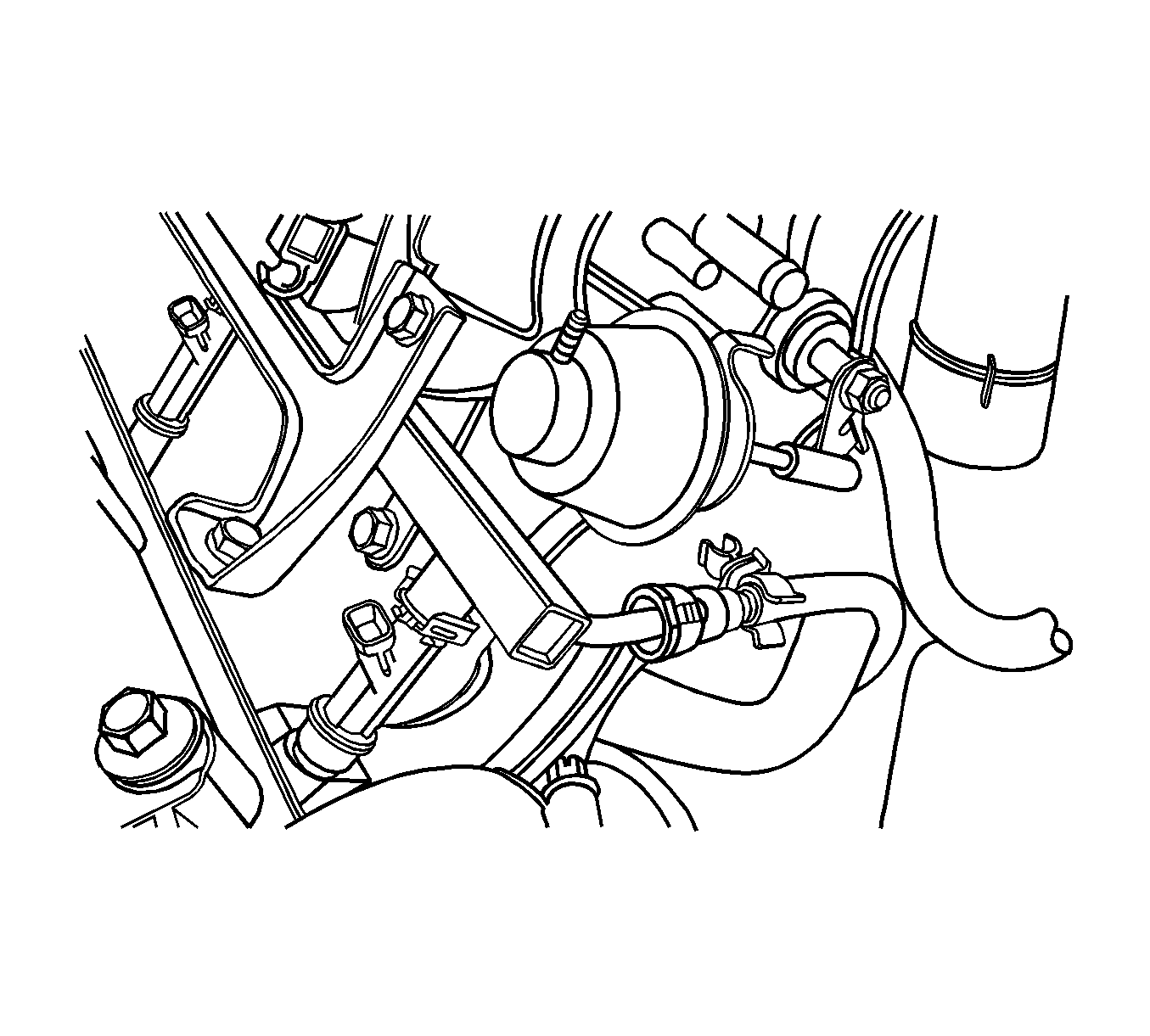

    Fig 1: View Of Fuel Rail
    GM1371864Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the vacuum hose from the intake manifold tuning (IMT) valve actuator valve.
    2. IMPORTANT: Ensure the IMT valve is closed before removing the IMT valve actuator retaining bolts and valve.
  2. Remove the IMT valve actuator valve bolts.
  3. Remove the IMT valve actuator valve from the IMT valve.
