Installation Procedure

    Fig 1: View Of Fuel Tank And Rollover Valve Tube

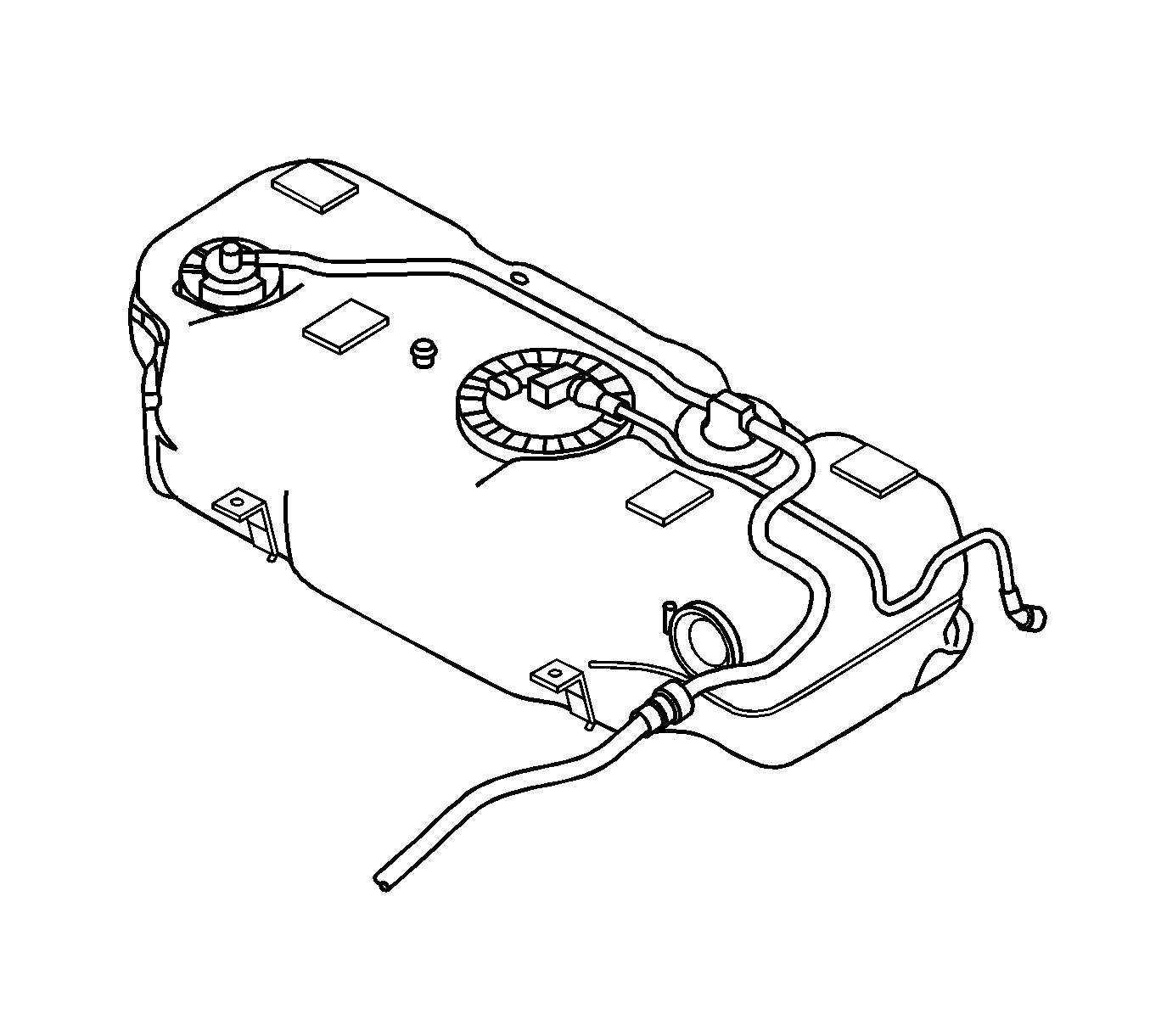

    GM1530164Courtesy of GENERAL MOTORS CORP.
  1. Install the rollover valve to the fuel tank.
  2. Install the fuel tank. Refer to Fuel Tank Replacement .
    3. Fig 2: View Of EVAP Canister Purge And Vapor Rear Tubes

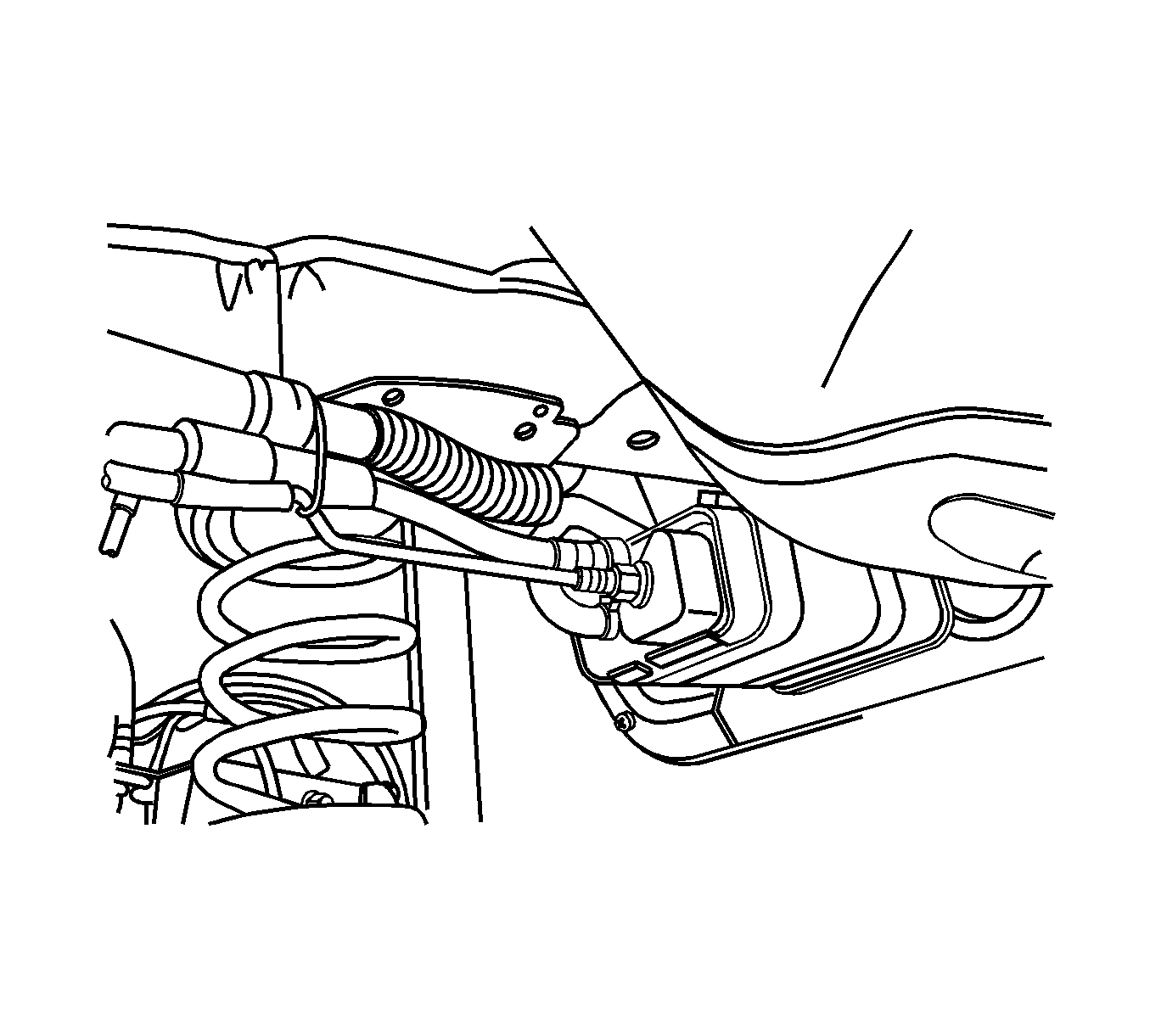

    GM1530163Courtesy of GENERAL MOTORS CORP.
  3. Connect the EVAP canister purge tube.
  4. Install the EVAP canister purge tube clip.
  5. Connect the EVAP canister vapor rear tube.
  6. Install the EVAP canister vapor rear tube clip.
    7. Fig 3: View Of Undercarriage

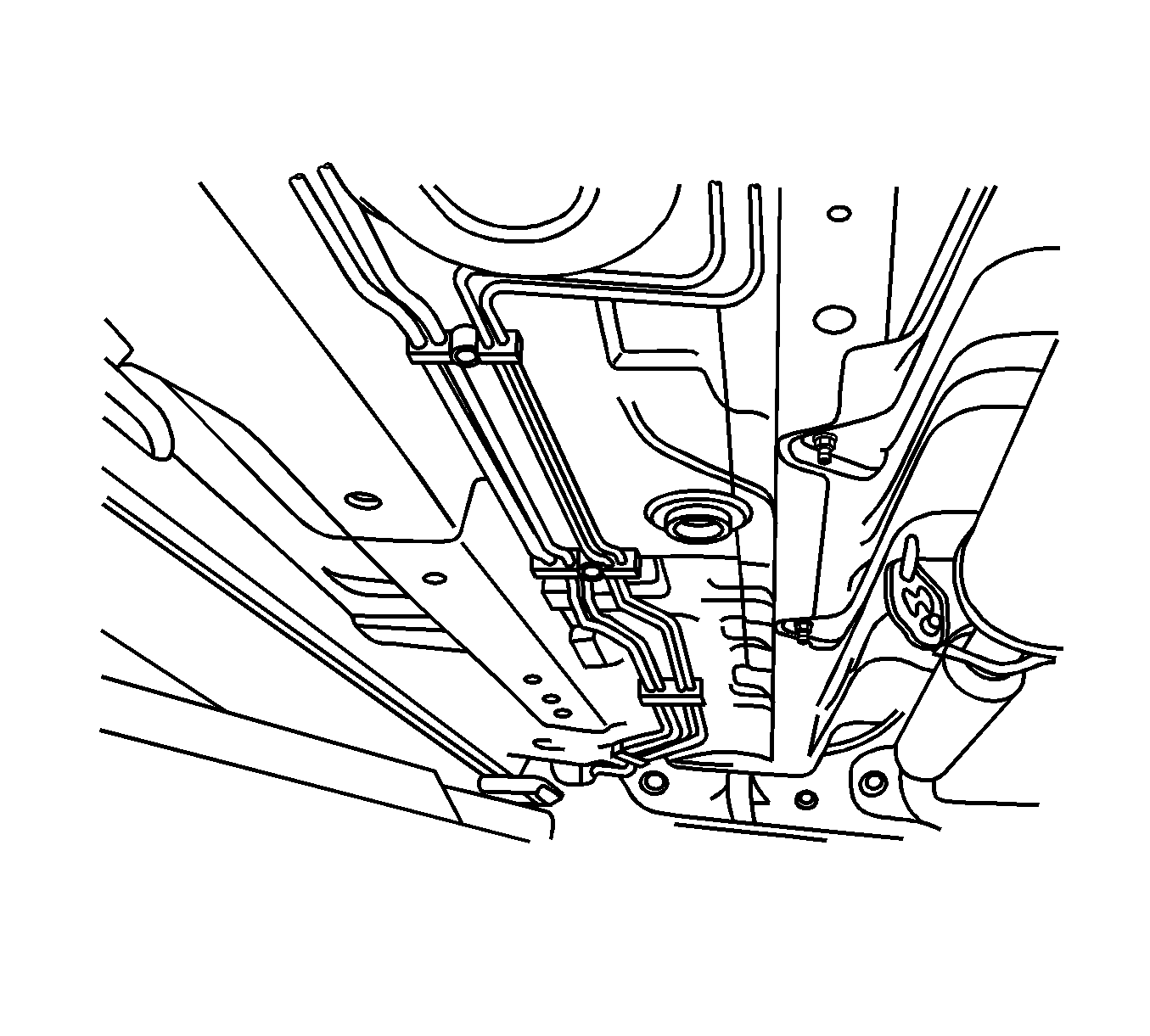

    GM1530162Courtesy of GENERAL MOTORS CORP.
  7. Install the EVAP canister vapor pipe.
  8. Install the EVAP canister vapor pipe mounting screws and cover.
    9. Fig 4: View Of Pipe Clamps

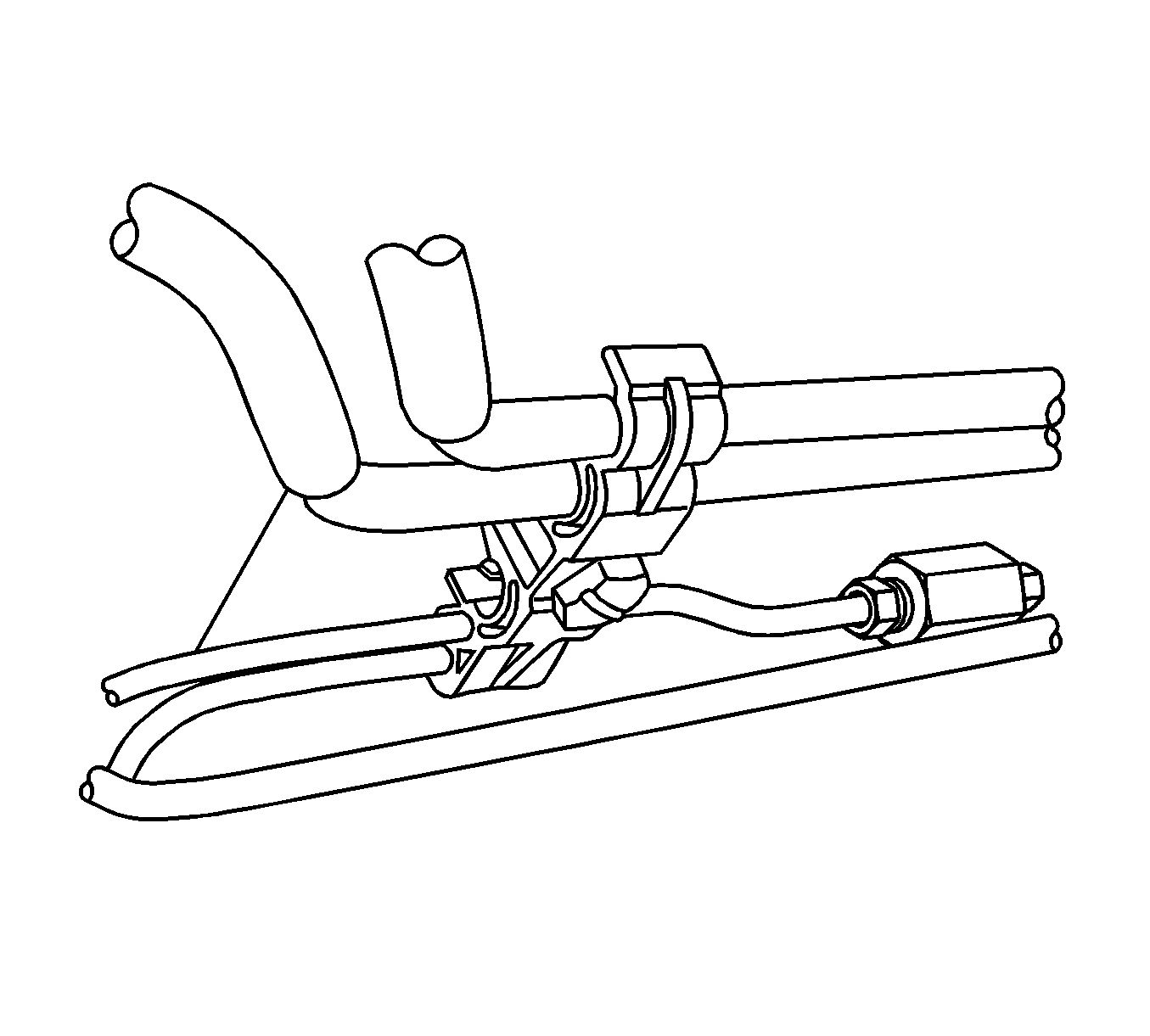

    GM1530161Courtesy of GENERAL MOTORS CORP.
  9. Install the EVAP canister vapor pipe plastic bolt and cover.
  10. Lower the vehicle.
    11. Fig 5: Connecting And Disconnecting EVAP Canister Pipe From EVAP Canister Vapor Rear Tube

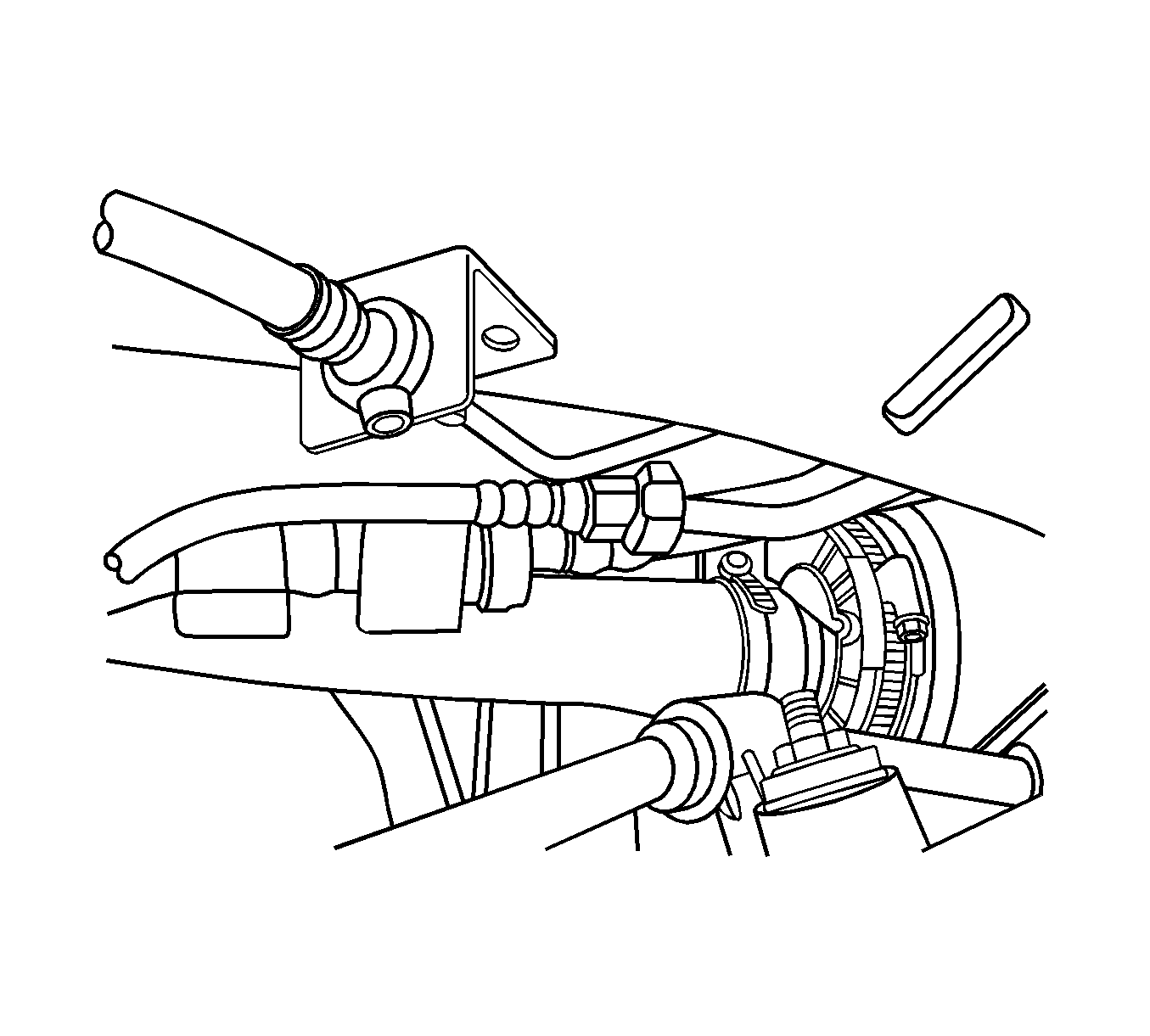

    GM1530160Courtesy of GENERAL MOTORS CORP.
  11. Connect the EVAP canister vapor pipe from the EVAP canister vapor rear tube.
    12. Fig 6: View of EVAP Canister Front Tube

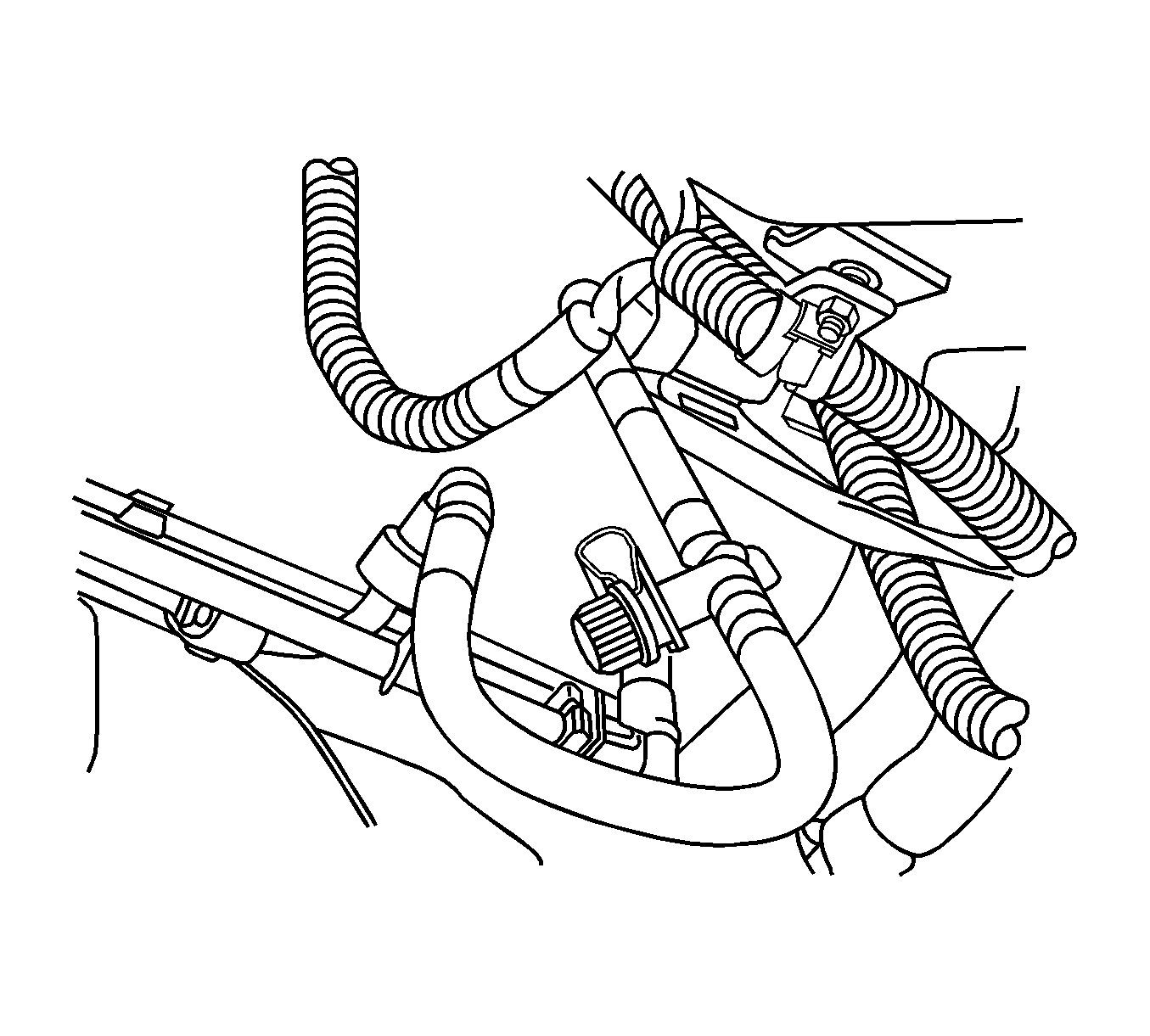

    GM1530159Courtesy of GENERAL MOTORS CORP.
  12. Connect the EVAP canister front tube from the EVAP canister purge solenoid valve and the EVAP canister vapor pipe.
    13. Fig 7: View Of EVAP Canister Purge Solenoid Valve

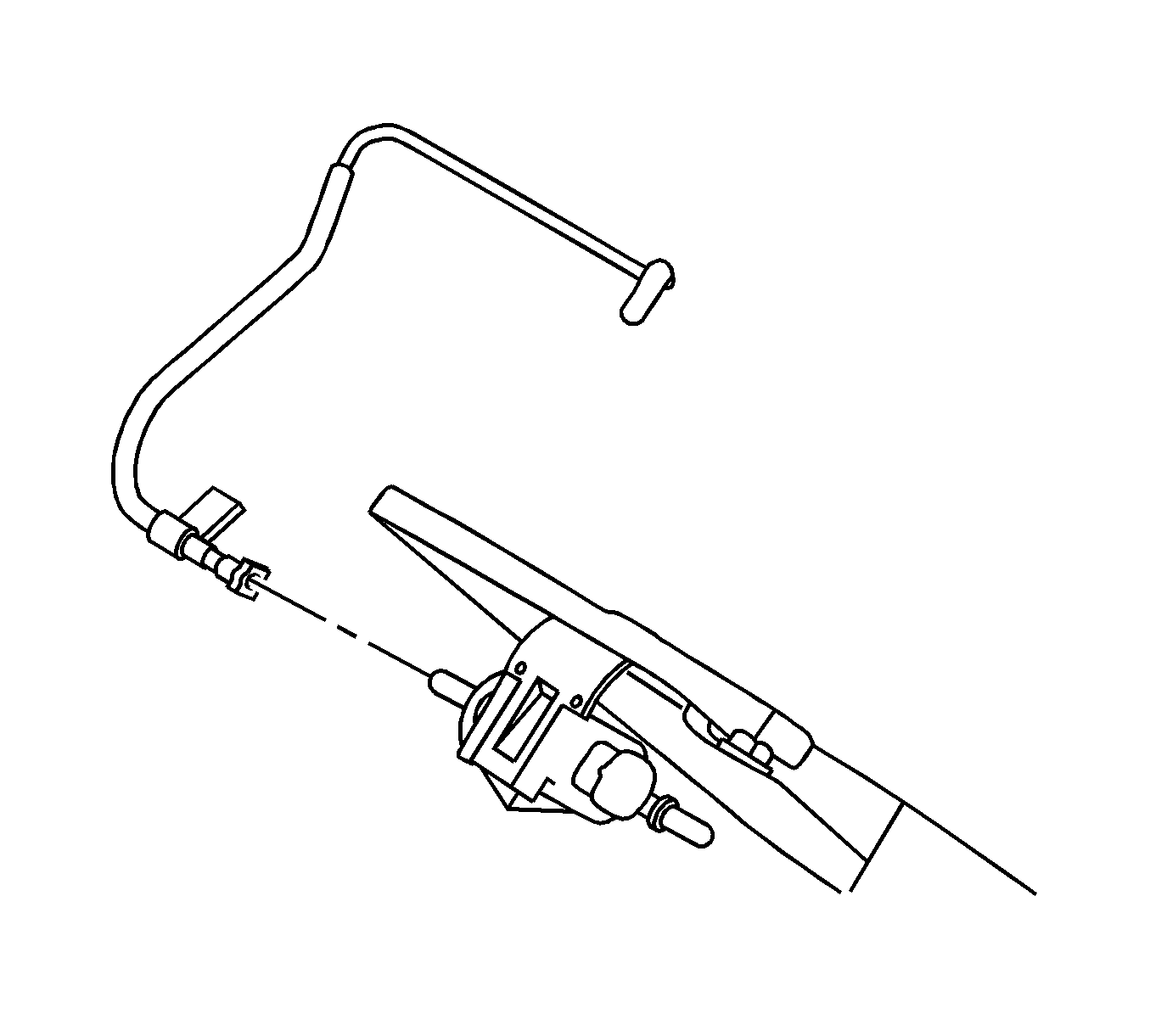

    GM1530157Courtesy of GENERAL MOTORS CORP.
  13. Connect the EVAP canister purge solenoid valve to intake manifold hose.
