Removal Procedure

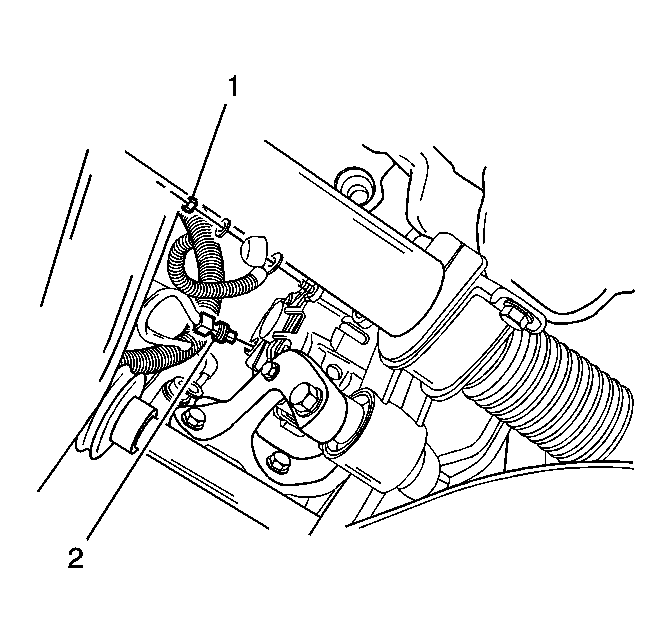

    Fig 1: View Of Generator Battery Lead Connector Nut And Generator Harness Connector
    GM1348537Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the generator battery lead connector nut (1) to disconnect the battery positive lead.
  3. Disconnect the generator harness connector (2).

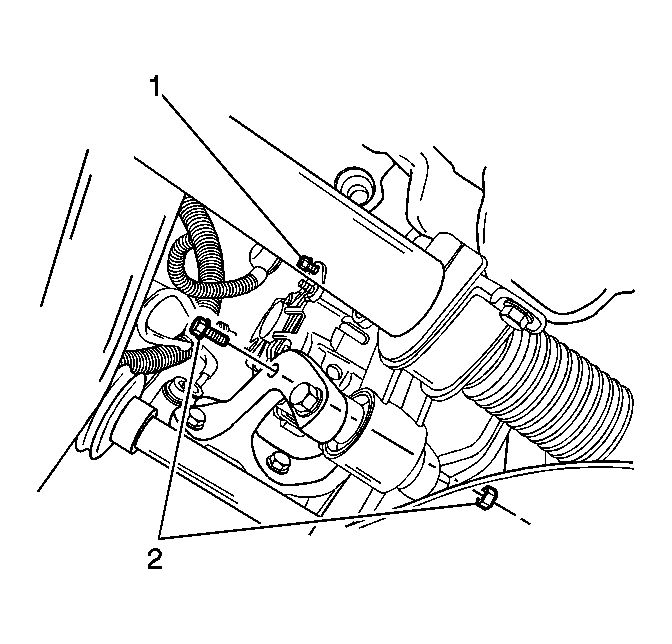

    4. Fig 2: View Of Generator-Adjusting Bolt And Lower Bracket-To-Generator Bolt And Nut
    GM1348661Courtesy of GENERAL MOTORS CORP.
  4. Loosen the generator-adjusting bolt (1).
  5. Remove the generator drive belt.
  6. Remove the lower bracket-to-generator bolt and nut (2).

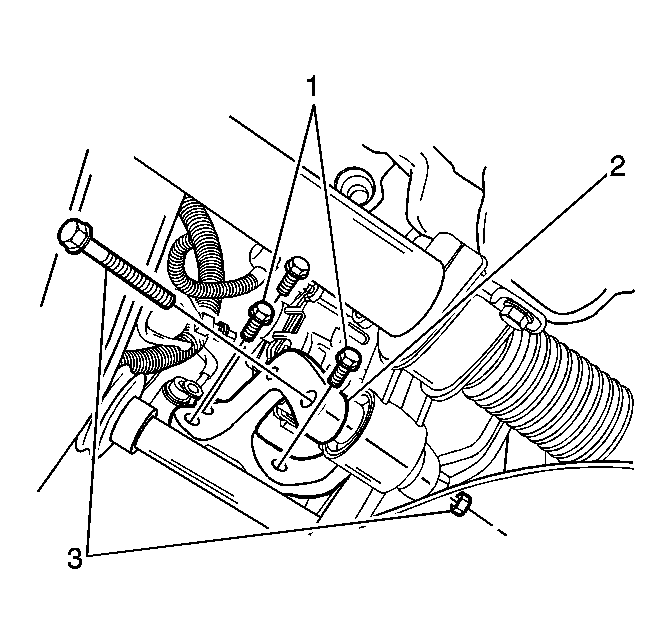

    7. Fig 3: View Of Engine Mounting Lower Bracket Mounting Bolts, Lower Bracket, And Reaction Rod Bolt And Nut
    GM1343753Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine mounting lower bracket, attaching reaction rod bolt and nut (3).
  8. Remove the engine mounting lower bracket mounting bolts (1).
  9. Remove the engine mounting lower bracket (2).

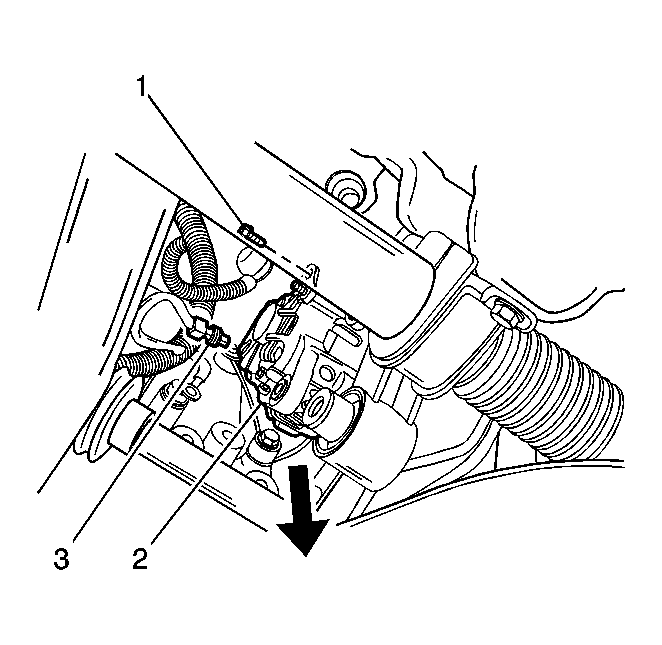

    10. Fig 4: Removing Generator-Adjusting Bolt And Generator
    GM1343754Courtesy of GENERAL MOTORS CORP.
  10. Remove the generator-adjusting bolt (1).
  11. Carefully remove the generator (2).
