Installation Procedure

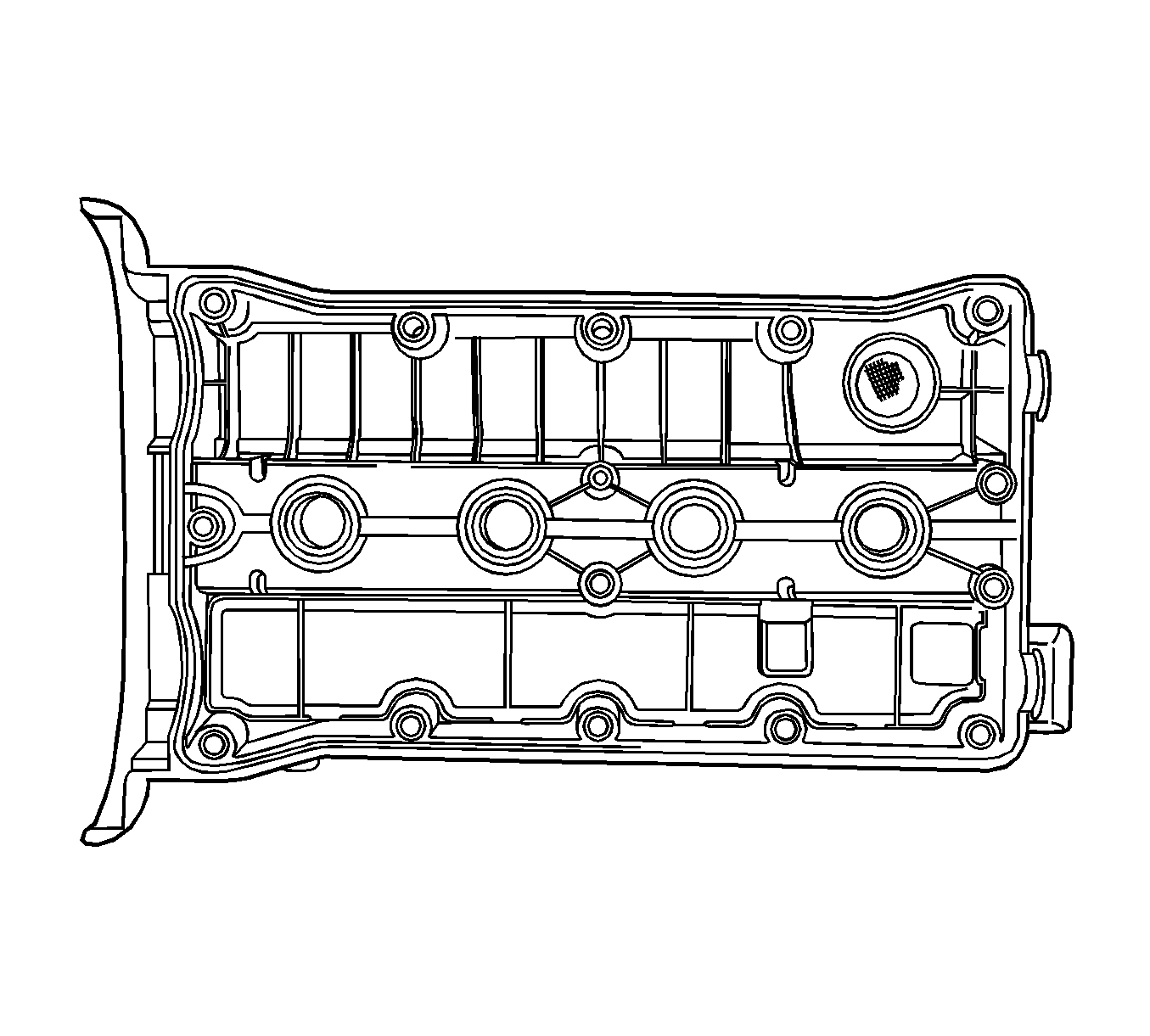

    Fig 1: View Of Valve Cover And Gasket
    GM1371857Courtesy of GENERAL MOTORS CORP.
  1. Apply a small amount of gasket sealant to the corners of the front camshaft caps and the top of the rear valve cover to cylinder head seal.
  2. Install the new valve cover gasket to the valve cover.

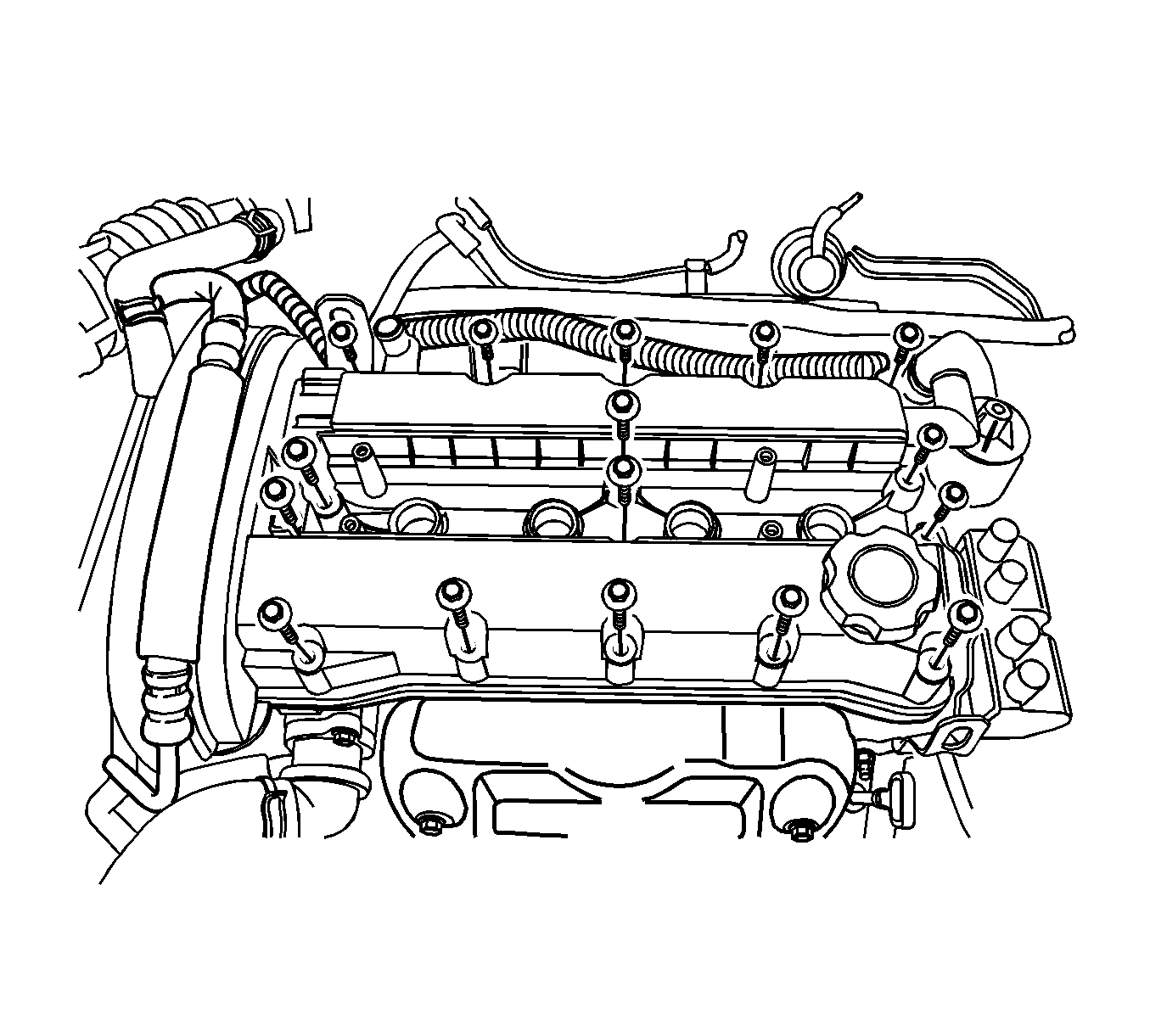

    3. Fig 2: Valve Cover Bolts Location
    GM1371856Courtesy of GENERAL MOTORS CORP.
  3. Install the valve cover.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the valve cover bolts.

    Tighten:  Tighten the valve cover bolts to 10 N.m (89 lb in).

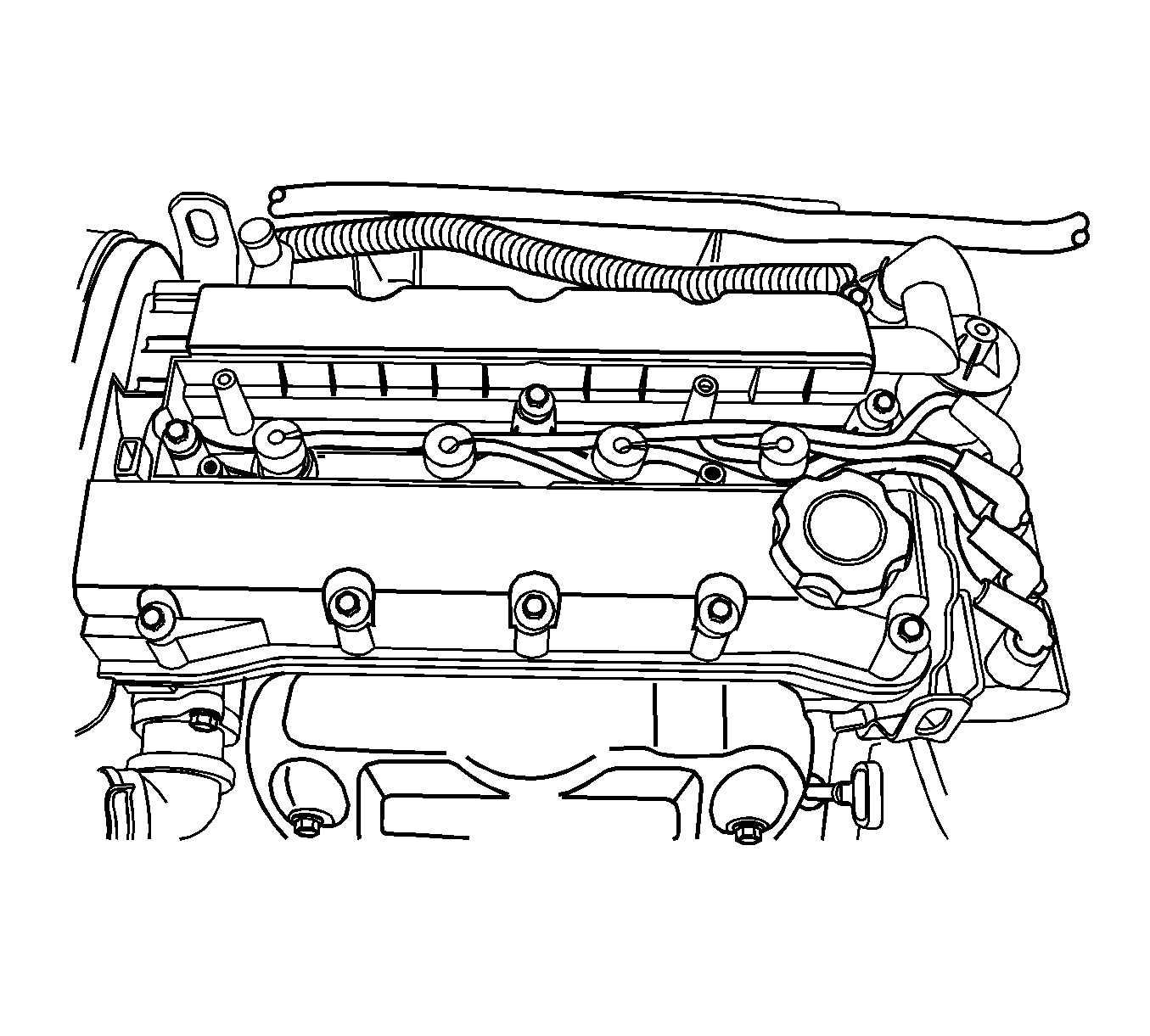

    5. Fig 3: View Of Ignition Wires And Spark Plugs
    GM1371855Courtesy of GENERAL MOTORS CORP.
  5. Connect the ignition wires from the spark plugs.
  6. Connect all of the necessary vacuum lines.

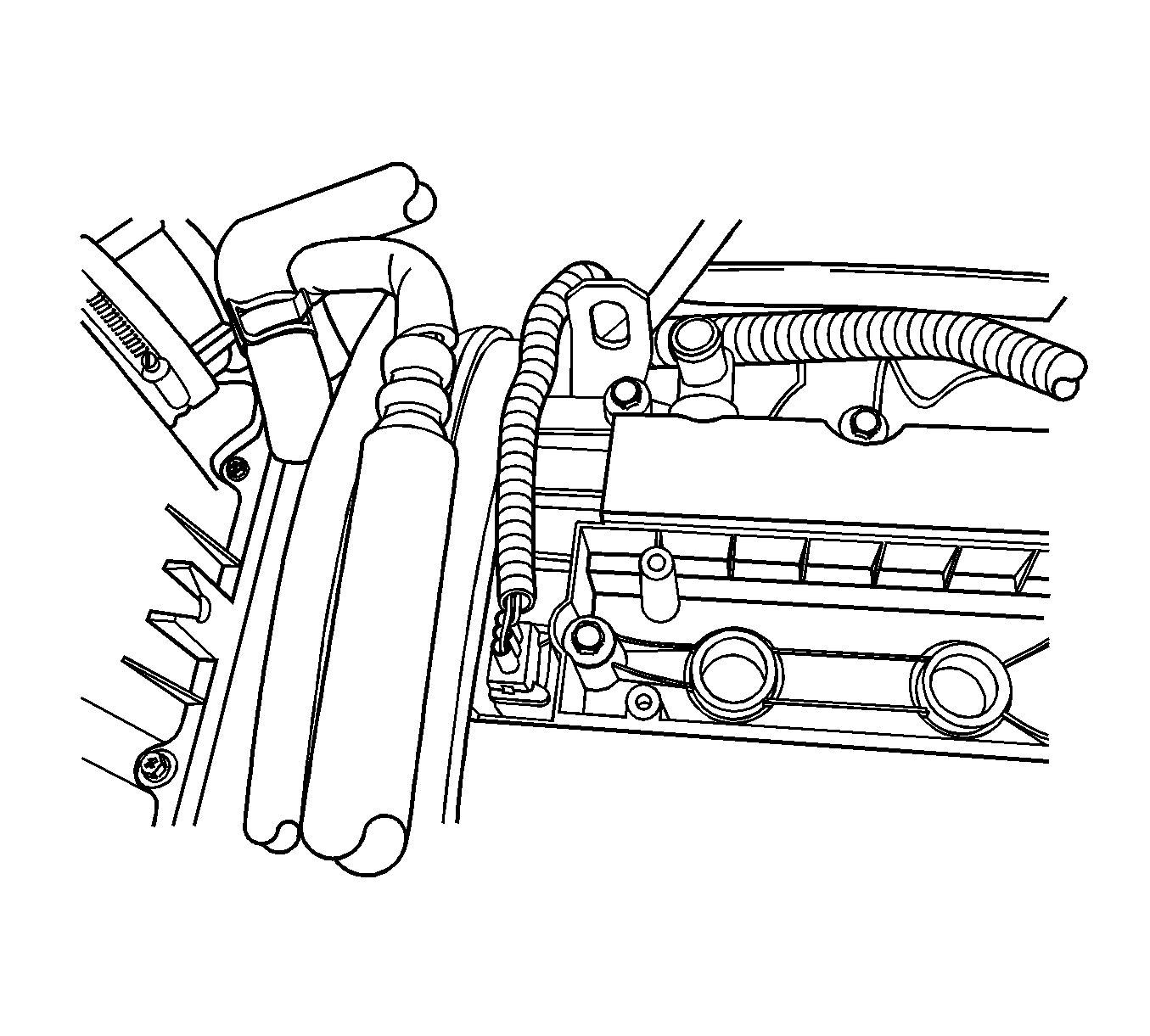

    7. Fig 4: View Of Camshaft Position (CMP) Sensor Connector
    GM1371854Courtesy of GENERAL MOTORS CORP.
  7. Connect the CMP sensor connector.

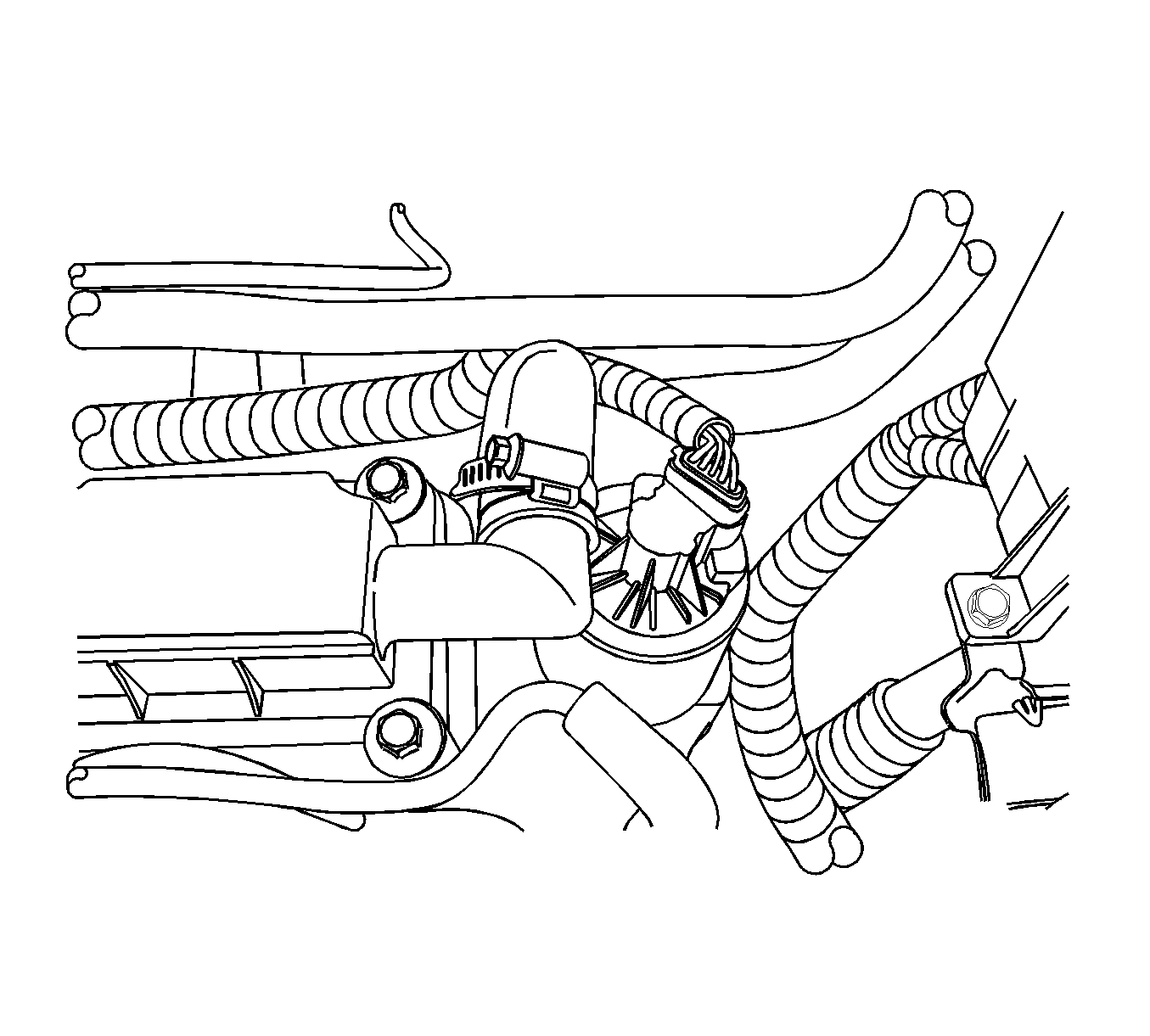

    8. Fig 5: View Of Crankcase Ventilation Tube
    GM1371853Courtesy of GENERAL MOTORS CORP.
  8. Connect the crankcase ventilation tube from the valve cover.

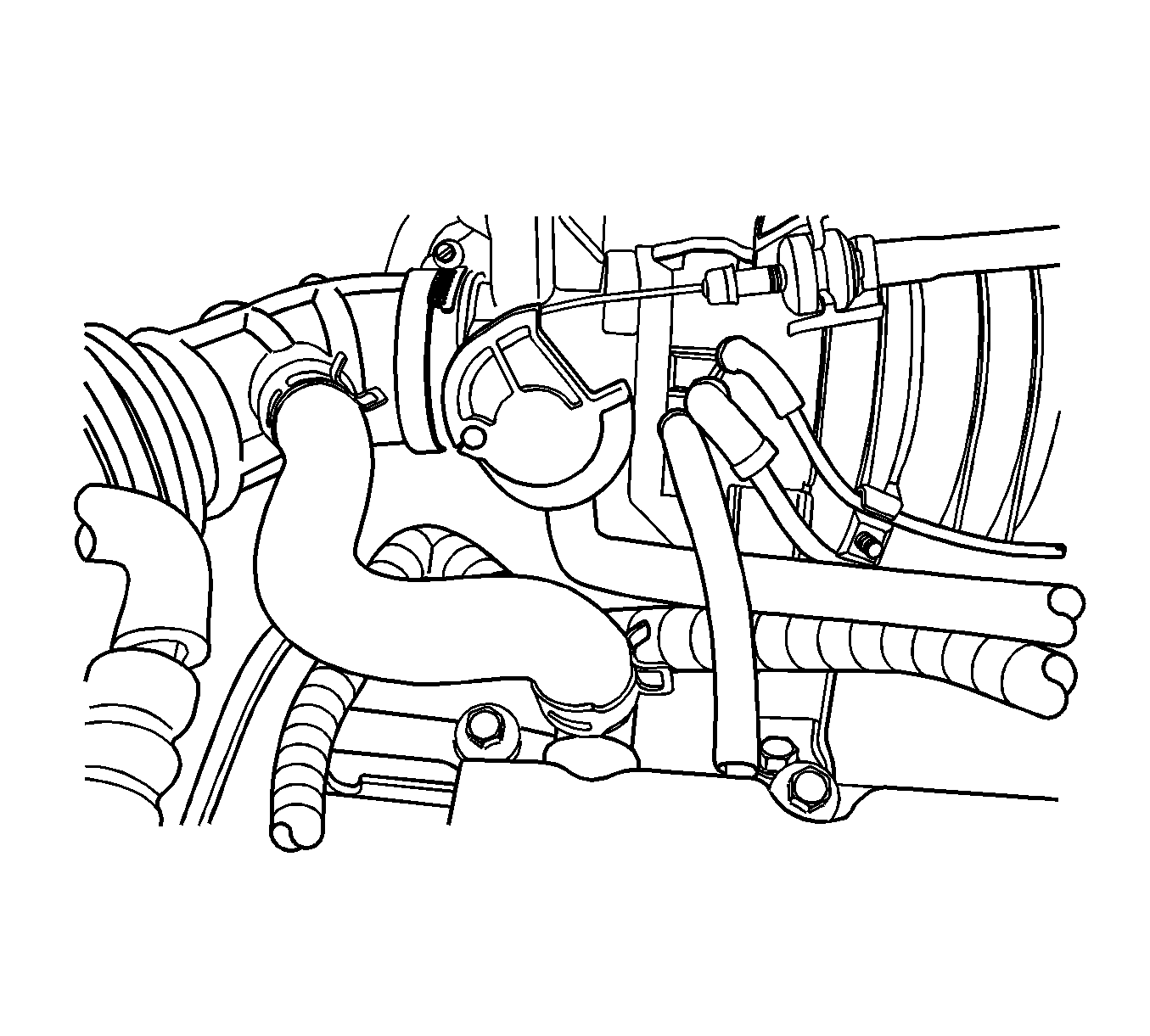

    9. Fig 6: View Of Throttle Cable
    GM1371852Courtesy of GENERAL MOTORS CORP.
  9. Connect the breather tube from the valve cover.
    10. Fig 7: Identifying Cover Screws
    GM1371851Courtesy of GENERAL MOTORS CORP.
  10. Install the spark plug cover.
  11. Install the spark plug cover bolts.

    Tighten:  Tighten the engine cover bolts to 3 N.m (27 lb in).

  12. Connect the negative battery cable.
