Removal Procedure

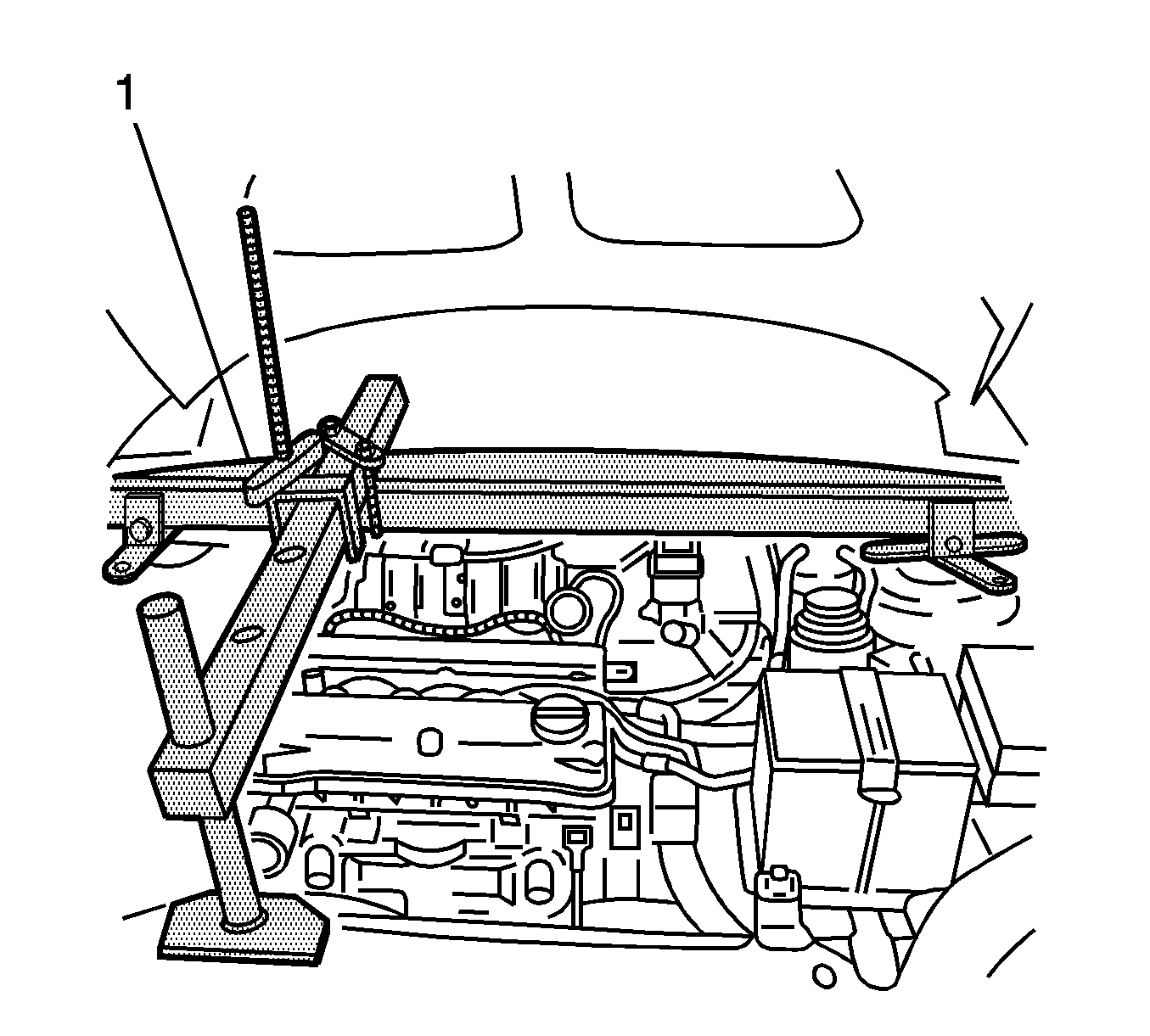

    Fig 1: Supporting Engine Assembly Using J 28467-B
    GM1371916Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the upper radiator cover.
  3. Remove the right front splash shield.
  4. Support the engine assembly using the J 28467-B  (1).

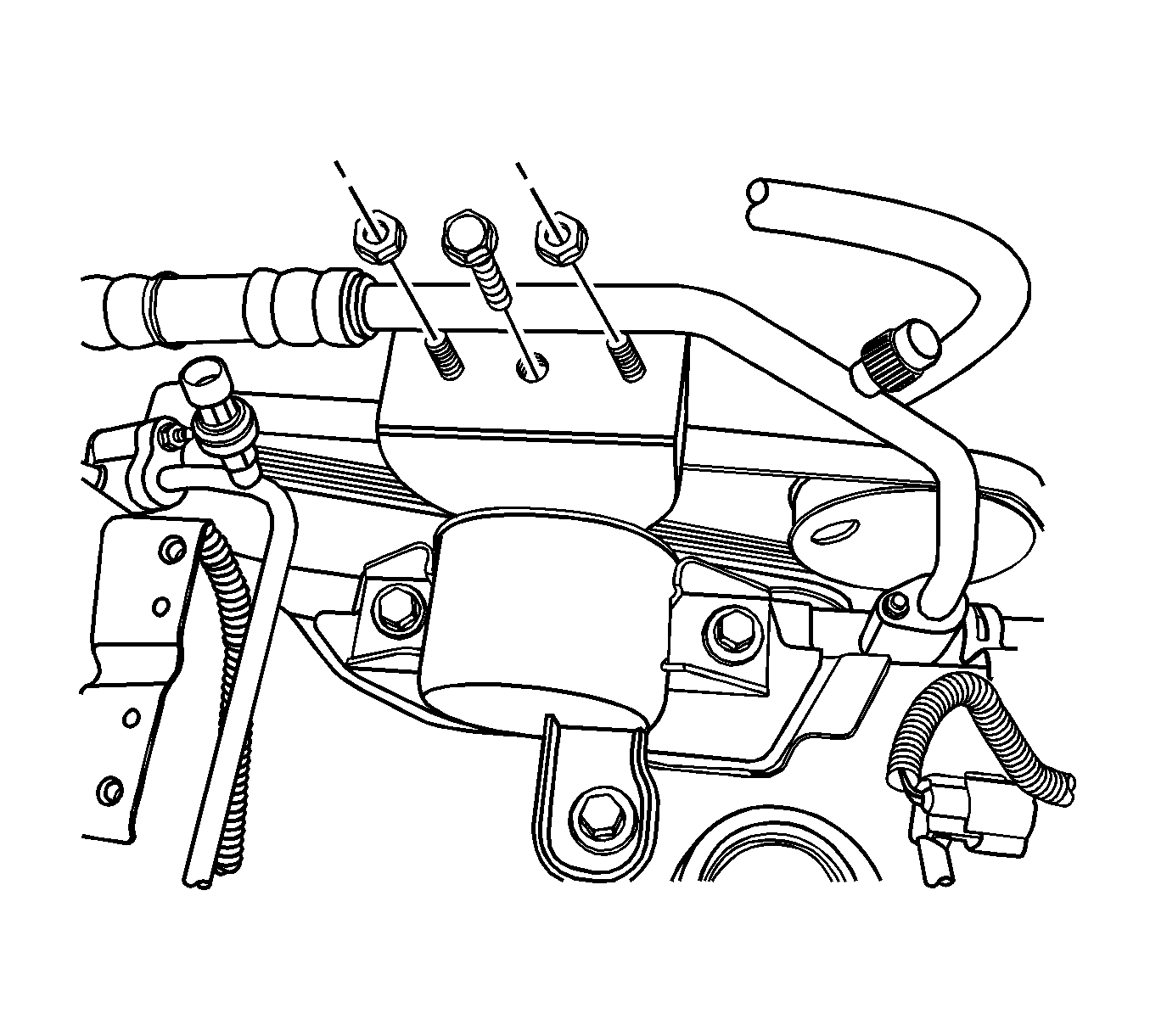

    5. Fig 2: View Of Crossmember, Nuts, And Bolts
    GM1371917Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine mount bracket retaining bolts.

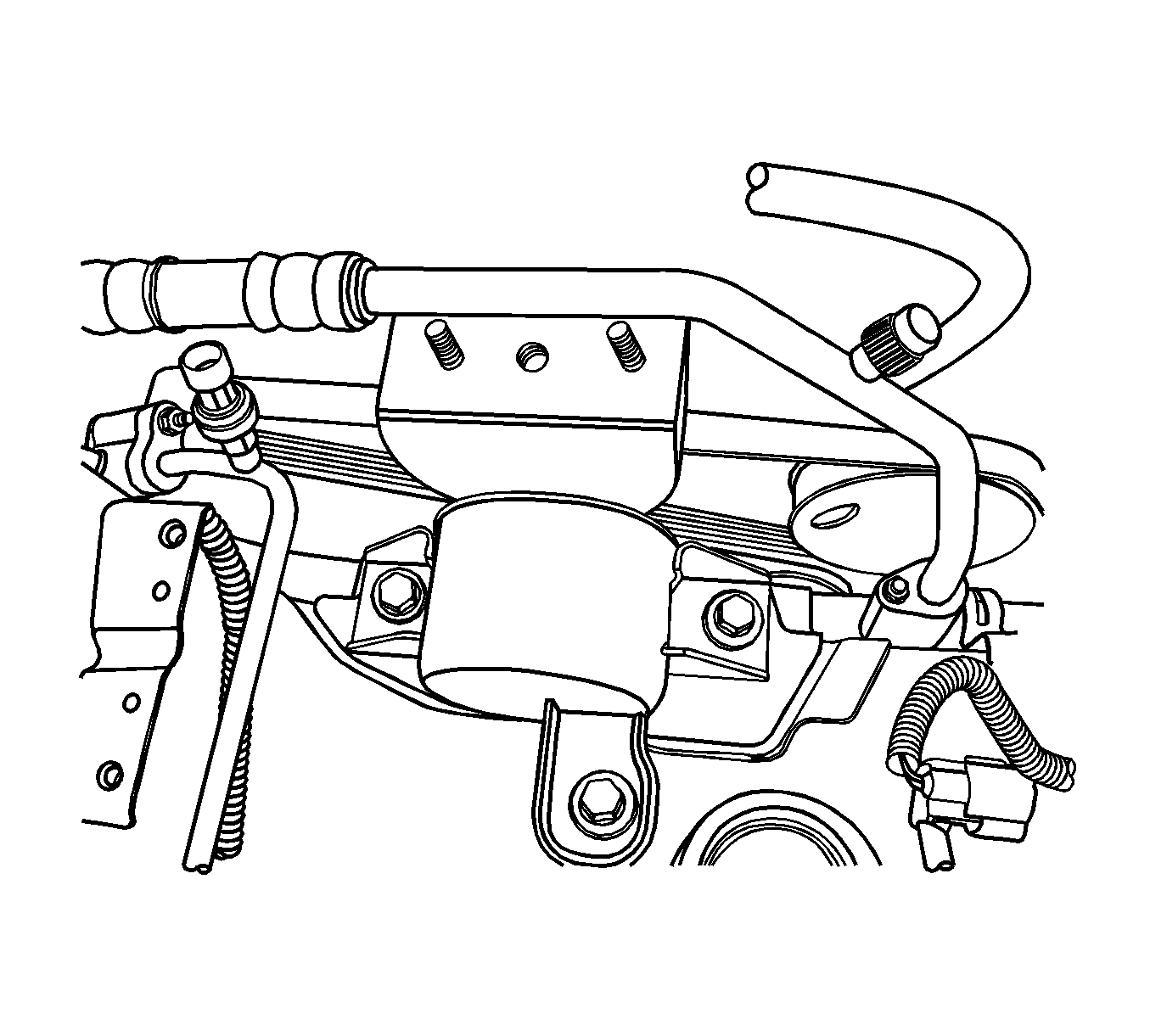

    6. Fig 3: View Of Engine Mount
    GM1371918Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine mount retaining nuts.
  7. Lower the engine.
  8. Remove the engine mount.
