Disassembled Views

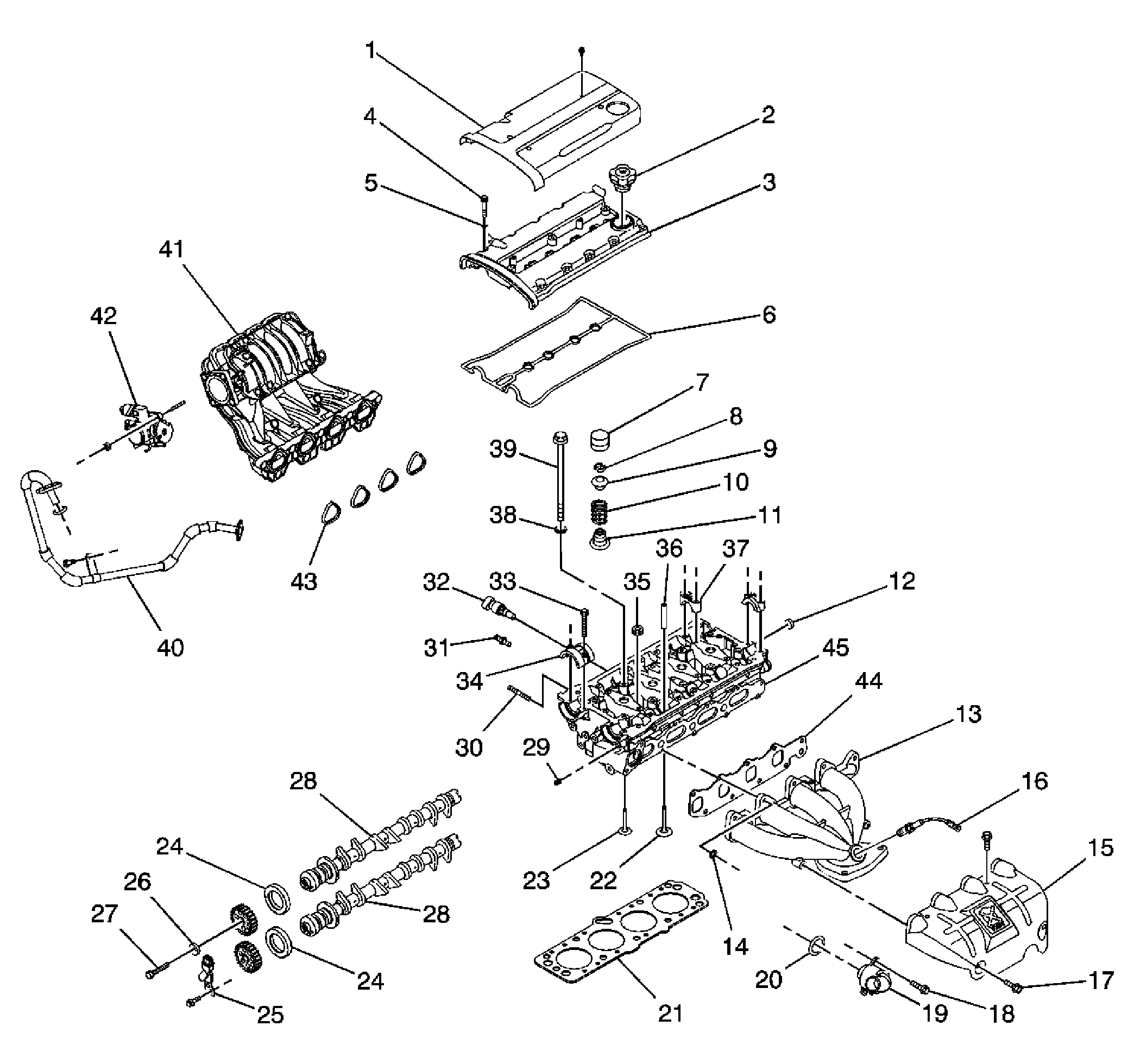

Fig 1: Upper End Components
GM1372466Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cover
2 Oil Cap
3 Valve Cover
4 Valve Cover Bolt
5 Valve Cover Washer
6 Valve Cover Gasket
7 Hydraulic Valve Lash Adjuster
8 Valve Key
9 Valve Spring Retainer
10 Valve Spring
11 Valve Stem Oil Seal
12 Freeze Plug
13 Exhaust manifold
14 Nut
15 Exhaust Manifold Heat Shield
16 Oxygen Sensor
17 Bolt
18 Bolt
19 Thermostat Housing Assembly
20 Thermostat Housing Seal
21 Cylinder Head Gasket
22 Exhaust Valve
23 Intake Valve
24 Camshaft Seal
25 Camshaft Position Sensor
26 Washer
27 Camshaft Gear Bolt
28 Camshaft
29 Plug
30 Stud
31 Engine Coolant Temperature Sensor
32 Coolant Temperature Sensor
33 Bolt
34 Front Camshaft Cap
35 Plug
36 Valve Guide
37 Intermediate Camshaft Cap
38 Washer
39 Head Bolt
40 Exhaust Gas Recirculation Pipe
41 Intake Manifold
42 Throttle Body
43 Intake Manifold Gasket
44 Exhaust Manifold Gasket
45 Cylinder Head

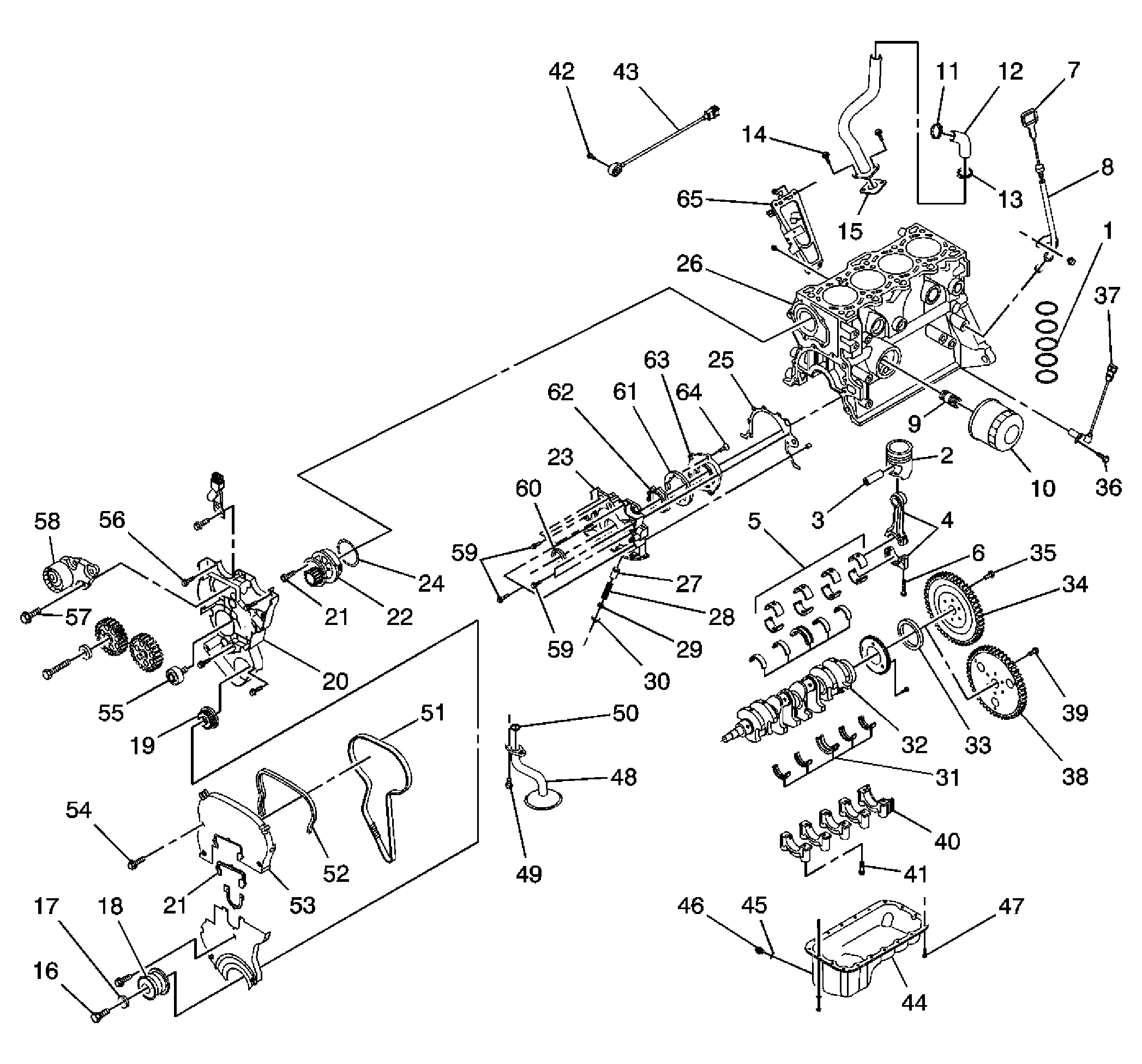

Fig 2: Lower End Components
GM1372467Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Piston Ring Set
2 Piston
3 Piston Pin
4 Connection Rod
5 Connecting Rod Bearing Set
6 Connecting Rod Bolt
7 Oil Level Gage Stick
8 Gage Stick Tube
9 Connection Piece
10 Oil Filter
11 Hose Clamp
12 Engine Ventilation Hose
13 Engine Ventilation Pipe
14 Bolt
15 Oil Separator Gasket
16 Crankshaft Pulley Bolt
17 Washer
18 Crankshaft Pulley
19 Crankshaft Gear
20 Rear Timing Belt Cover
21 Bolt
22 Coolant Pump
23 Oil Pump
24 Engine Block Seal Ring
25 Oil Pump Body Gasket
26 Engine Block
27 Pressure Relief Valve Plunger
28 Spring
29 Oil Pump Seal Ring
30 Bolt Plug
31 Crankshaft Bearing Set
32 Crankshaft
33 Shaft Seal Ring
34 Flywheel - Manual Transaxle
35 Bolt - Manual Transaxle
36 Bolt
37 Crankshaft Position Sensor
38 Flexible Plate - Automatic Transaxle
39 Bolt - Automatic Transaxle
40 Crankshaft Main Bearing Cap
41 Bolt
42 Bolt
43 Knock Sensor
44 Oil Pan
45 Threaded Ring
46 Bolt
47 Bolt
48 Oil Pickup Tube
49 Bolt
50 Seal
51 Timing Belt
52 Cover Seal
53 Cover
54 Bolt
55 Idler Pulley
56 Rear Cover Bolt
57 Bolt
58 Auto Tensioner
59 Seal
60 Bolt
61 Gear
62 Gear
63 Cover
64 Bolt
65 Intake Manifold Support Bracket
