Removal Procedure

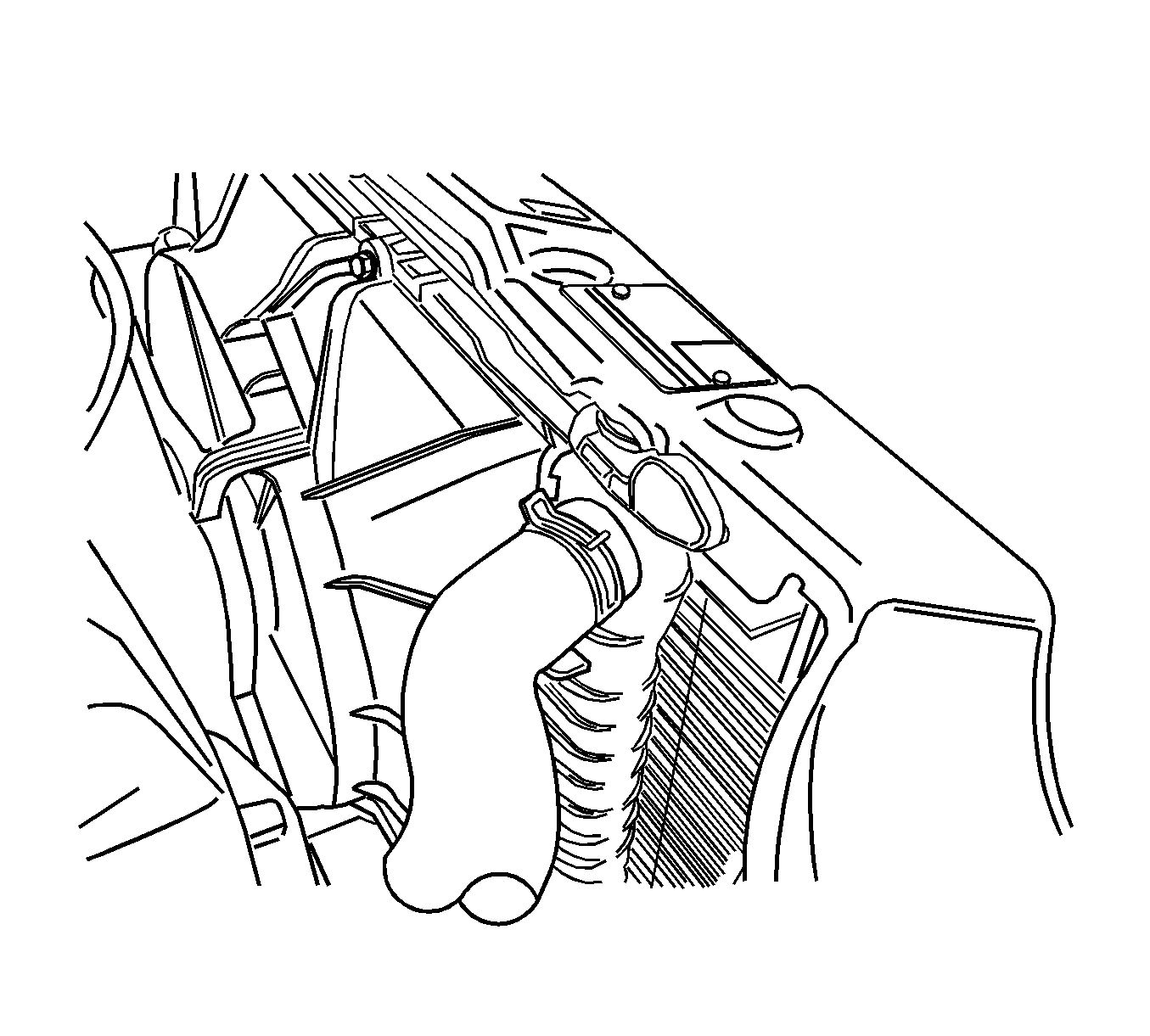

    Fig 1: View Of Upper Radiator Hose
    GM1241849Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Drain the engine cooling system. Refer to Draining and Filling Cooling System .
  3. Remove the electric cooling fans. Refer to Cooling Fan Replacement - Electric .
  4. Remove the upper radiator hose clamp.
  5. Disconnect the upper radiator hose from the radiator.

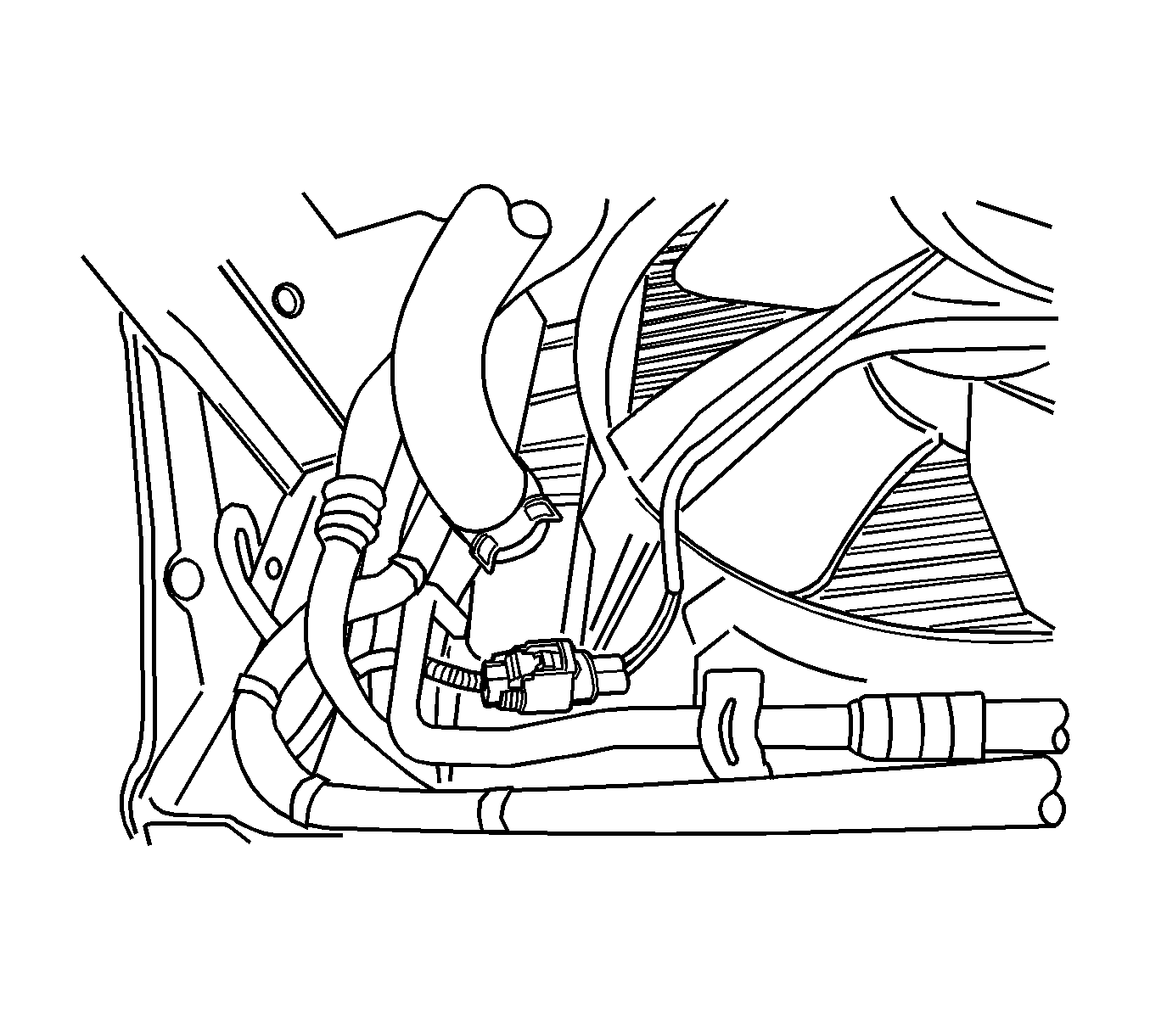

    6. Fig 2: View Of Lower Radiator Hose
    GM1241850Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the lower radiator hose from the radiator.
  7. Remove the lower radiator hose clamp.

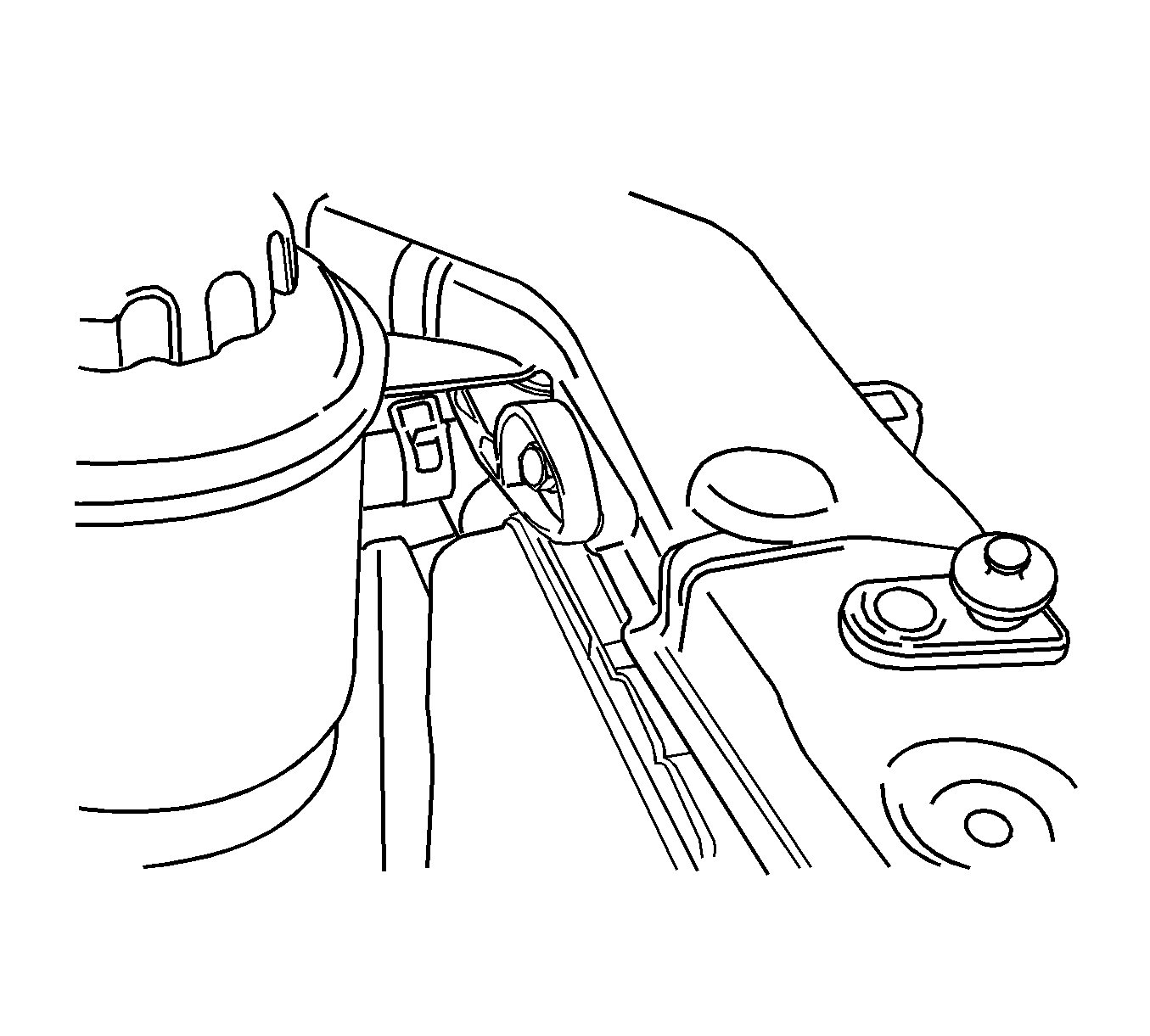

    8. Fig 3: View Of Left Upper Radiator Retaining Bolt And Bracket
    GM1241852Courtesy of GENERAL MOTORS CORP.
  8. Remove the hose clamp from the surge tank hose at the radiator.
  9. Disconnect the surge tank hose from the radiator.
  10. Remove the left upper radiator retaining bolt.
  11. Remove the left upper radiator retaining bracket.

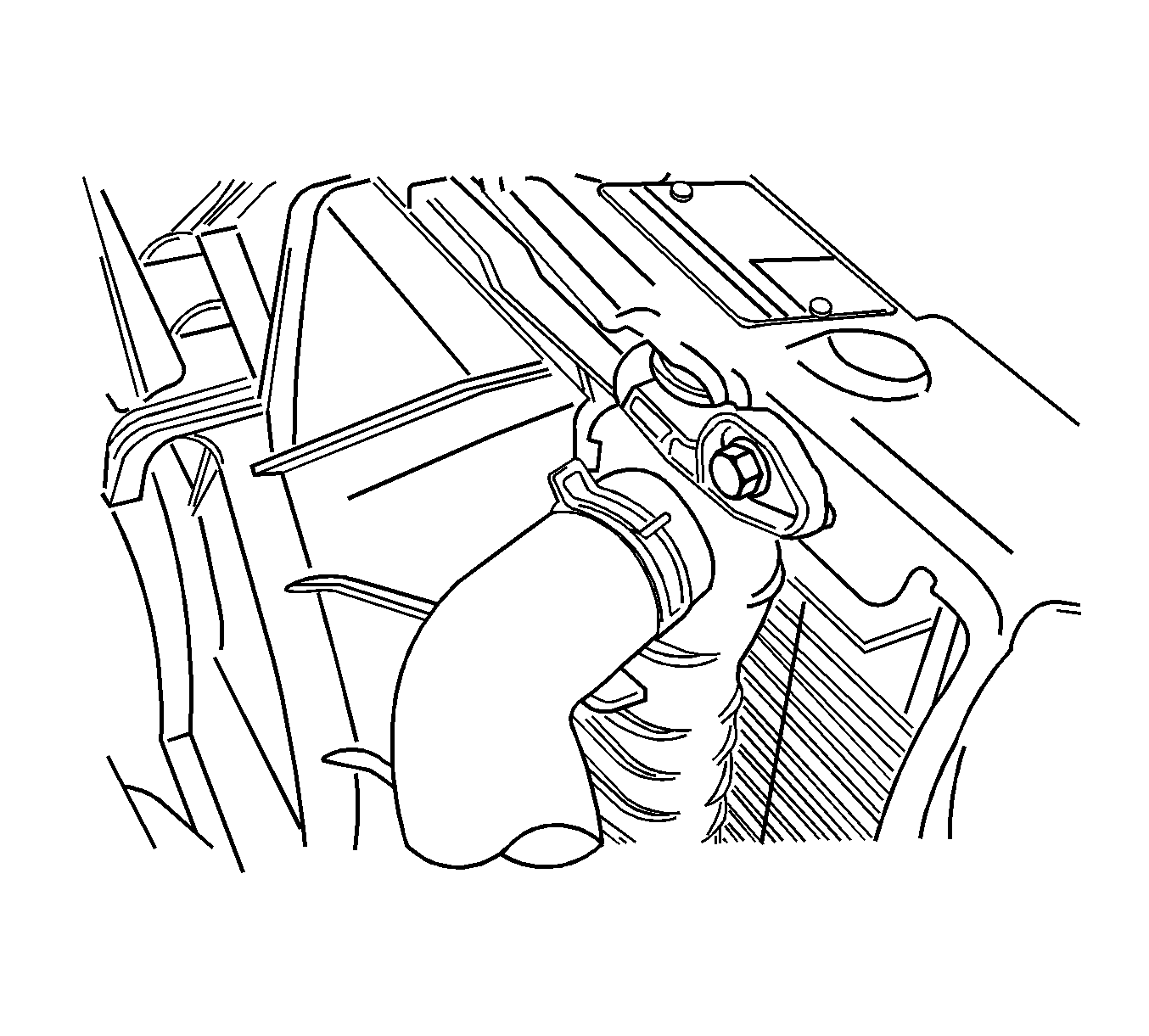

    12. Fig 4: View Of Upper Radiator Retaining Bolt And Bracket
    GM1241854Courtesy of GENERAL MOTORS CORP.
  12. Remove the right upper radiator retaining bolt.
  13. Remove the right upper radiator retaining bracket.
    14. Fig 5: View Of Radiator
    GM1241856Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The radiator still contains a substantial amount of coolant. Drain the remainder of the coolant from the radiator into a drain pan.
  14. Remove the radiator from the vehicle.
