Removal Procedure

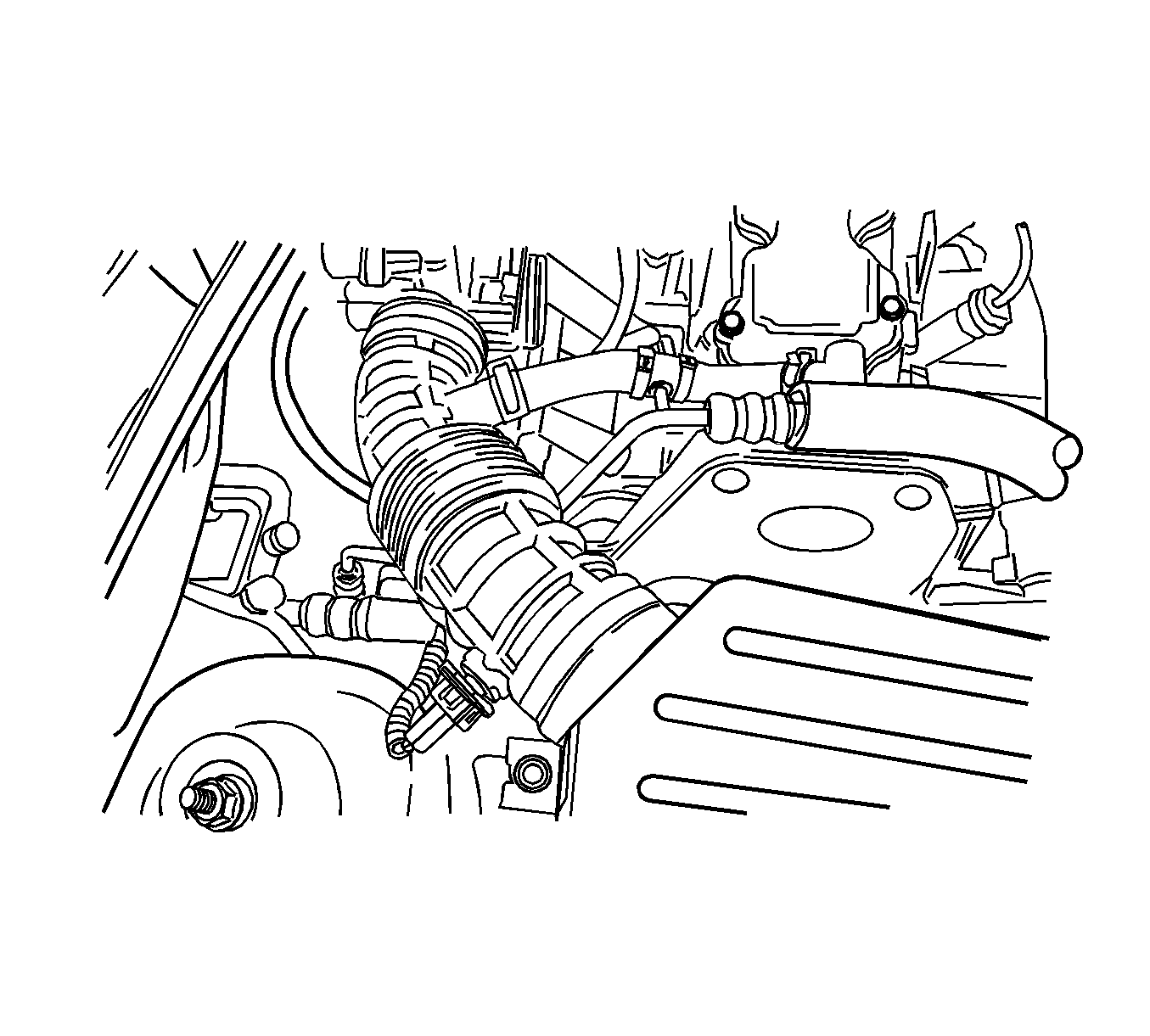

    Fig 1: View Of Valve Cover Breather Hose
    GM1241458Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the intake air temperature (IAT) sensor electrical connector from the air intake tube.
    3. Fig 2: Locating Intake Ducting To Engine
    GM1241530Courtesy of GENERAL MOTORS CORP.
  3. Remove the breather tube clamp and all other clamps to remove the air intake tube.

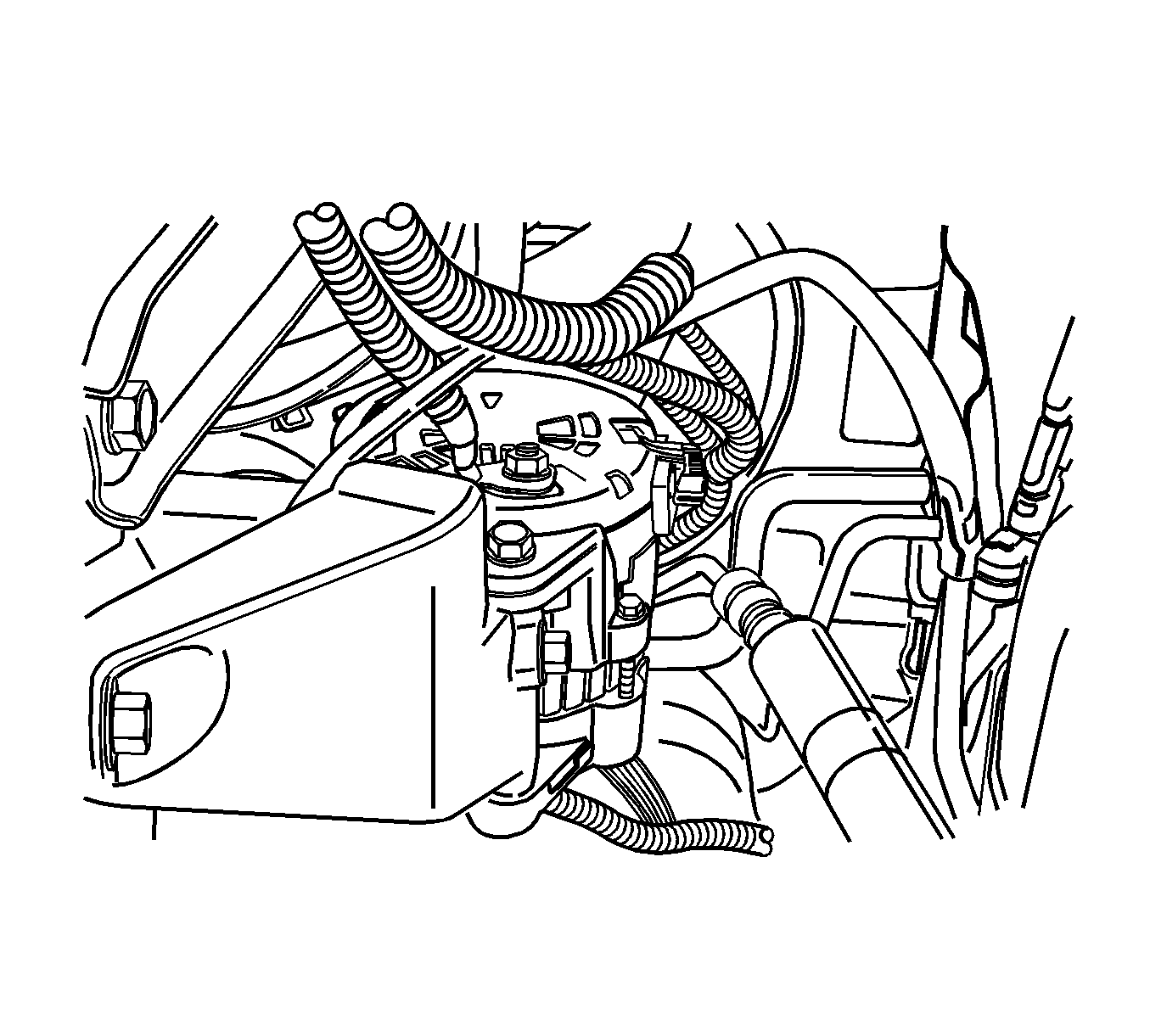

    4. Fig 3: View Of Generator Voltage Regulator
    GM1241861Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery harness connector nut from the generator.

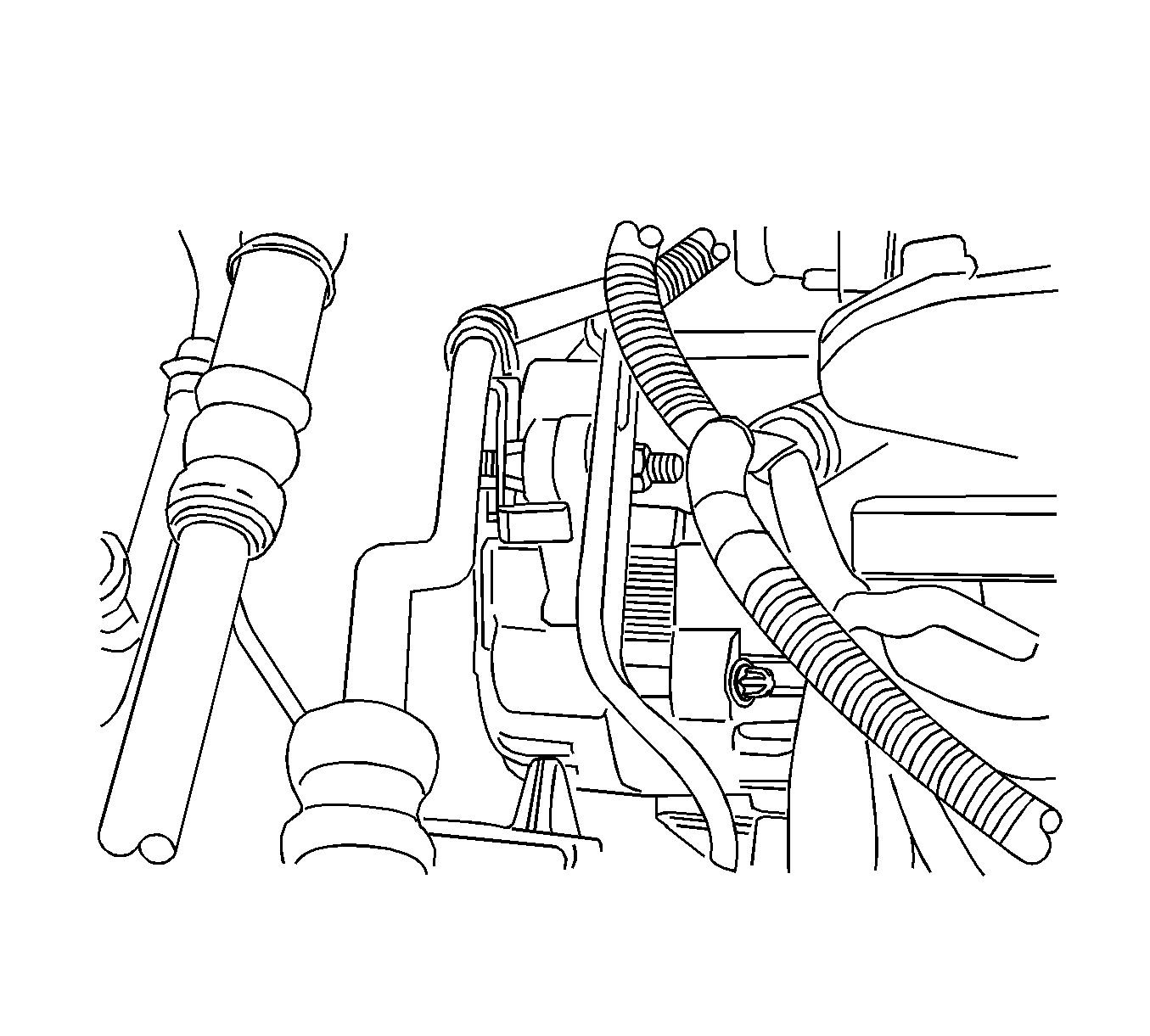

    5. Fig 4: View Of Alternator Bracket And Retaining Nut
    GM1241551Courtesy of GENERAL MOTORS CORP.
  5. Remove the generator shackle bracket bolt.

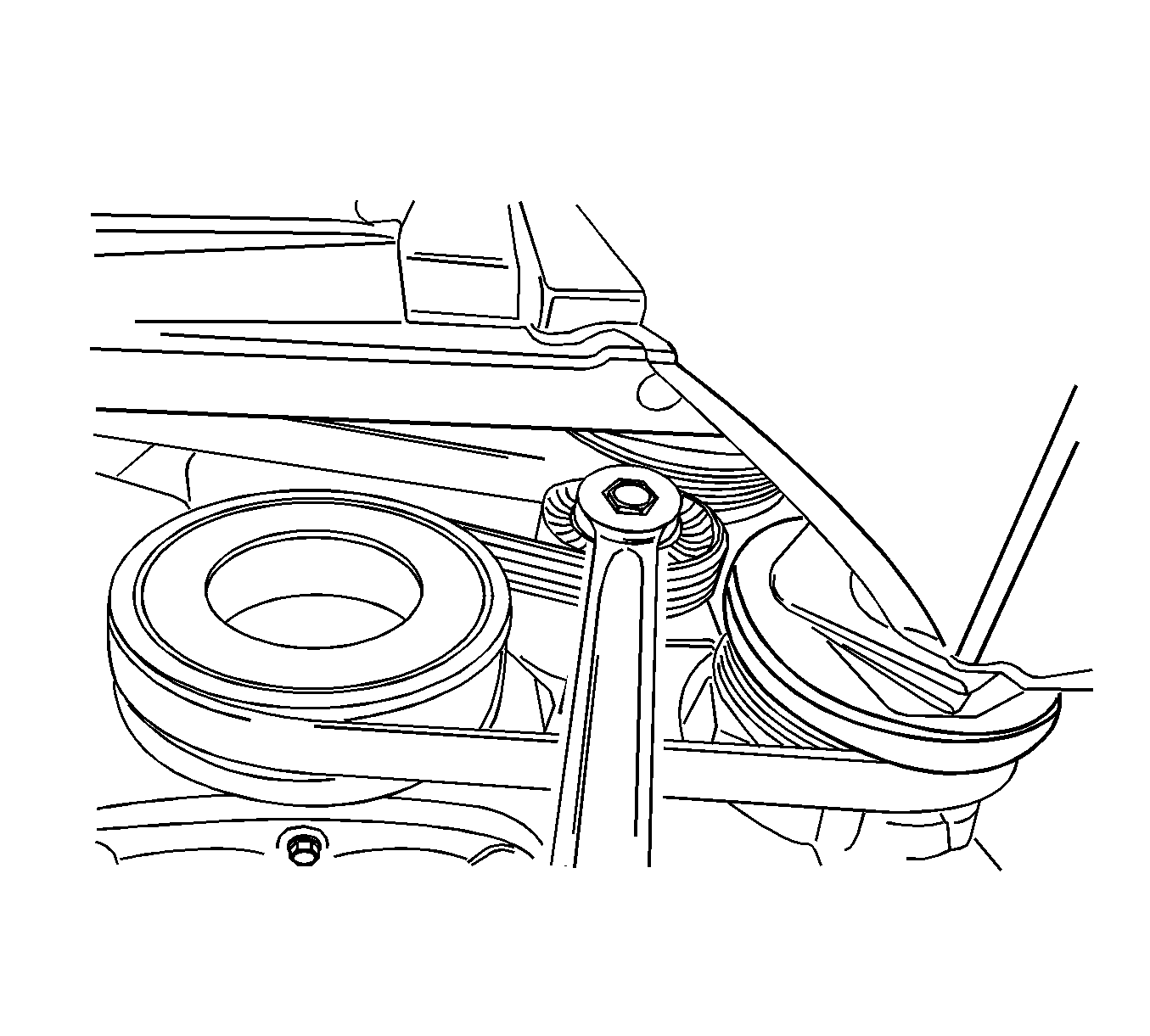

    6. Fig 5: View Of Serpentine Accessory Drive Belt Tensioner
    GM1241549Courtesy of GENERAL MOTORS CORP.
  6. Remove the serpentine accessory drive belt. For vehicles equipped with power steering and air conditioning. Refer to Power Steering Pump Drive Belt Replacement in Power Steering.

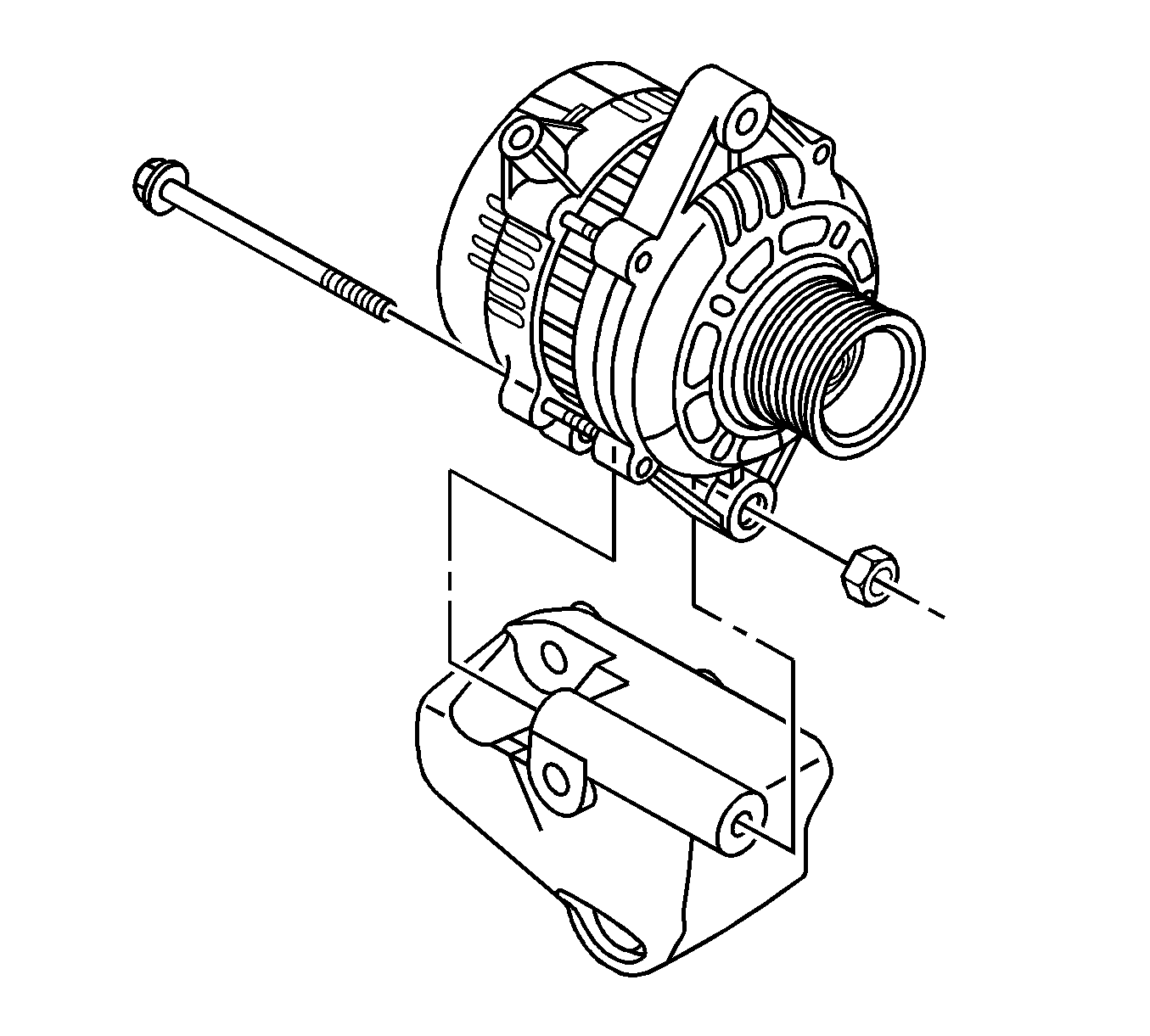

    7. Fig 6: Removing And Installing Generator, Nuts And Bracket-To-Generator Bolts
    GM1241862Courtesy of GENERAL MOTORS CORP.
  7. Remove the nuts which hold the generator lower bracket-to-generator bolts.
  8. Carefully remove the generator.
