Power Outlet Connectors

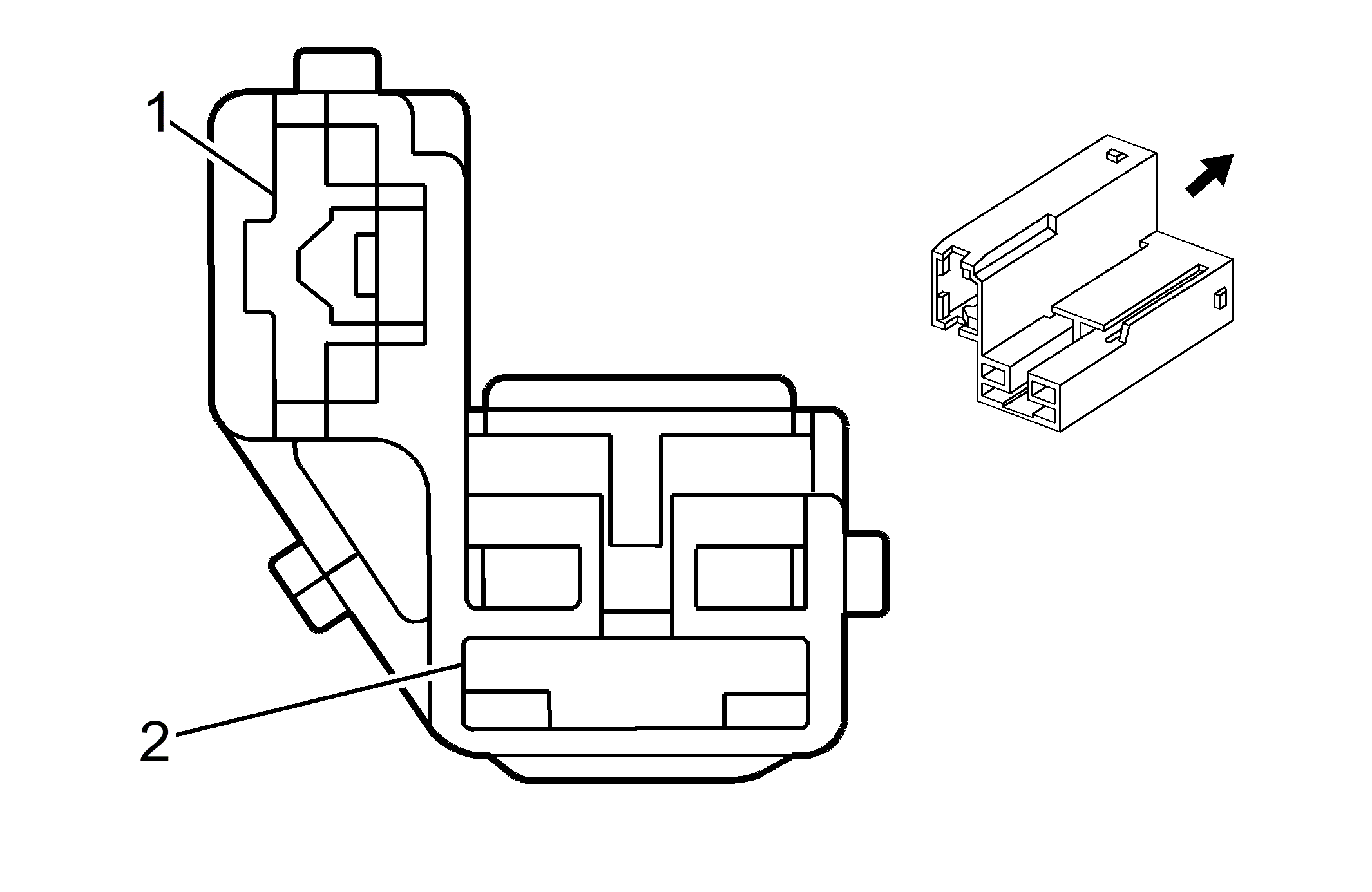

Auxiliary Power Outlet

GM1467075Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630685-5
  • 2-Way F 250 Series (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 BK 450 Ground
Cigar Lighter

GM1467075Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 630685-5
  • 2-Way F 250 Series (BK)
Pin Wire Color Circuit No. Function
1 OG 40 Battery Positive Voltage
2 BK 450 Ground
