Removal Procedure

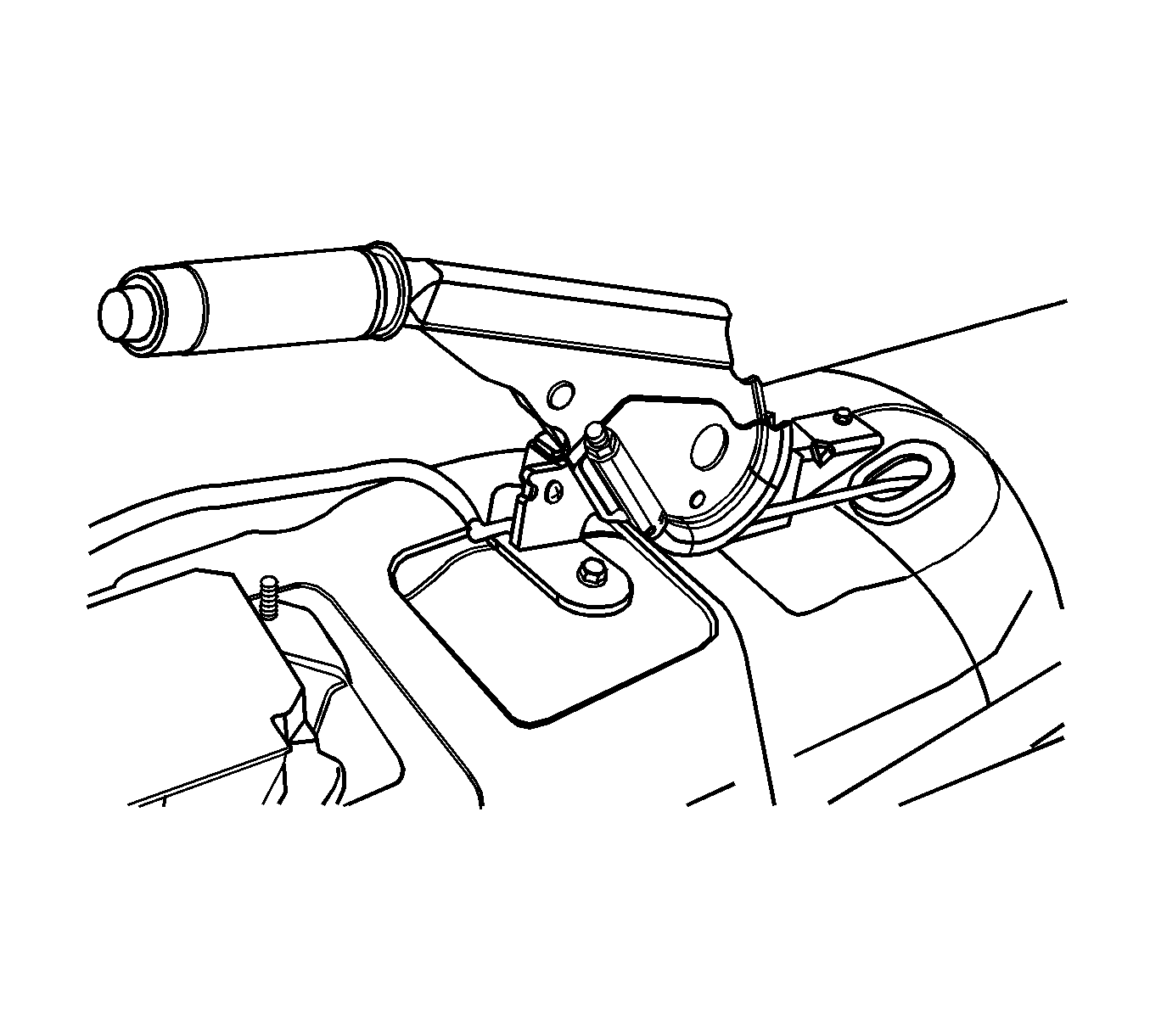

    Fig 1: View of Parking Brake Lever
    GM1252048Courtesy of GENERAL MOTORS CORP.
  1. Release the parking brake lever.
  2. Remove the rear wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
    3. Fig 2: View of Trailing Shoe and Lining Assembly Hold-Down Return Spring
    GM1245730Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining ring for the parking brake cable on each side of the vehicle.
  4. Remove the plastic sleeve.
  5. Remove the brake cable from the parking brake shoe lever and from the brake backing plate.
    6. Fig 3: View of Parking Brake Cable
    GM1252056Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts that fasten the brake cable to the holding bracket on the rear axle.
  7. Remove the bolts from the rear axle mounting bracket on each side of the vehicle.
  8. Remove the bolt that fastens the brake cable to the underbody side bracket on each side of the vehicle. Remove the cable.
    9. Fig 4: View of Parking Brake Cables On Welded Body Bracket
    GM1252055Courtesy of GENERAL MOTORS CORP.
  9. Remove the parking brake cables from the welded body bracket.
